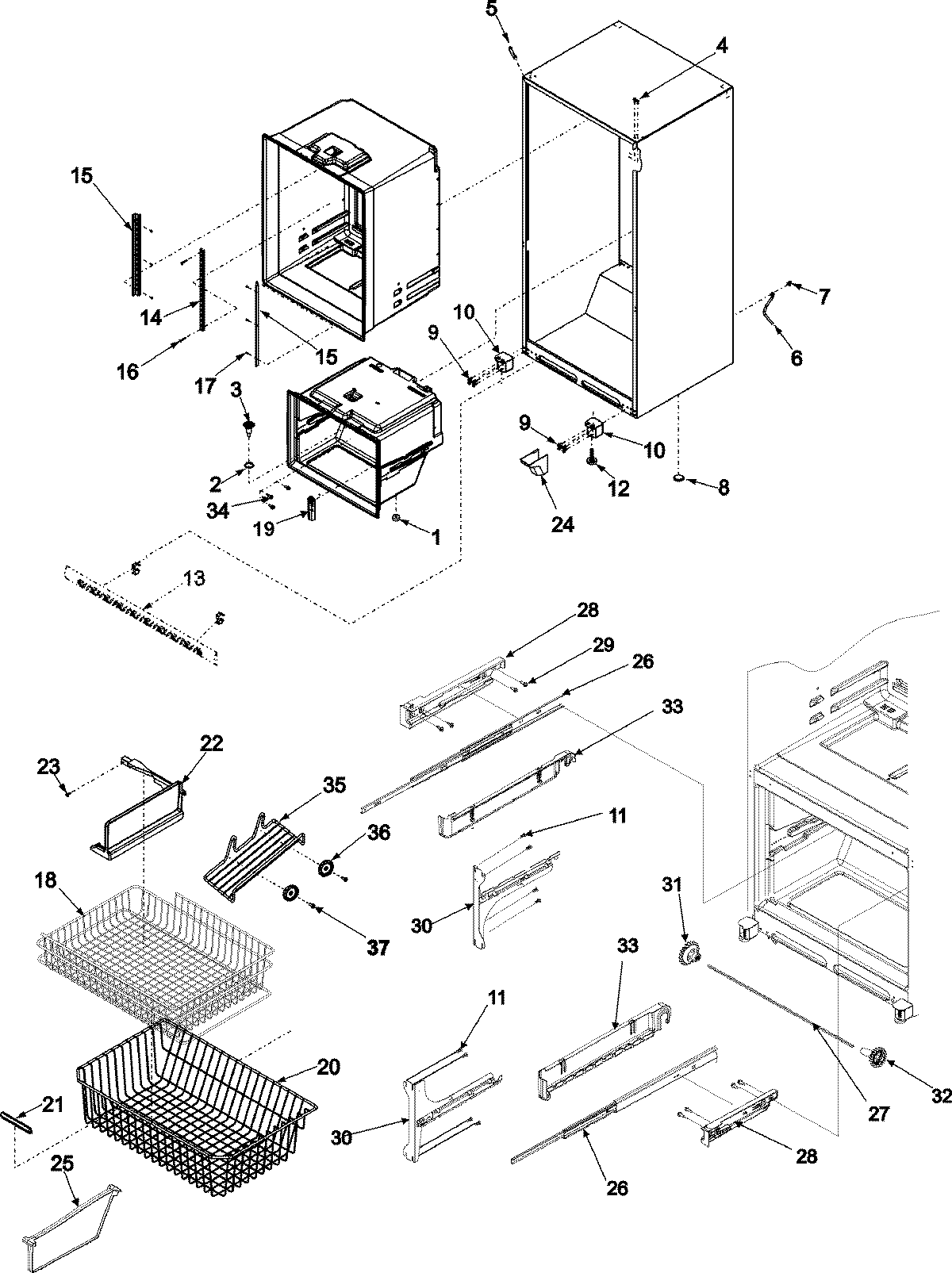

ABB1927DES 06 – INTERIOR CABINET & FREEZER SHELVING

ABB1927DES 06 – INTERIOR CABINET & FREEZER SHELVING

Written by

in

ABB1927DES 06 – INTERIOR CABINET & FREEZER SHELVING

Products

PositionProduct
1Gasket
2MAY M0500703
3MAY D7753903
4MAY A4539607
567003485 Whirlpool Refrigerator Corner Cover (Black)
6MAY 67001066
767001067 Whirlpool Refrigerator Drain Tube Clip
8A3076901 Whirlpool Refrigerator Plug
9MAY 67006564
9MAY 67003858
10HINGE, BOTTOM E-CT (BLK)
1012906303WD Whirlpool Refrigerator Bracket
11Screw (8)
11MAY M0211018
12MAY 10354001
13MAY 67002305
1467001073 Whirlpool Refrigerator Center Ladder
15MAY 67001302
16MAY M0231425
16MAY 67006400
17SCREW, SM
18MAY 67003381
19WP67003924 Whirlpool Refrigerator Cover
20W10503182 Whirlpool Refrigerator Freezer Basket
21HANDLE, BASKET/SHELF
22Divider, Upper Basket
23MAY 67001310
24Cover, Lw Hinge (Black)
25MAY 67004064
26MAY 67004065
27W10802329 Whirlpool Refrigerator Shaft
28MAY 67004010
28AMAY 67004011
29Screw (6)
29SCREW 1“
30BRACKET, DRAWER SLIDE (RT)
30BRACKET, DRAWER SLIDE (LT)
31MAY 67004066
32MAY 67004016
33AWPW10280608 Whirlpool Refrigerator Bracket
33WPW10280613 Whirlpool Refrigerator Bracket
34MAY M0238616
35Rack, Ice
36WP10972101 Whirlpool Refrigerator Spacer
37WP67006908 Whirlpool Refrigerator Screw
37MAY M0230919
