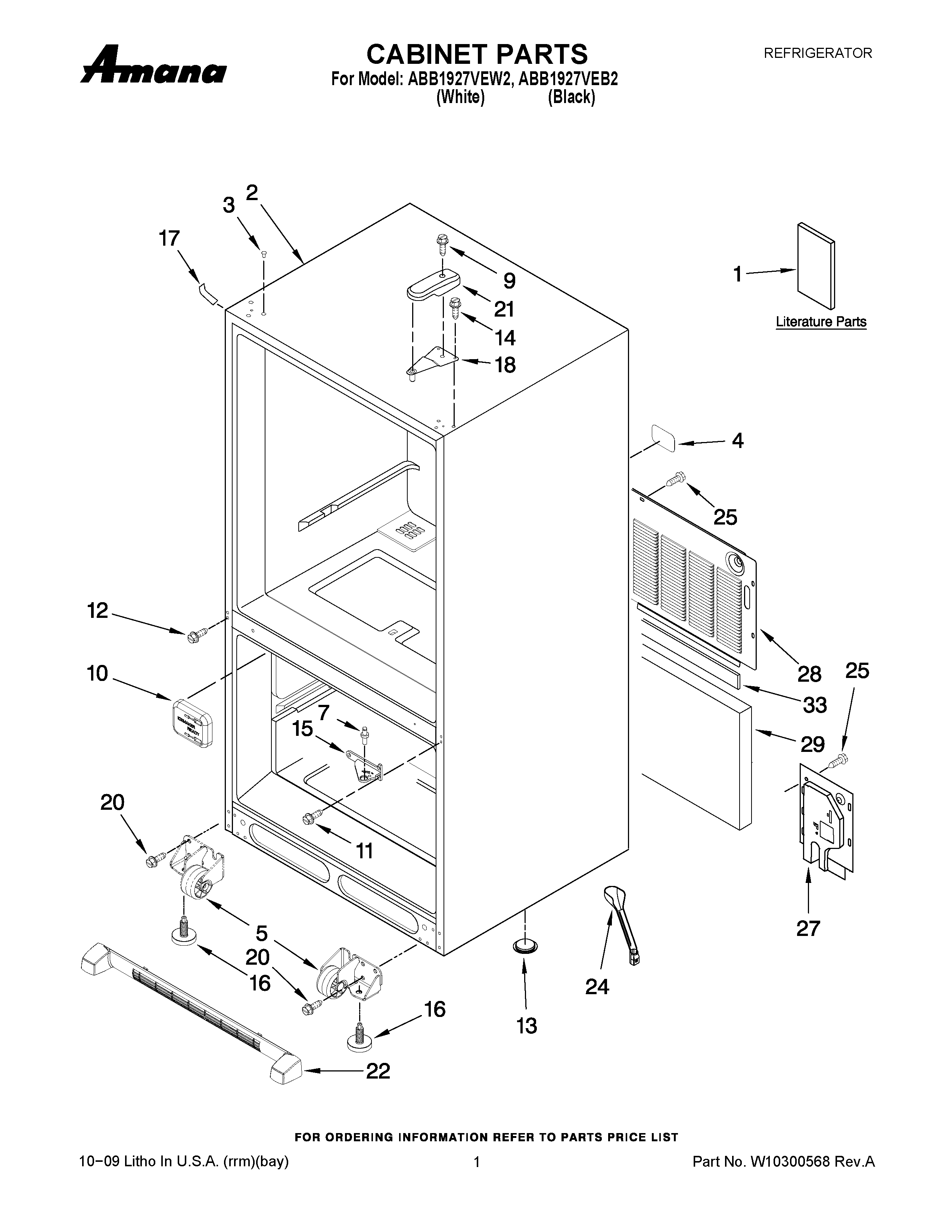

ABB1927VEB2 01 – CABINET PARTS

Products

Position	Product
1	MAY W10205984
1	MAY W10279329
1	MAY W10208785
2	LINER (NOT A SERVICEABLE PART)
3	MAY M0310731
3	MAY M0310729
4	LABEL-FILL TUBE
5	ROLLER ASSY. (FRONT) (LEFT)
5	ROLLER ASSY. (FRONT) (RIGHT)
7	MAY 10351006
9	MAY 12992602
10	COVER-FILL TUBE
11	SCREW (6)
12	Screw (8)
13	A3076901 Whirlpool Refrigerator Plug
14	SCREW (6)
15	MAY 12607103WD
15	MAY 12607104ED
16	Foot Brake (2)
17	Cover, Corner (2) (White)
17	COVER, CORNER (BLACK)
18	MAY 12566606ED
20	Screw (8)
21	COVER, HINGE(BLACK)
21	MAY 12477601W
22	Grille Assembly (Black)
22	Grille Assembly (White)
24	MAY W10210987
25	SCREW (10)
27	MAY W10217701
28	MAY W10210978
29	Insulation, Sound
33	MAY B5759655
