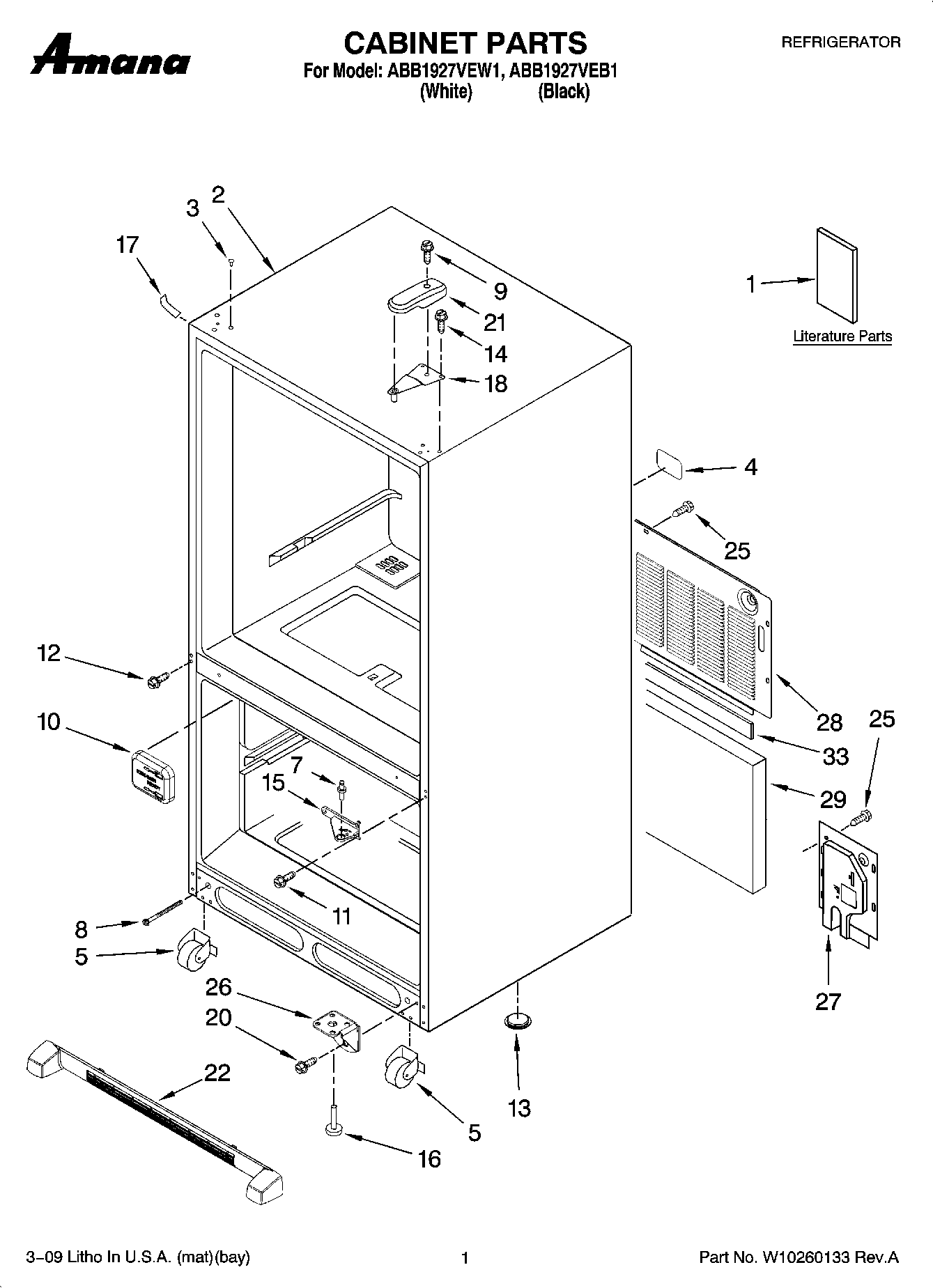

ABB1927VEW1 01 – CABINET PARTS

Products

Position	Product
1	MAY W10205984
1	MAY W10238840
1	MAY W10208785
3	MAY M0310729
3	MAY M0310731
4	LABEL-FILL TUBE
5	ROLLER ASSY.(REAR)
7	MAY 10351006
8	Bolt, Adjusting (Rear)
9	MAY 12992602
10	COVER-FILL TUBE
11	SCREW (6)
12	Screw (8)
13	A3076901 Whirlpool Refrigerator Plug
14	SCREW (6)
15	MAY 12607103WD
15	MAY 12607103ED
16	Foot Brake (2)
17	COVER, CORNER (BLACK)
17	Cover, Corner (2) (White)
18	MAY 12566606ED
20	Screw (8)
21	MAY 12477601W
21	COVER, HINGE(BLACK)
22	Grille Assembly (Black)
22	Grille Assembly (White)
25	SCREW (10)
26	Bracket, Foot
27	MAY W10217701
28	MAY W10210978
29	Insulation, Sound
33	MAY B5759655
