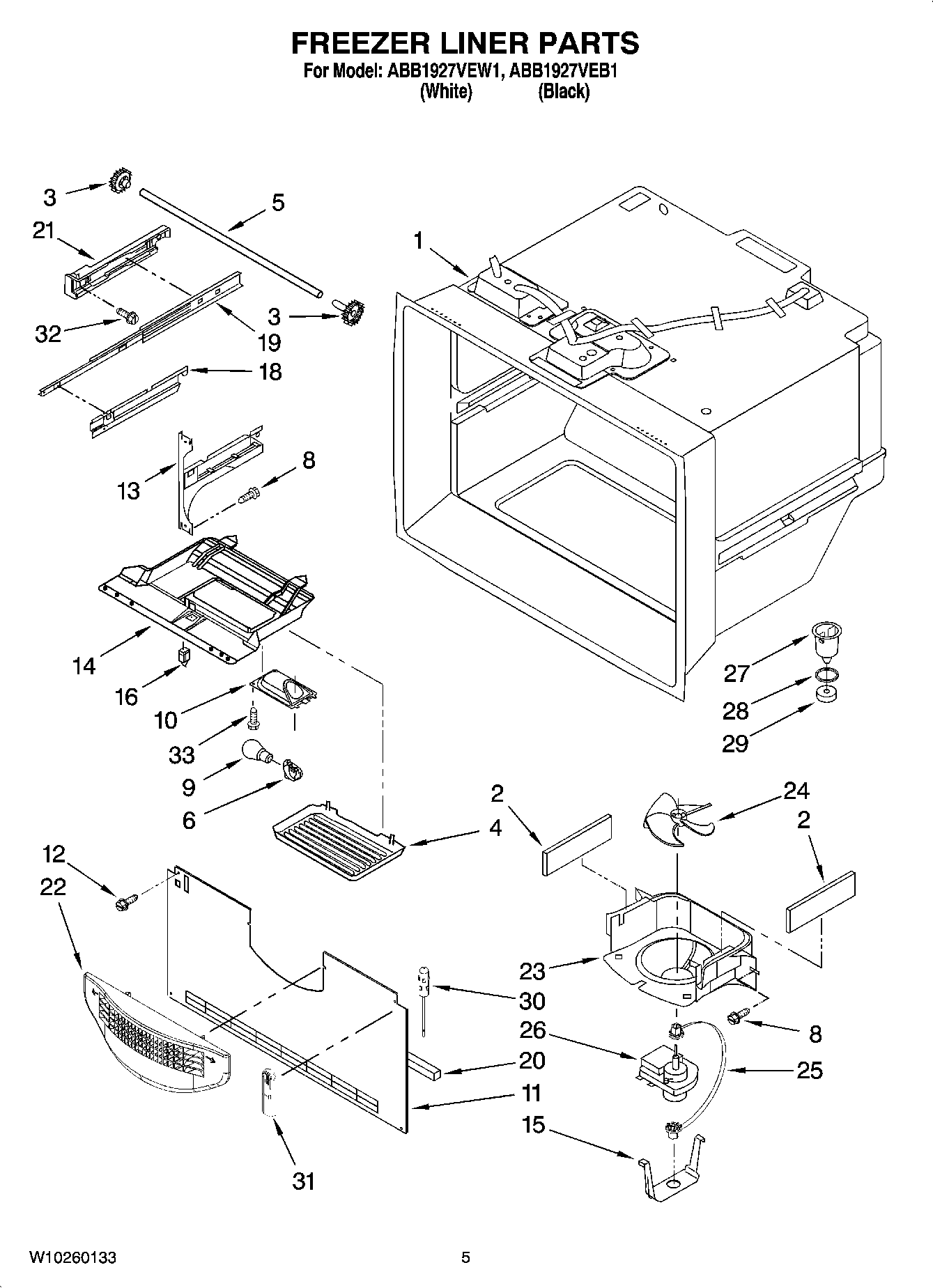

ABB1927VEW1 03 – FREEZER LINER PARTSadmin2025-04-26T08:55:55+00:00ABB1927VEW1 03 – FREEZER LINER PARTS
Products
| Position | Product |
|---|
| NI | MAY 13014801 |
| 2 | Gasket, Bottom |
| 3 | 12002497 Whirlpool Refrigerator Drawer Gear Kit |
| 4 | MAY 12804901 |
| 5 | SHAFT-RACK |
| 6 | Socket, Light |
| 8 | Screw (8) |
| 9 | Bulb, Light (2) |
| 10 | MAY 12476401V |
| 11 | MAY 12226110 |
| 12 | SCREW (10) |
| 13 | BRACKET, DOOR (RIGHT) |
| 13 | BRACKET, DOOR (LEFT) |
| 14 | MODULE, FZ CONTROL |
| 15 | MAY 10623002 |
| 16 | MAY 12466105 |
| 18 | Bracket, Basket (Right) |
| 18 | Bracket, Basket (Left) |
| 19 | MAY W10120018 |
| 20 | Gasket, Bottom |
| 21 | MAY W10149391 |
| 21 | MAY W10149390 |
| 22 | Grille, Fz Air |
| 23 | SHROUD, EVAP.FAN |
| 24 | Blade, Fan (Evaporator) |
| 25 | MAY W10121318 |
| 26 | MAY W10128551 |
| 27 | MAY D7753903 |
| 28 | MAY M0500703 |
| 29 | Gasket |
| 30 | 12002355 Whirlpool Refrigerator Thermistor Kit |
| 31 | MAY 12815301 |
| 32 | Screw (6) |
| 33 | MAY 12991603V |
