ABB192ZDEB 08 – REFRIGERATOR DOOR

ABB192ZDEB 08 – REFRIGERATOR DOOR

Written by

in

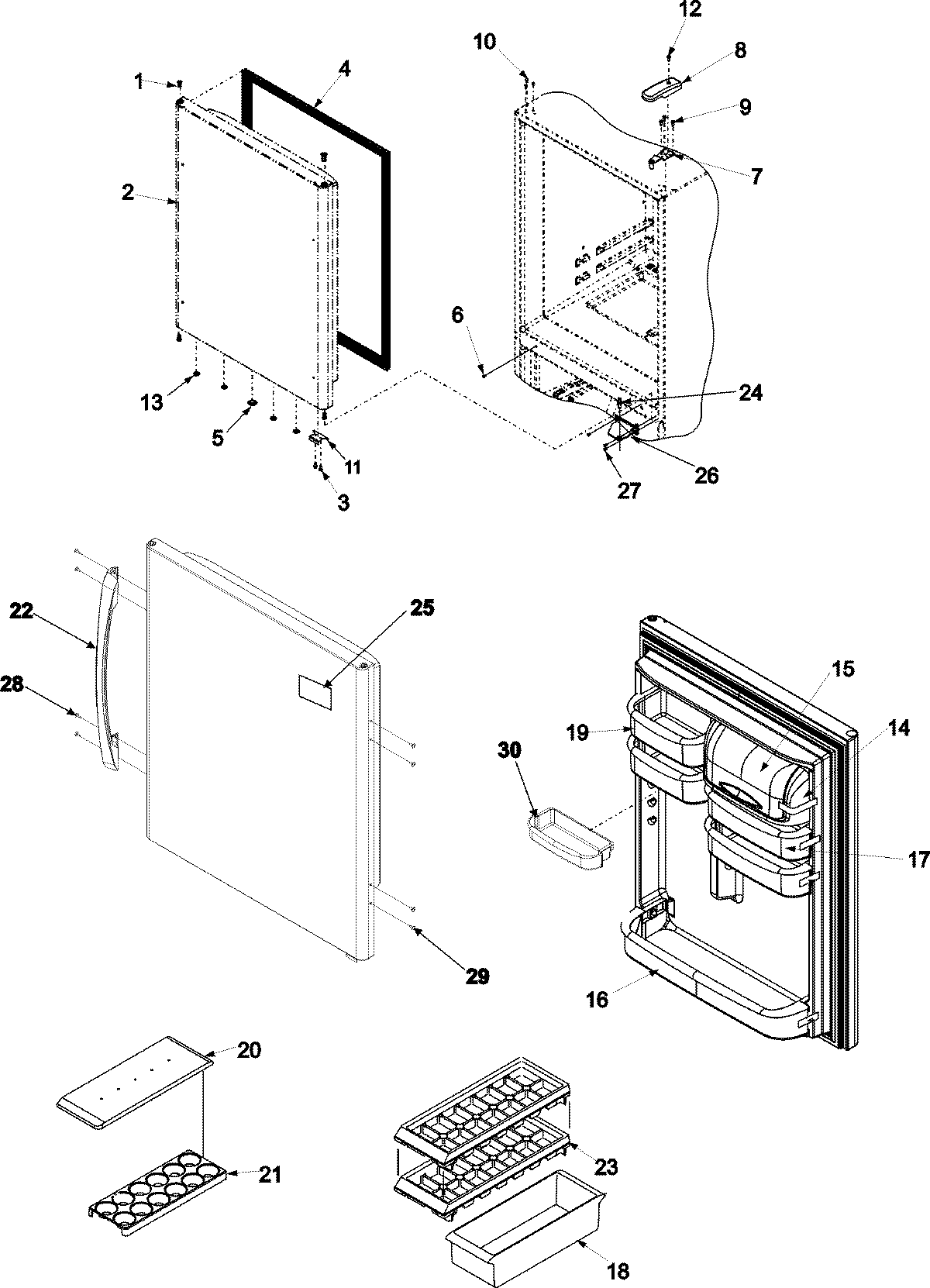

ABB192ZDEB 08 – REFRIGERATOR DOOR

Products

PositionProduct
167004978 Whirlpool Refrigerator Black Door Bushing
2Refrigerator Door (w/ Insulation) (Black)
3MAY M0211533
4Gasket, Door Magnetic (Black)
4WPW10436245 Whirlpool Refrigerator FIP Gasket
5MAY A3080001
6Screw (8)
7Hinge, Top
7WP12566606ED Whirlpool Refrigerator Door Hinge
867001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
9WP489349 Whirlpool Refrigerator Screw
9MAY M0238731
10MAY M0310731
11W11708403 Whirlpool Door Stop
12WP8281196 Whirlpool Screw
1367004838 Whirlpool Refrigerator Button Vent Plug
14WP67001279 Whirlpool Refrigerator Dairy Tray
15WP12744905 Whirlpool Refrigerator Compressor Door
1667001139 Whirlpool Refrigerator Shelf Trim
17WP67001021 Whirlpool Refrigerator Bucket
18MAY 10423131
1967001141 Whirlpool Refrigerator Small Bucket Door
20MAY 10436404
21MAY 10436506
22HANDLE, SIDE MOUNT (BLK)
23MAY 67001205
24MAY 10351001
25Y12528501 Whirlpool Refrigerator Nameplate
26MAY M0274062
26WP12607104ED Whirlpool Refrigerator Door Hinge
27WP67006380 Whirlpool Screw
27MAY M0226233
28SCREW (BLK)
2867006806 Whirlpool Refrigerator Screw HI Torque Black
29WP12246608 Whirlpool Refrigerator Button
29WP12246610 Whirlpool Refrigerator Handle Plug
