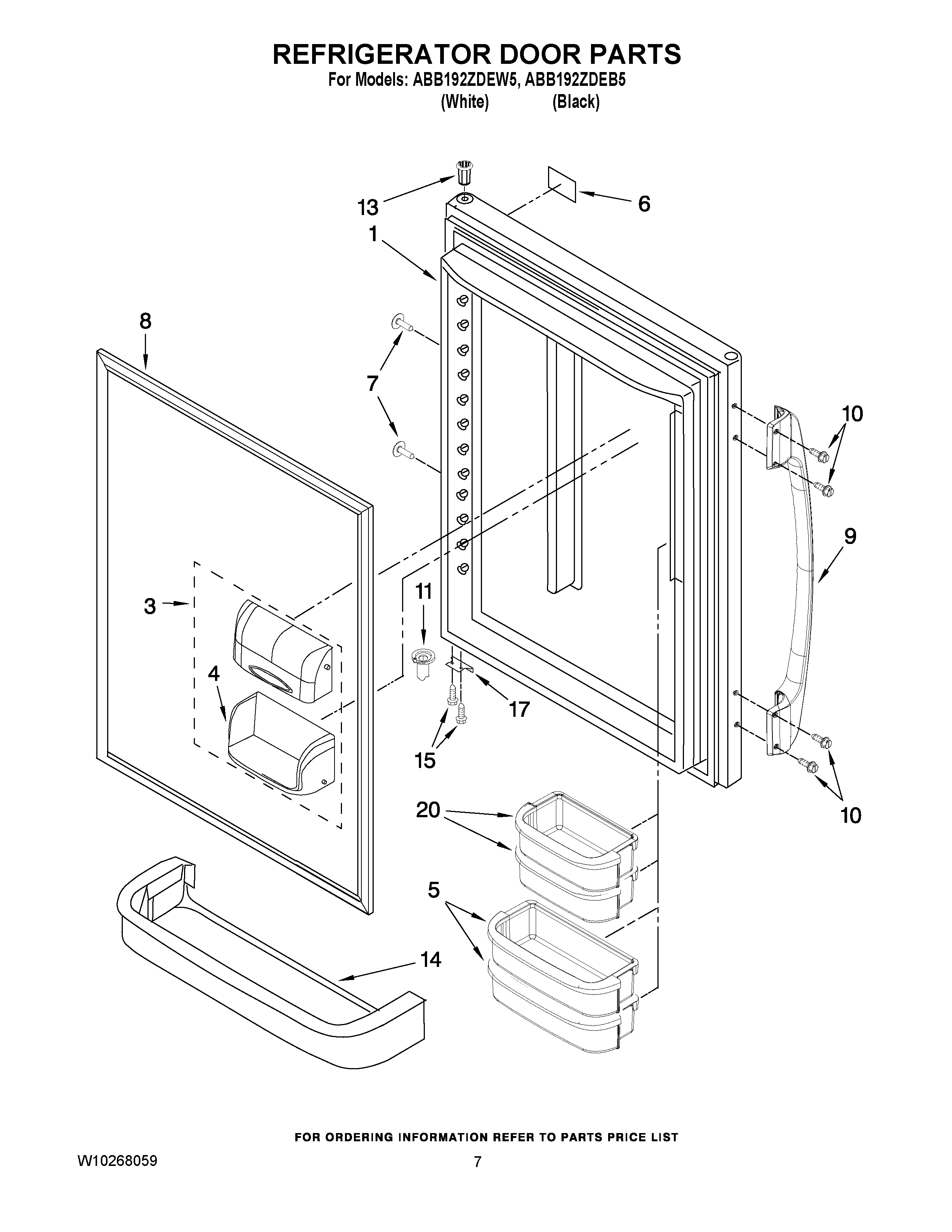

ABB192ZDEB5 04 – REFRIGERATOR DOOR PARTS

ABB192ZDEB5 04 – REFRIGERATOR DOOR PARTS

Written by

in

ABB192ZDEB5 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (WHITE)
1REFRIGERATOR DOOR (BLACK)
3MAY 12744905
4MAY 12369502
5BUCKET, MEDIUM (2)
6STAINLESS
7MAY 12991103
7Screw,Handle Hole (Black)
8MAY W10164030
8Gasket, Door Magnetic (Black)
9MAY 12845806B
9MAY 12845806W
10Screw
11MAY 12028505B
11MAY 12028505W
13BUSHING, DOOR UPPER RIGHT (WHITE)
13Bushing (Black)
14MAY 12557904
15MAY 12990504
17Stop, Door (Black)
17MAY 10447111
20BUCKET, SMALL
