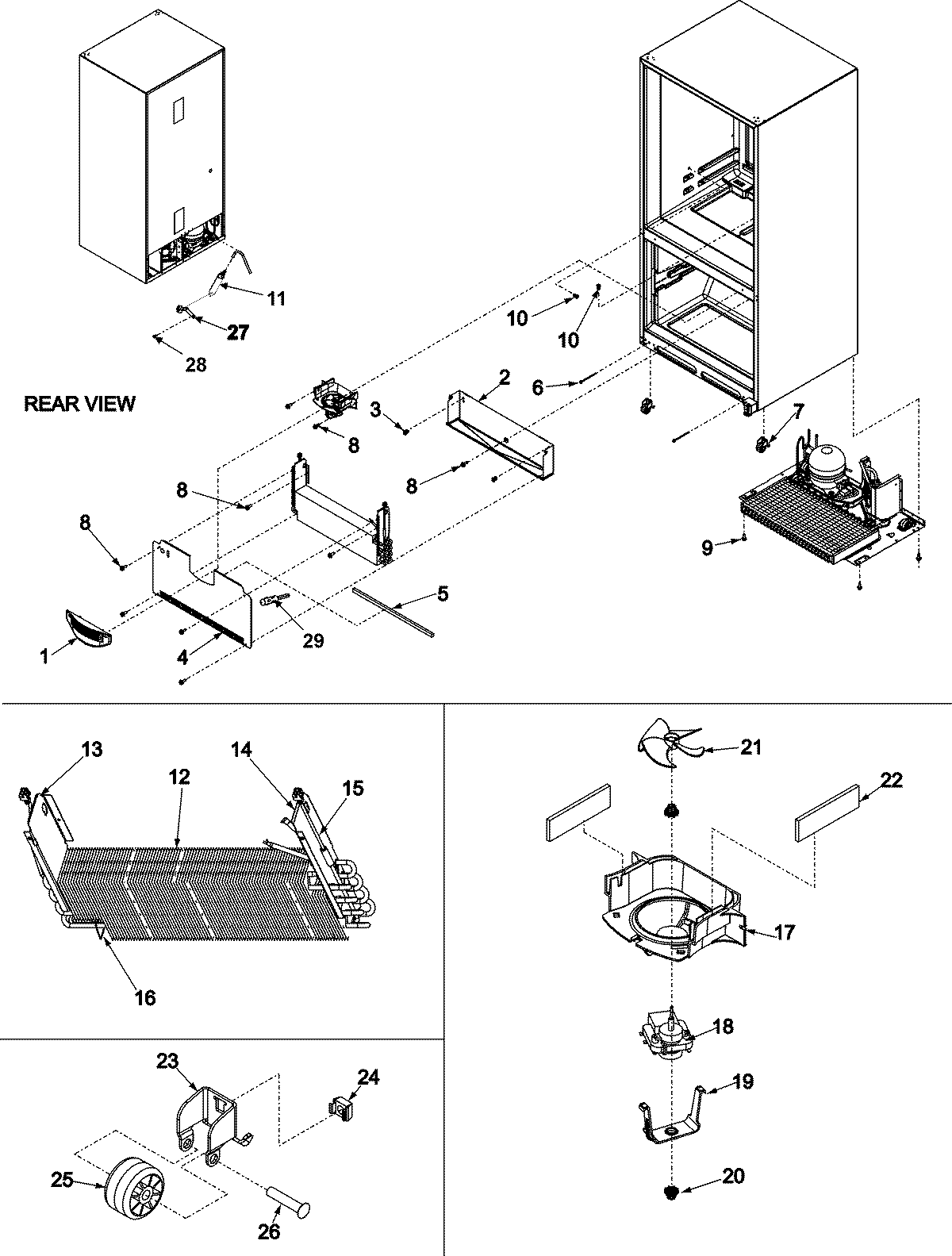

ABB192ZDEQ 04 – EVAPORATOR AREA & ROLLERS

Products

Position	Product
NI	MAY 67003931
NI	12001937 Whirlpool Refrigerator 42-Degree Defrost Thermostat
NI	WP67003426 Whirlpool Refrigerator Thermostat
1	WPW10175909 Whirlpool Grille Assembly
2	MAY 67001133
3	MAY 10623002
4	MAY 67005871
4	MAY 67003930
5	GASKET
6	71003131 Whirlpool Oven Screw
7	ROLLER BRACKET ASSY
8	MAY M0238616
8	Screw (10)
9	Screw (4)
9	MAY M0260242
10	MAY M0580205
11	DRIER
12	Evaporator
13	MAY 67001083
14	MAY 67001084
15	WP67002135 Whirlpool Refrigerator Defrost Heater
16	W11673433 Whirlpool Clip
18	WPW10128551 Whirlpool Evaporator Fan Motor
19	WP67005633 Whirlpool Refrigerator Bracket
20	WP67002780 Whirlpool Refrigerator Grommet
21	MAY 12217201
22	W10856123 Whirlpool Refrigerator Gasket
23	12456801V Whirlpool Refrigerator Bracket
24	MAY M0286708
25	MAY 10450602
26	MAY M1205302
27	MAY 10547002
28	MAY 67002525
28	SCREW
29	12002355 Whirlpool Refrigerator Thermistor Kit
