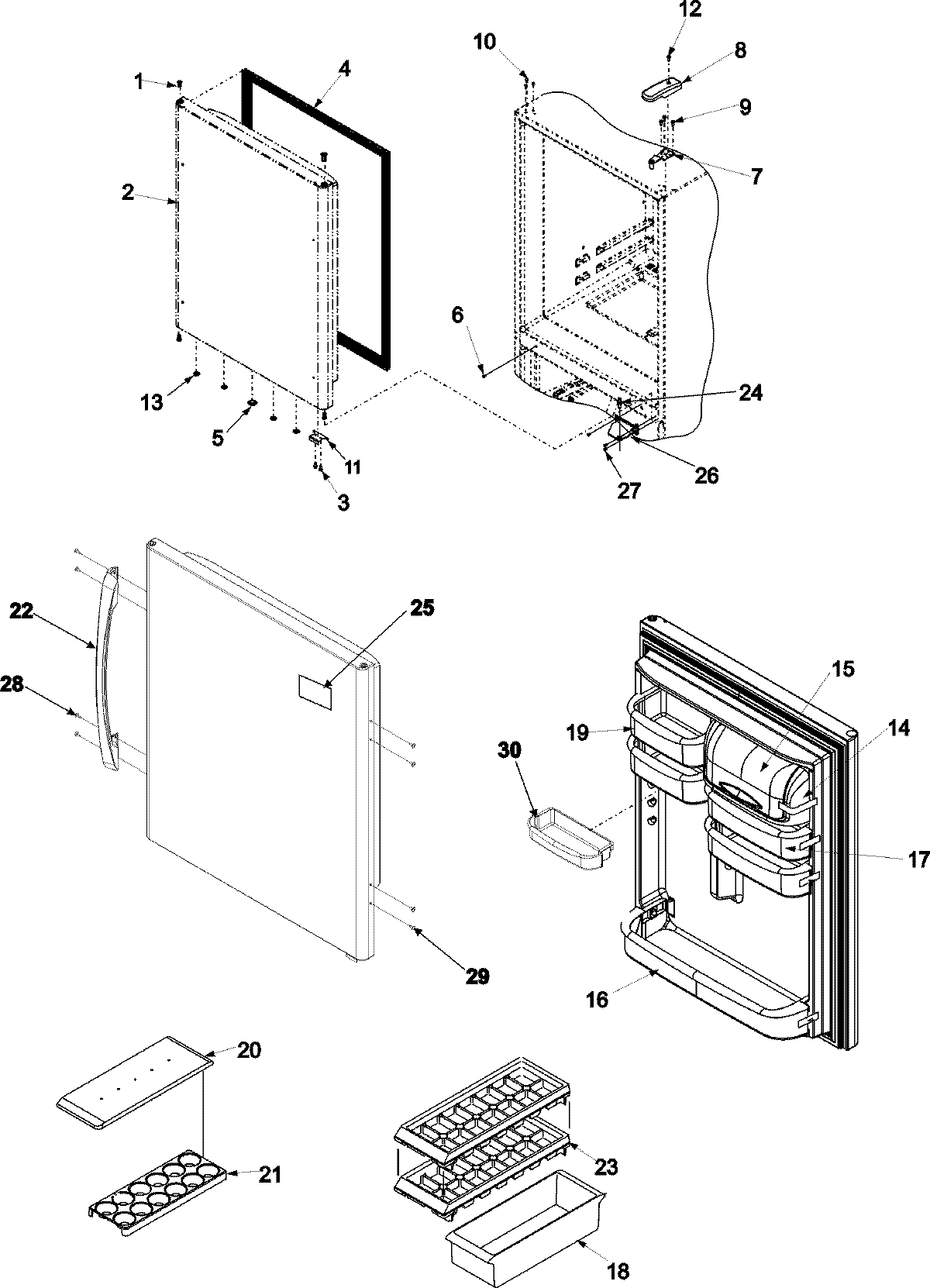

ABB192ZDEW 08 – REFRIGERATOR DOOR

ABB192ZDEW 08 – REFRIGERATOR DOOR

Written by

in

ABB192ZDEW 08 – REFRIGERATOR DOOR

Products

PositionProduct
1WP67004977 Whirlpool Refrigerator Door Hinge Bushing
2Refrigerator Door (w/ Insulation) (White)
3MAY M0211533
4Gasket, Door Magnetic (White)
4WPW10443309 Whirlpool Refrigerator Door Gasket
5MAY A3080002
6Screw (8)
7WP12566606ED Whirlpool Refrigerator Door Hinge
7Hinge, Top
867001014 Whirlpool Refrigerator Top Hinge Cover White
9MAY M0238731
9WP489349 Whirlpool Refrigerator Screw
10MAY M0310729
1112968202W Whirlpool Refrigerator Door Stop
12WP8281196 Whirlpool Screw
1310712401 Whirlpool Refrigerator Vent Plug (White)
14WP67001279 Whirlpool Refrigerator Dairy Tray
15WP12744905 Whirlpool Refrigerator Compressor Door
1667001139 Whirlpool Refrigerator Shelf Trim
17WP67001021 Whirlpool Refrigerator Bucket
18MAY 10423131
1967001141 Whirlpool Refrigerator Small Bucket Door
20MAY 10436404
21MAY 10436506
22MAY 67006721
23MAY 67001205
24MAY 10351001
25Y12528501 Whirlpool Refrigerator Nameplate
26WP12607103WD Whirlpool Refrigerator Center Hinge
26WP12607104ED Whirlpool Refrigerator Door Hinge
27MAY M0226233
27WP67006380 Whirlpool Screw
28SCREW (BLK)
28MAY 67004837
29WP12246608 Whirlpool Refrigerator Button
2967006806 Whirlpool Refrigerator Screw HI Torque Black
29WP12246610 Whirlpool Refrigerator Handle Plug
