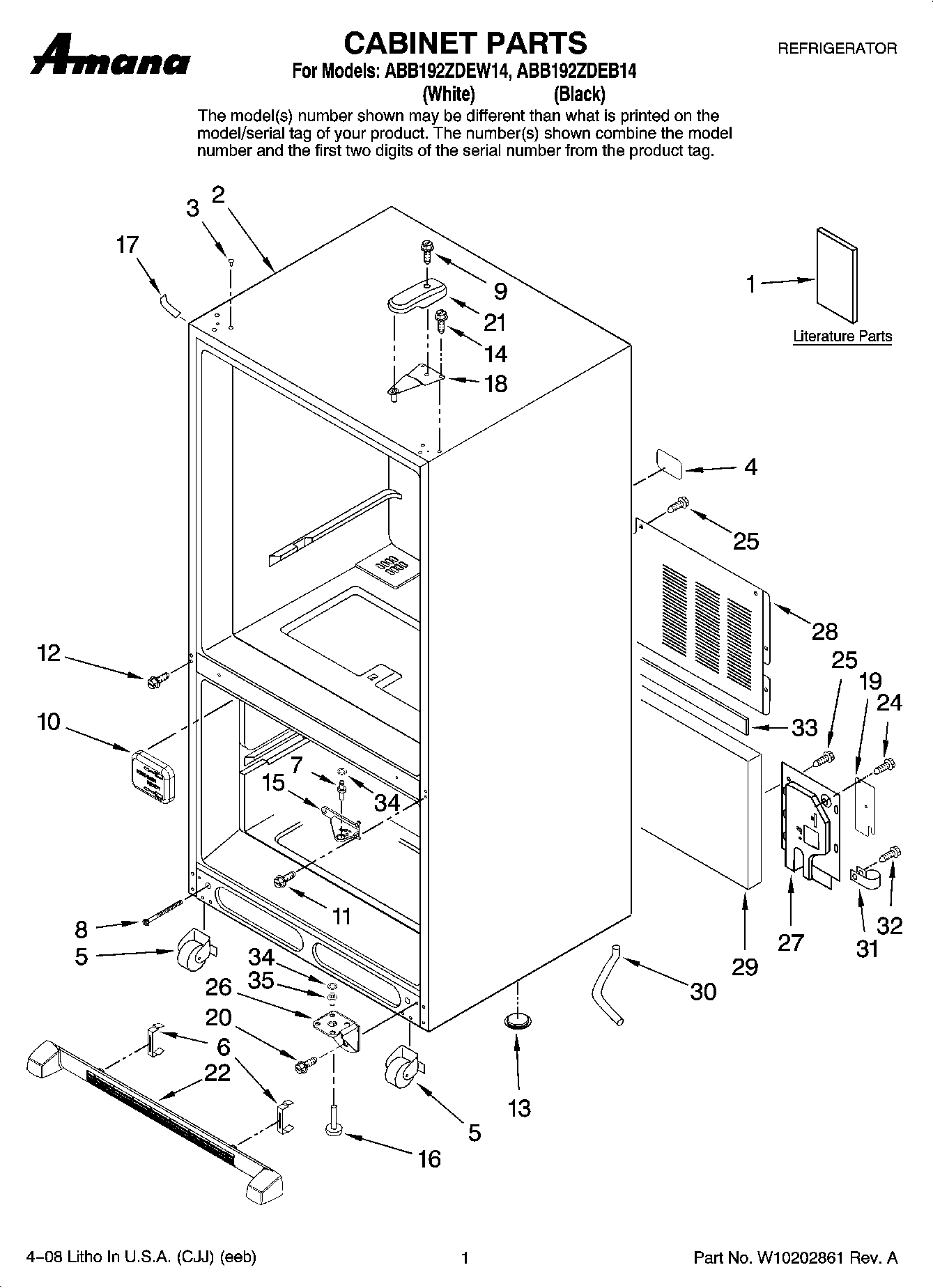

ABB192ZDEW14 01 – CABINET PARTS

Products

Position	Product
1	MAY W10183294
1	MAY W10165418
1	MAY W10175445
3	WP12246608 Whirlpool Refrigerator Button
3	WP67001130 Whirlpool Refrigerator White Button Plug
4	MAY 67005064
5	Roller Assy.(Rear)
6	Clip, Grille
7	WP67006744 Whirlpool Refrigerator Center Pin
8	71003131 Whirlpool Oven Screw
9	WP8281196 Whirlpool Screw
10	WP67001098 Whirlpool Refrigerator Tube Cover
12	WP67006380 Whirlpool Screw
13	A3076901 Whirlpool Refrigerator Plug
14	WP489349 Whirlpool Refrigerator Screw
15	WP12607104ED Whirlpool Refrigerator Door Hinge
15	WP12607103WD Whirlpool Refrigerator Center Hinge
16	W11177593 Whirlpool Leveling Feet
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
17	67003484 Whirlpool Refrigerator White Corner Cover
18	Hinge, Top
19	MAY 12479901
20	MAY 67006564
21	67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
21	67001014 Whirlpool Refrigerator Top Hinge Cover White
22	Grille Assembly (Includes Clips) (White)
22	Grille Assembly (Includes Clips) (Black)
24	MAY 67006662
25	Screw (10)
26	MAY 67001068
26	12465002WD Whirlpool Refrigerator Bottom Hinge
27	MAY 67001173
28	MAY 67006101
29	67003796 Whirlpool Refrigerator Fiber Acoustic
30	MAY W10164397
31	MAY W10157973
32	SCREW
33	Gasket
34	MAY M0274057
34	MAY M0274062
35	67007018 Whirlpool Refrigerator Bottom Hinge PIN
