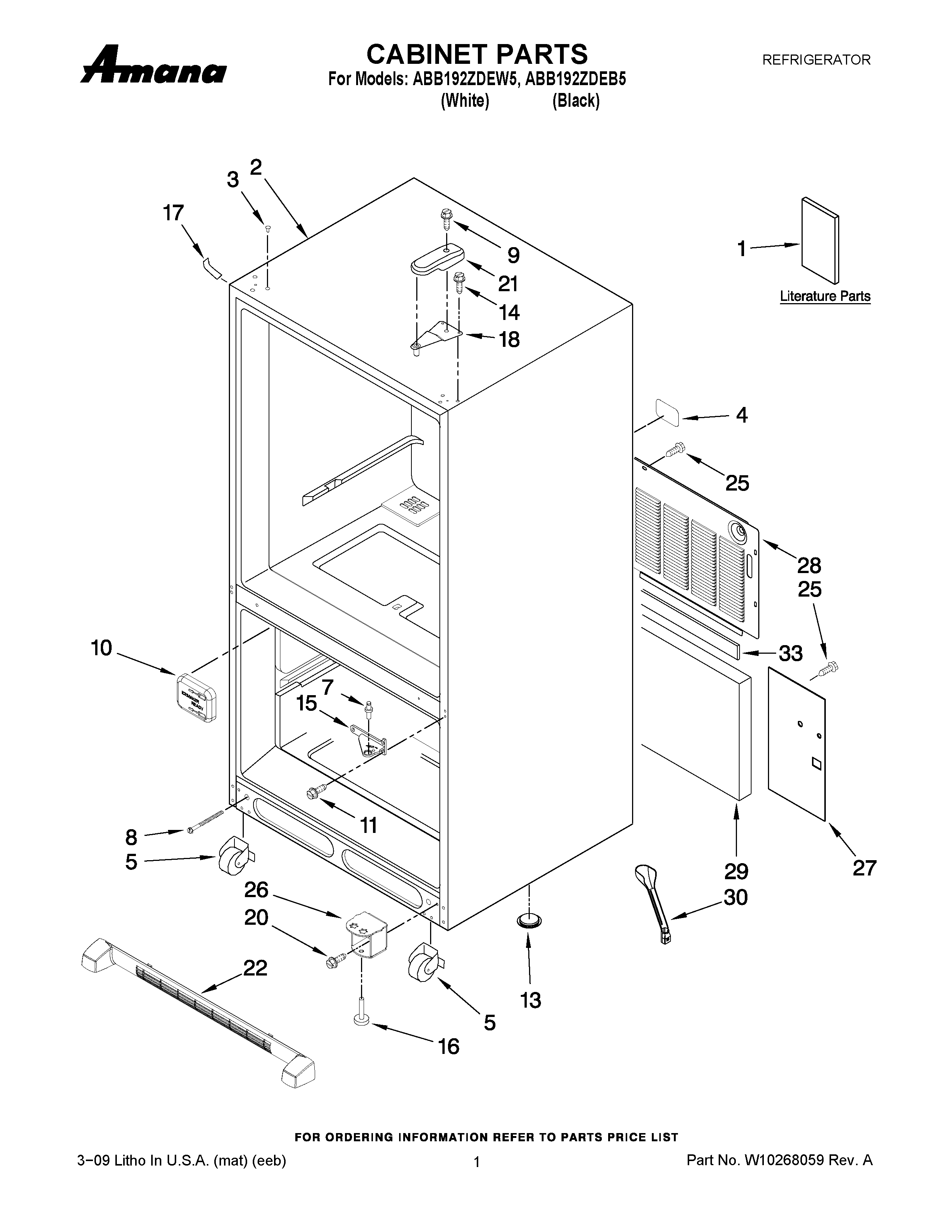

ABB192ZDEW5 01 – CABINET PARTS

Products

Position	Product
1	MAY W10238840
1	MAY W10183294
1	MAY W10175445
3	MAY M0310729
3	MAY M0310731
4	LABEL-FILL TUBE
5	ROLLER ASSY.(REAR)
7	PIN, CENTER HINGE (REAR)
8	Bolt, Adjusting (Rear)
9	MAY 12992602
10	COVER-FILL TUBE
11	SCREW (6)
13	A3076901 Whirlpool Refrigerator Plug
14	SCREW (6)
15	MAY 12607103ED
15	MAY 12607103WD
16	Foot Brake (2)
17	COVER, CORNER (BLACK)
17	Cover, Corner (2) (White)
18	MAY 12566606ED
20	Screw (8)
21	COVER, HINGE(BLACK)
21	MAY 12477601W
22	Grille Assembly (Includes Clips) (Black)
22	Grille Assembly (Includes Clips) (White)
25	SCREW (10)
26	MAY 12465002WD
27	MAY W10217701
28	MAY W10210978
29	Insulation, Sound
30	MAY W10210987
33	MAY B5759655
