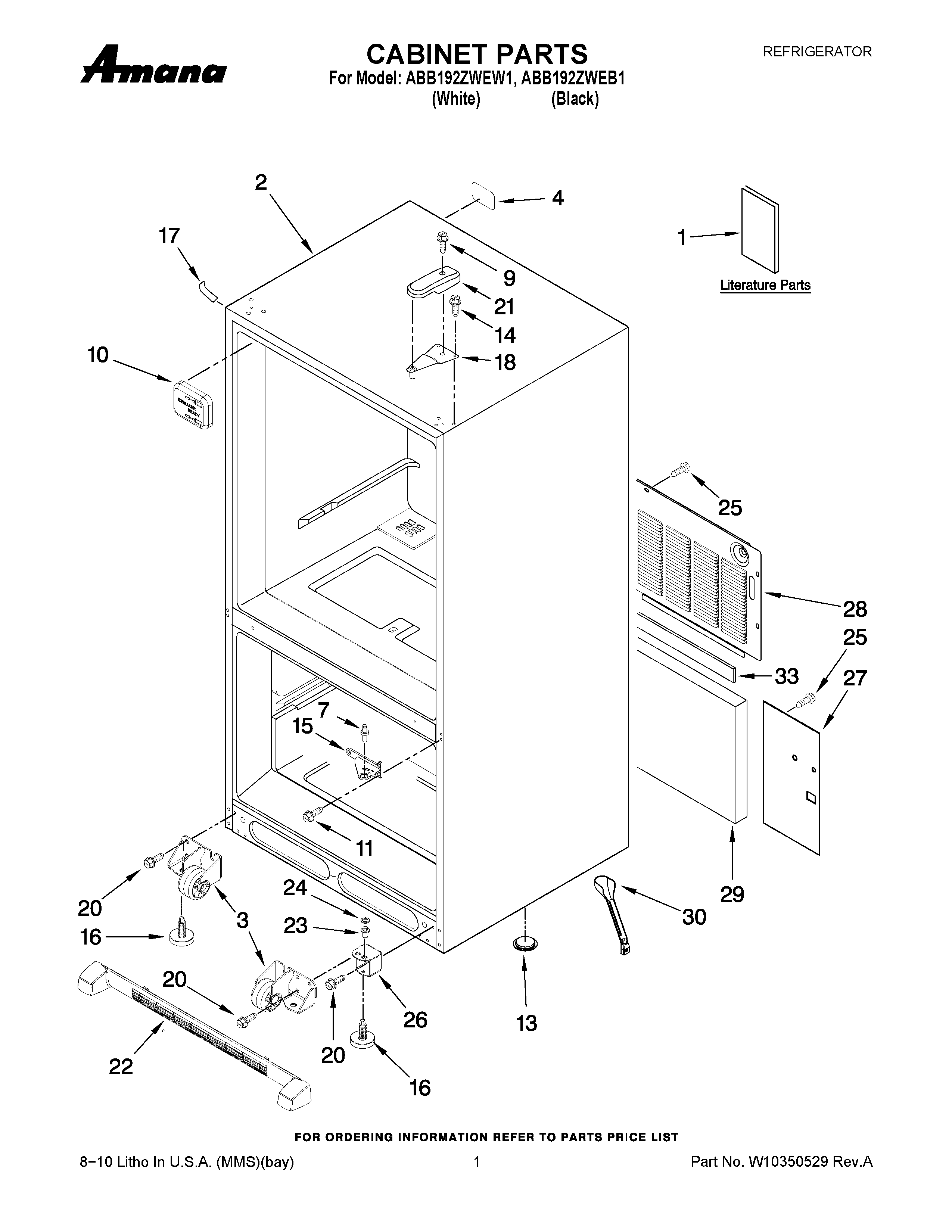

ABB192ZWEW1 01 – CABINET PARTS

Products

Position	Product
1	MAY W10299189
1	MAY W10322959
1	MAY W10208785
2	LINER (NOT A SERVICEABLE PART)
3	ROLLER ASSY. (FRONT) (LEFT)
3	ROLLER ASSY. (FRONT) (RIGHT)
4	LABEL-FILL TUBE
7	PIN, CENTER HINGE (REAR)
9	MAY 12992602
10	COVER-FILL TUBE
11	SCREW (6)
13	A3076901 Whirlpool Refrigerator Plug
14	SCREW (6)
15	MAY 12607103WD
15	MAY 12607104ED
16	Brake, Foot
17	COVER, CORNER (BLACK)
17	Cover, Corner (2) (White)
18	MAY 12566606ED
20	Screw (8)
21	MAY 12477601W
21	COVER, HINGE(BLACK)
22	Grille Assembly (White)
22	Grille Assembly (Black)
23	MAY 10200802
24	MAY M0274062
24	MAY M0274057
25	SCREW (10)
26	MAY W10315062
26	MAY W10325141
27	MAY W10217701
28	MAY W10210978
29	Insulation, Sound
30	MAY W10210987
33	MAY B5759655
