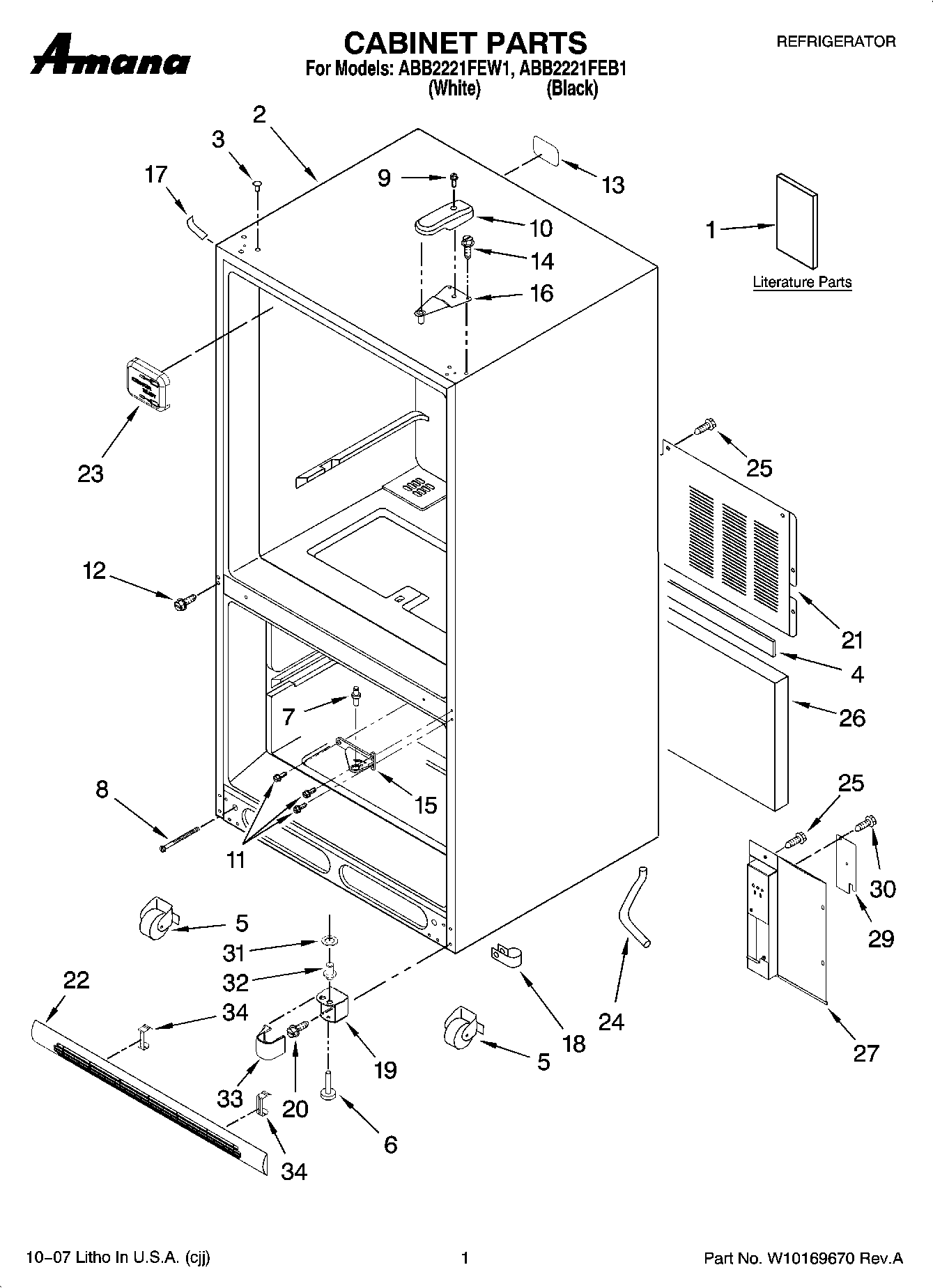

ABB2221FEB1 01 – CABINET PARTS

Products

Position	Product
NI	MAY 8170942
1	MAY W10169671
1	MAY W10137539
1	MAY W10123457
3	WP12246608 Whirlpool Refrigerator Button
3	WP67001130 Whirlpool Refrigerator White Button Plug
4	Gasket
5	Roller Assy.(Rear)
6	W11177593 Whirlpool Leveling Feet
7	WP67006744 Whirlpool Refrigerator Center Pin
8	71003131 Whirlpool Oven Screw
9	WP8281196 Whirlpool Screw
10	67001014 Whirlpool Refrigerator Top Hinge Cover White
10	67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
11	MAY 67005822
12	Screw (8)
13	MAY 67005064
14	WP489349 Whirlpool Refrigerator Screw
15	WP12607104ED Whirlpool Refrigerator Door Hinge
15	WP12607103WD Whirlpool Refrigerator Center Hinge
16	Hinge, Top
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
17	67003484 Whirlpool Refrigerator White Corner Cover
18	67001067 Whirlpool Refrigerator Drain Tube Clip
19	12465002WD Whirlpool Refrigerator Bottom Hinge
20	MAY 67006564
21	MAY 67006101
22	WP67002224 Whirlpool Refrigerator Grille Assembly
22	TOE GRILLE ASSY (WHT)
23	WP67001098 Whirlpool Refrigerator Tube Cover
24	MAY 67001066
25	Screw (10)
26	67003796 Whirlpool Refrigerator Fiber Acoustic
27	MAY 67001097
29	MAY 12479901
30	MAY 67006662
31	MAY M0274057
32	67007018 Whirlpool Refrigerator Bottom Hinge PIN
33	Cover, Lw Hinge (Black)
33	MAY 12561901W
34	Clip, Grille
