ABB2221FEW 03 – CONTROLS

Written by

Products

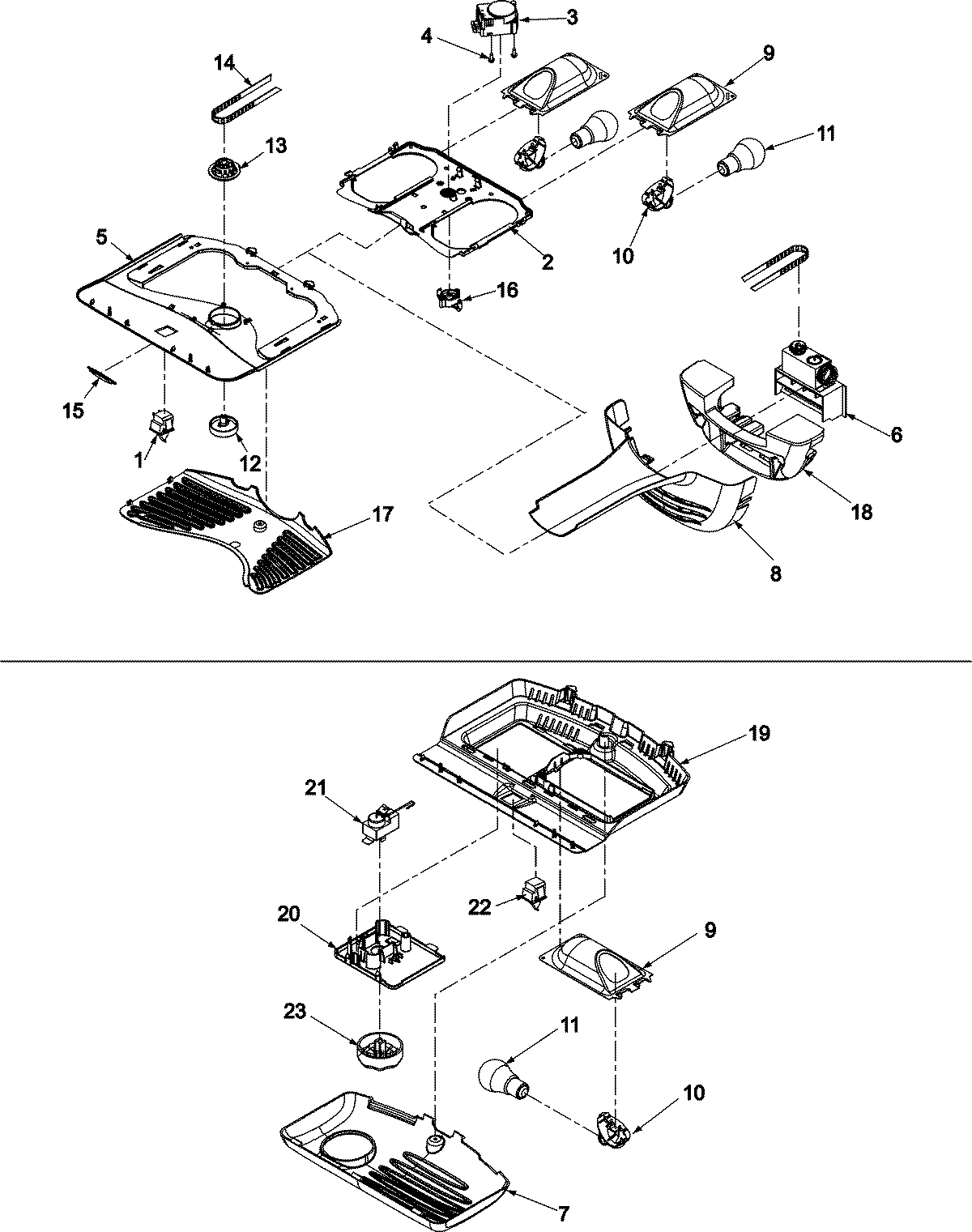

Position	Product
NI	MAY 67003908
NI	Harness, Controls (Refrigerator) (Includes 16)
1	Switch, Light (2)
2	MAY Y67003896
3	WP67001036 Whirlpool Refrigerator Defrost Timer
4	WPW10464769 Whirlpool Refrigerator Housing
5	Pan, Timer Light Housing
6	Gear, Damper Assembly
7	MAY 67001285
8	MAY M0213132
9	12806601 Whirlpool Refrigerator Light Housing
10	Socket, Light (2)
11	RANGE ONLY 40W 120V APPL BULB
13	67001033 Whirlpool Refrigerator Knob Gear
14	MAY 67001040
15	Logo
16	67001034 Whirlpool Refrigerator Tensioner Belt
17	MAY 67002301
18	MAY 67003803
19	WP12476002 Whirlpool Refrigerator Module
20	Panel, Fz Control
21	WP67003000 Whirlpool Refrigerator Control
22	MAY 67005653
