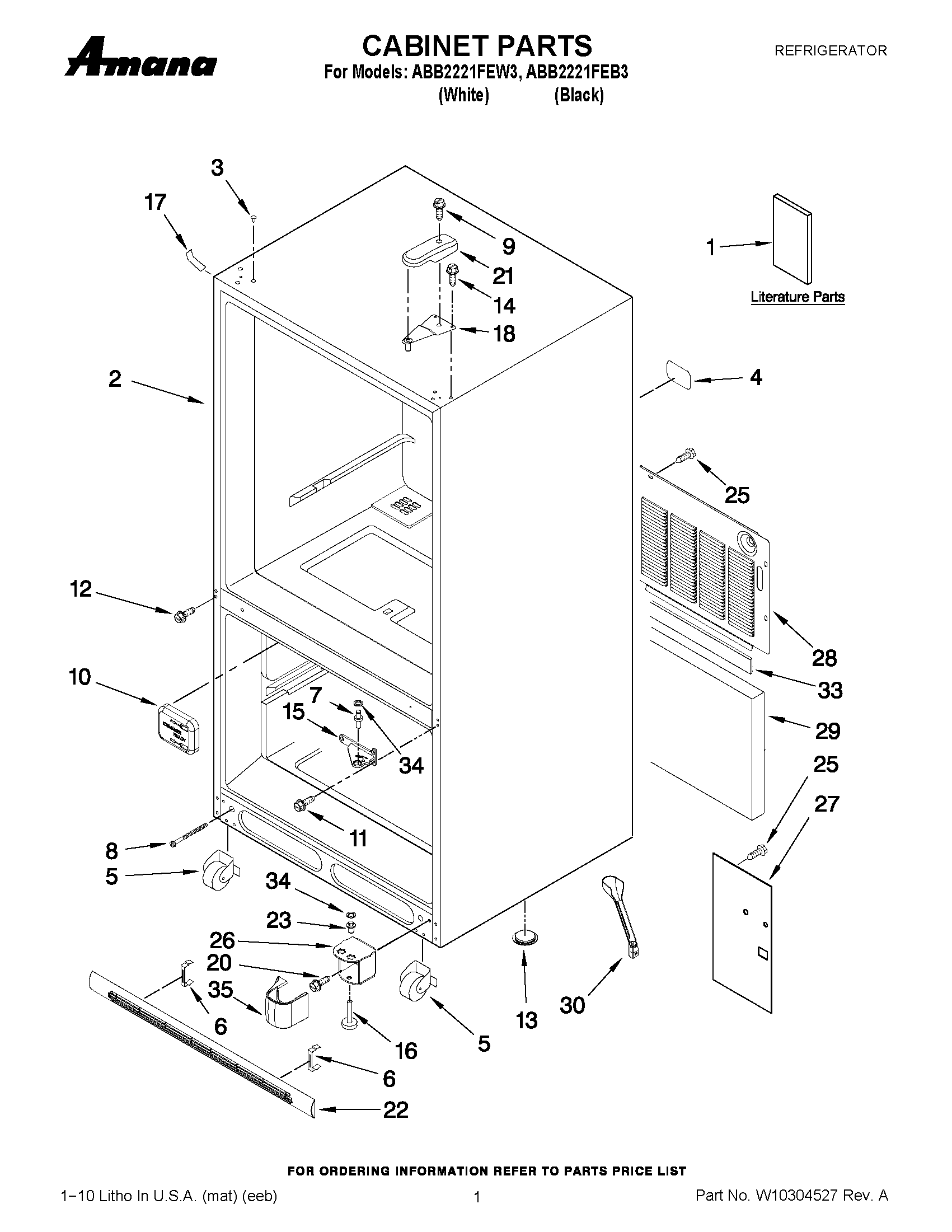

ABB2221FEW3 01 – CABINET PARTS

Products

Position	Product
1	MAY W10279338
1	MAY W10175445
1	MAY W10183258
2	LINER (NOT A SERVICEABLE PART)
3	MAY M0310731
3	MAY M0310729
4	LABEL-FILL TUBE
5	ROLLER ASSY.(REAR)
6	Clip, Grille
7	PIN, CENTER HINGE (REAR)
8	Bolt, Adjusting (Rear)
9	MAY 12992602
10	COVER-FILL TUBE
11	SCREW (6)
12	MAY 12990101
13	A3076901 Whirlpool Refrigerator Plug
14	SCREW (6)
15	MAY 12607103WD
15	MAY 12607104ED
16	Foot Brake (2)
17	COVER, CORNER (BLACK)
17	Cover, Corner (2) (White)
18	MAY 12566606ED
20	Screw (8)
21	MAY 12477601W
21	COVER, HINGE(BLACK)
22	MAY 12734401W
22	MAY 12734401B
23	MAY 10200802
25	SCREW (10)
26	MAY 12465002WD
26	MAY 12465005ED
27	MAY W10217701
28	MAY W10210979
29	Insulation, Sound
30	MAY W10210988
33	MAY B5759655
34	MAY M0274057
34	MAY M0274062
35	MAY 12561901W
35	Cover, Lw Hinge (Black)
