ABB2221FEZ 02 – COMPRESSOR

ABB2221FEZ 02 – COMPRESSOR

Written by

in

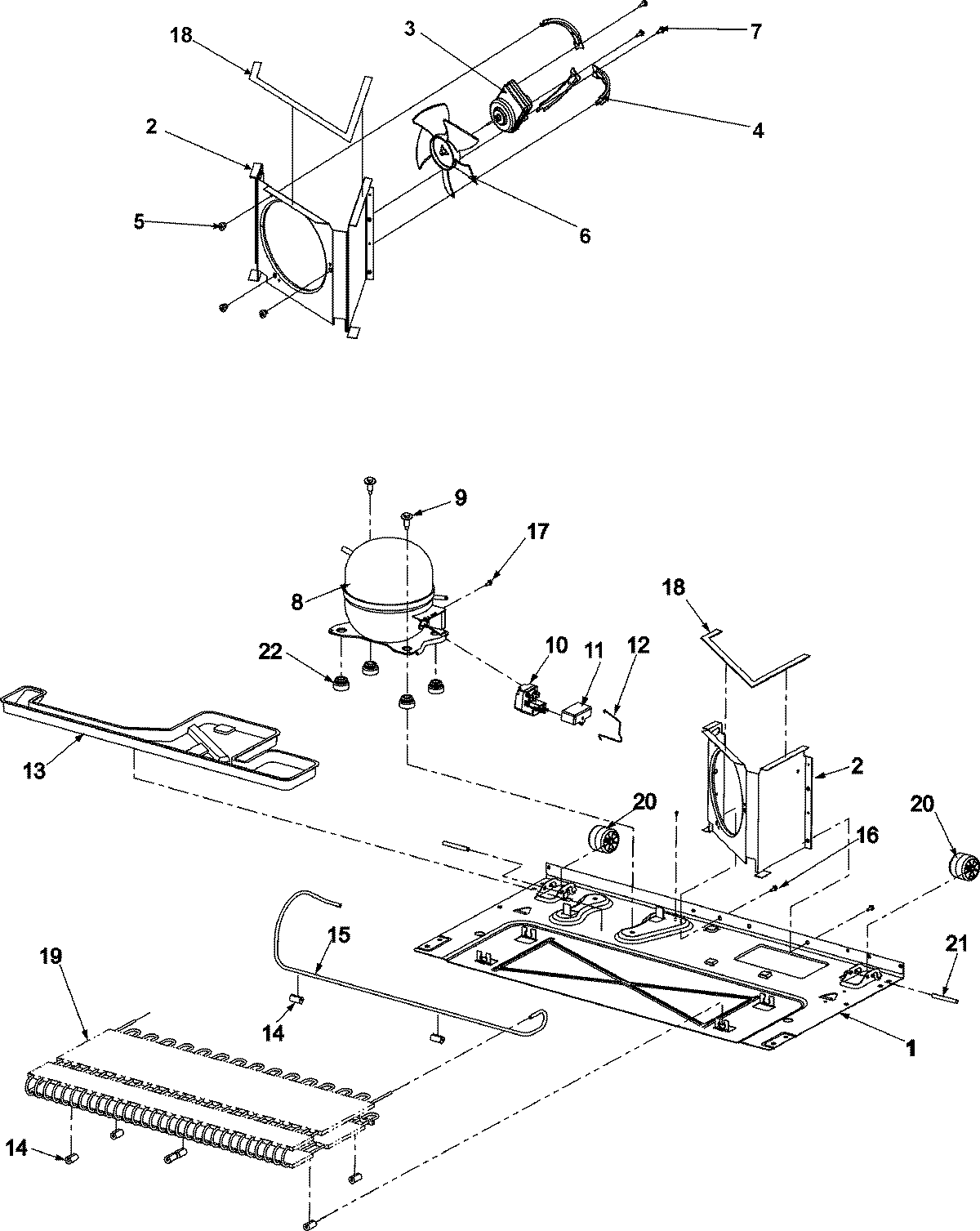

ABB2221FEZ 02 – COMPRESSOR

Products

PositionProduct
1BASEPAN, MACHINE COMPARTMENT
2SHROUD, CONDENSER FAN
3MAY 67004432
4MAY 67004953
5GROMMET, BRACKET
6W10156818 Whirlpool Refrigerator Fan Blade
7WP67004954 Whirlpool Refrigerator Screw
8COMPRESSOR-TPG1370YXA(BM)
9MAY 67006432
10W10613606 Whirlpool Refrigerator Start Device Relay Overload
11Capacitor
12MAY 12576801
13Drain Pan
1467005680 Whirlpool Refrigerator Condenser Grommet
15MAY 67004262
16Screw (10)
17MAY 67006433
18WP854334 Whirlpool Air Conditioner Sealing Strip
19WP67006132 Whirlpool Refrigerator Condenser
20WP67005149 Whirlpool Roller
2167006434 Whirlpool Axle Pin
2267003493 Whirlpool Refrigerator Compressor Grommet
