ABB2221WEB0 01 – CABINET PARTS

ABB2221WEB0 01 – CABINET PARTS

Written by

in

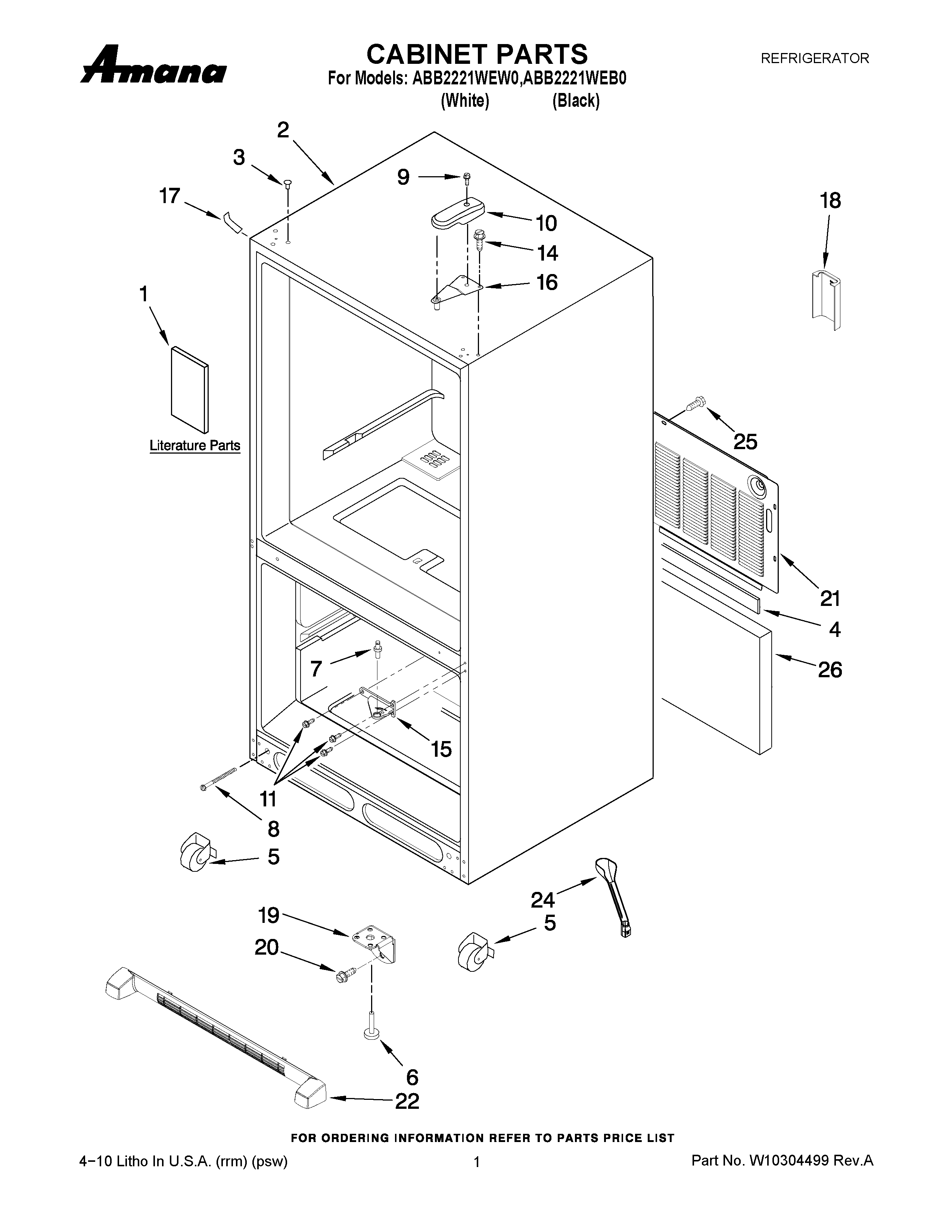

ABB2221WEB0 01 – CABINET PARTS

Products

PositionProduct
1MAY W10297563
1MAY W10308611
1MAY W10208785
2LINER (NOT A SERVICEABLE PART)
3MAY M0310731
3MAY M0310729
4MAY B5759655
5ROLLER ASSY.(REAR)
6Foot Brake (2)
7PIN, CENTER HINGE (REAR)
8Bolt, Adjusting (Rear)
9MAY 12992602
10COVER, HINGE(BLACK)
10MAY 12477601W
11SCREW (6)
14SCREW (6)
15MAY 12607104ED
15MAY 12607103WD
16Hinge, Top
17COVER, CORNER (BLACK)
17Cover, Corner (2) (White)
18MAY W10217701
19BRACKET, FOOT
20Screw (8)
21MAY W10210979
22MAY 12734401B
22MAY 12734401W
24MAY W10210988
25SCREW (10)
26Insulation, Sound
