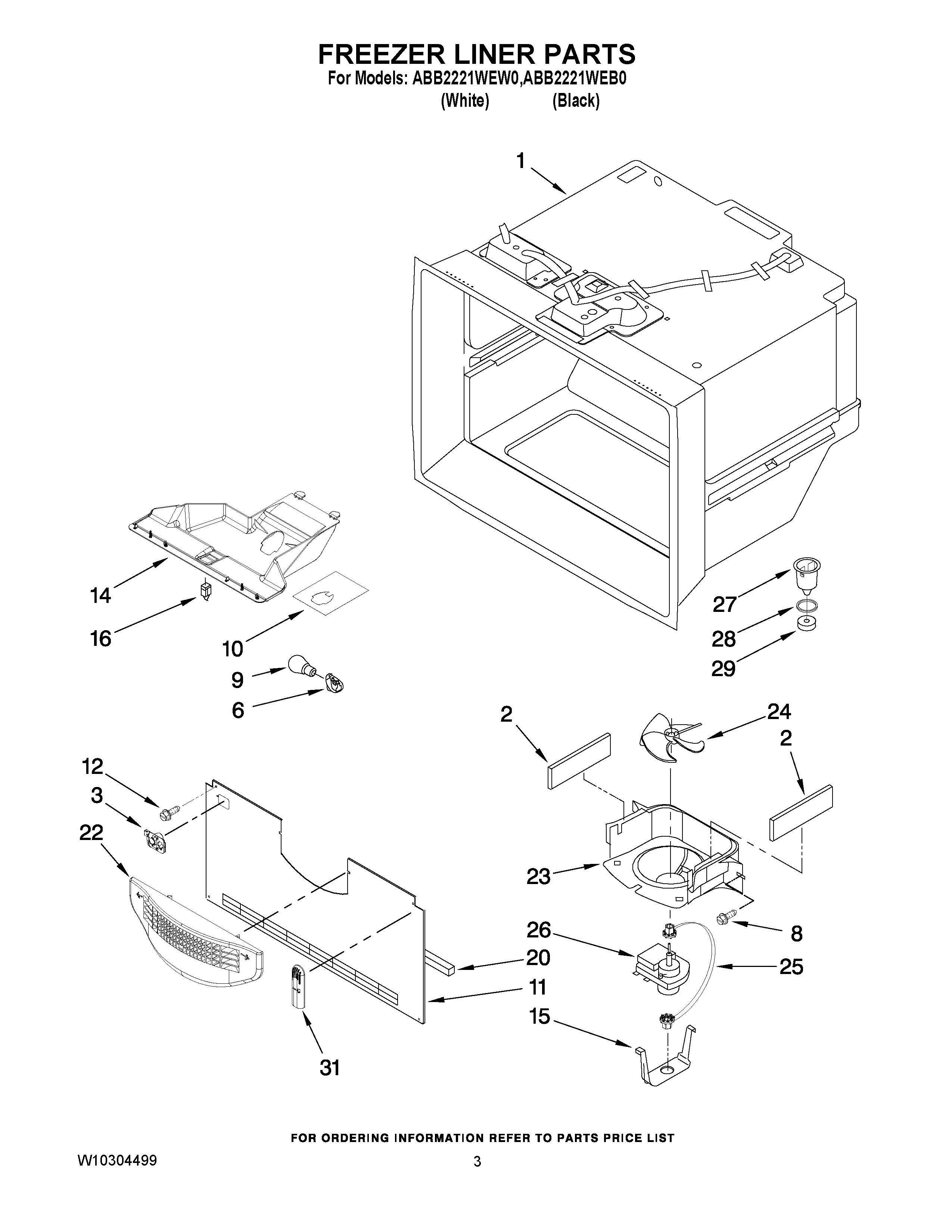

ABB2221WEB0 02 – FREEZER LINER PARTS

ABB2221WEB0 02 – FREEZER LINER PARTS

Written by

in

ABB2221WEB0 02 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Gasket, Bottom
3MAY 12932103
6Socket, Light
8Screw (8)
9BULB, LIGHT (2)
10FOIL-FZ LIGHT
11MAY W10308415
12MAY 12990101
14MODULE-FZ LIGHT
15CLIP, EVAP. MOTOR
16MAY 12466105
20Gasket, Bottom
22Grille, Fz Air
23SHROUD, EVAP.FAN
24Blade, Fan (Evaporator)
25MAY W10121318
26MAY W10128551
27MAY D7753903
28MAY M0500703
29Gasket
31MAY 12815301
