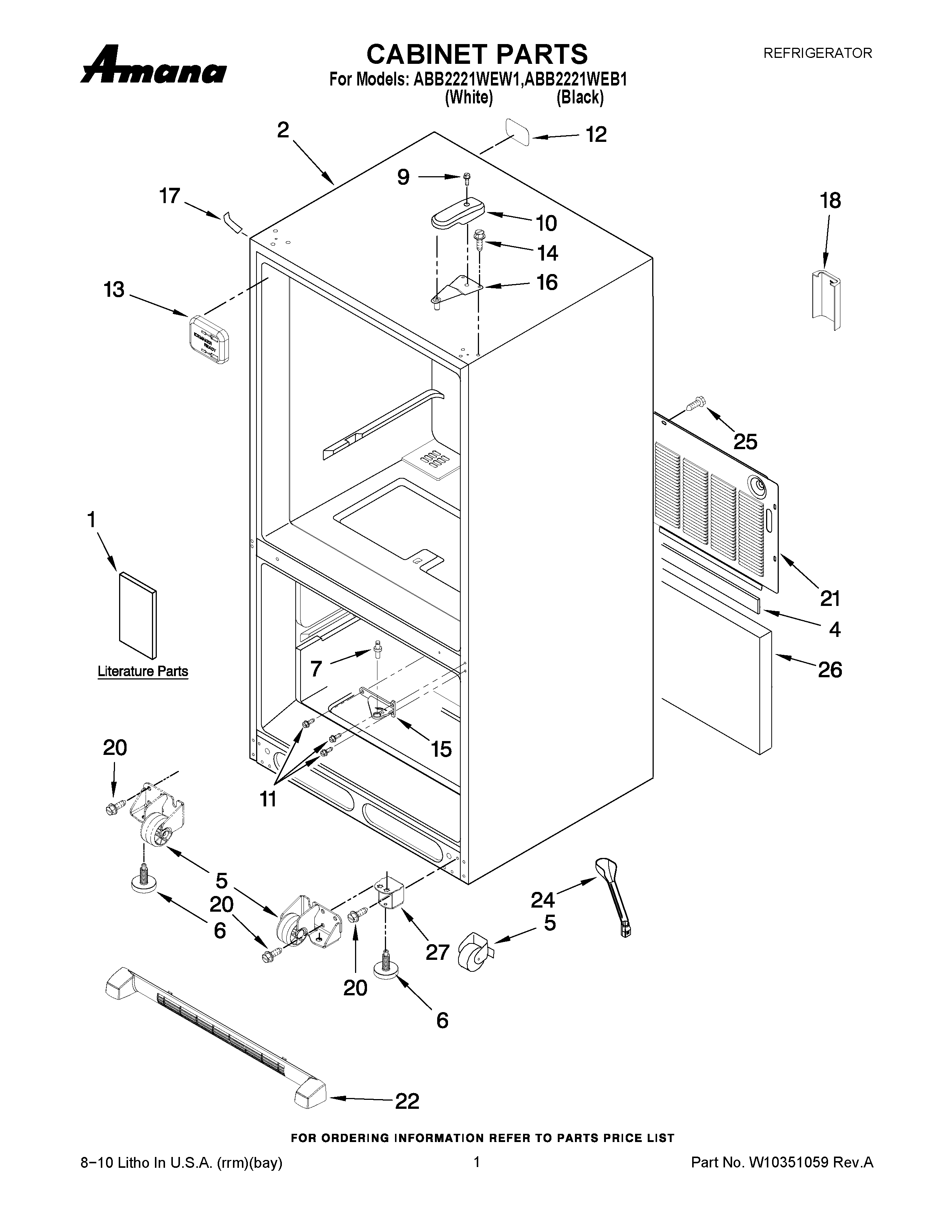

ABB2221WEB1 01 – CABINET PARTS

Products

PositionProduct
1MAY W10297563
1MAY W10322959
1MAY W10208785
2LINER (NOT A SERVICEABLE PART)
4MAY B5759655
5ROLLER ASSY. (FRONT) (RIGHT)
5ROLLER ASSY. (FRONT) (LEFT)
6Brake, Foot
7PIN, CENTER HINGE (REAR)
9MAY 12992602
10MAY 12477601W
10COVER, HINGE(BLACK)
11SCREW (6)
12LABEL-FILL TUBE
13COVER-FILL TUBE
14SCREW (6)
15MAY 12607103WD
15MAY 12607104ED
16Hinge, Top
17COVER, CORNER (BLACK)
17Cover, Corner (2) (White)
18MAY W10217701
20Screw (8)
21MAY W10210979
22MAY W10236195
22MAY W10236196
24MAY W10210988
25SCREW (10)
26Insulation, Sound
27MAY W10315062
27MAY W10325141
