ABB2221WEB1 02 – FREEZER LINER PARTS – Aparts

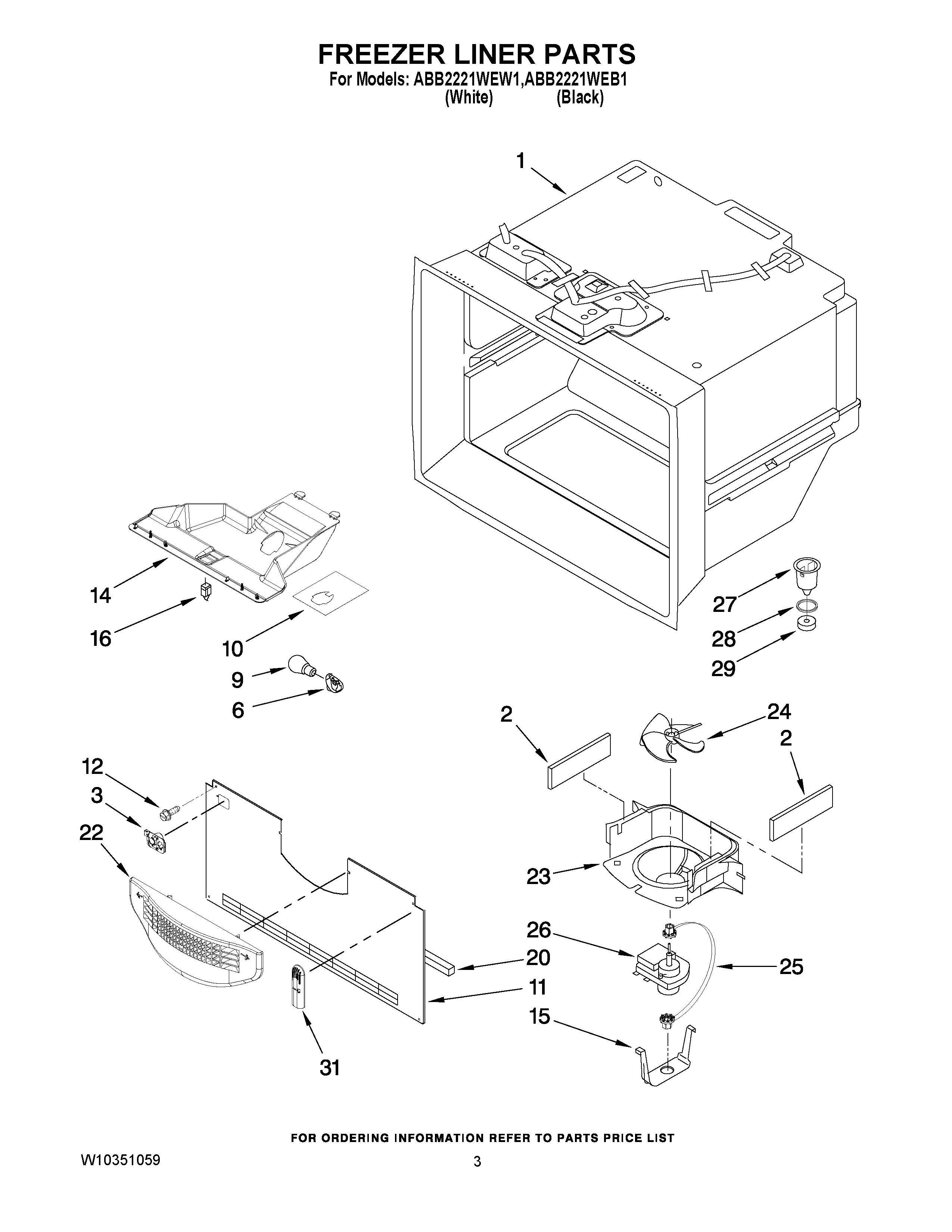

ABB2221WEB1 02 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	MAY 12932103
6	Socket, Light
9	BULB, LIGHT (2)
10	FOIL-FZ LIGHT
11	MAY W10308415
12	MAY 12990101
14	MODULE-FZ LIGHT
15	CLIP, EVAP. MOTOR
16	MAY 12466105
20	MAY A3189395
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25	MAY W10121318
26	MAY W10128551
27	MAY D7753903
28	MAY M0500703
29	Gasket
31	MAY 12815301
