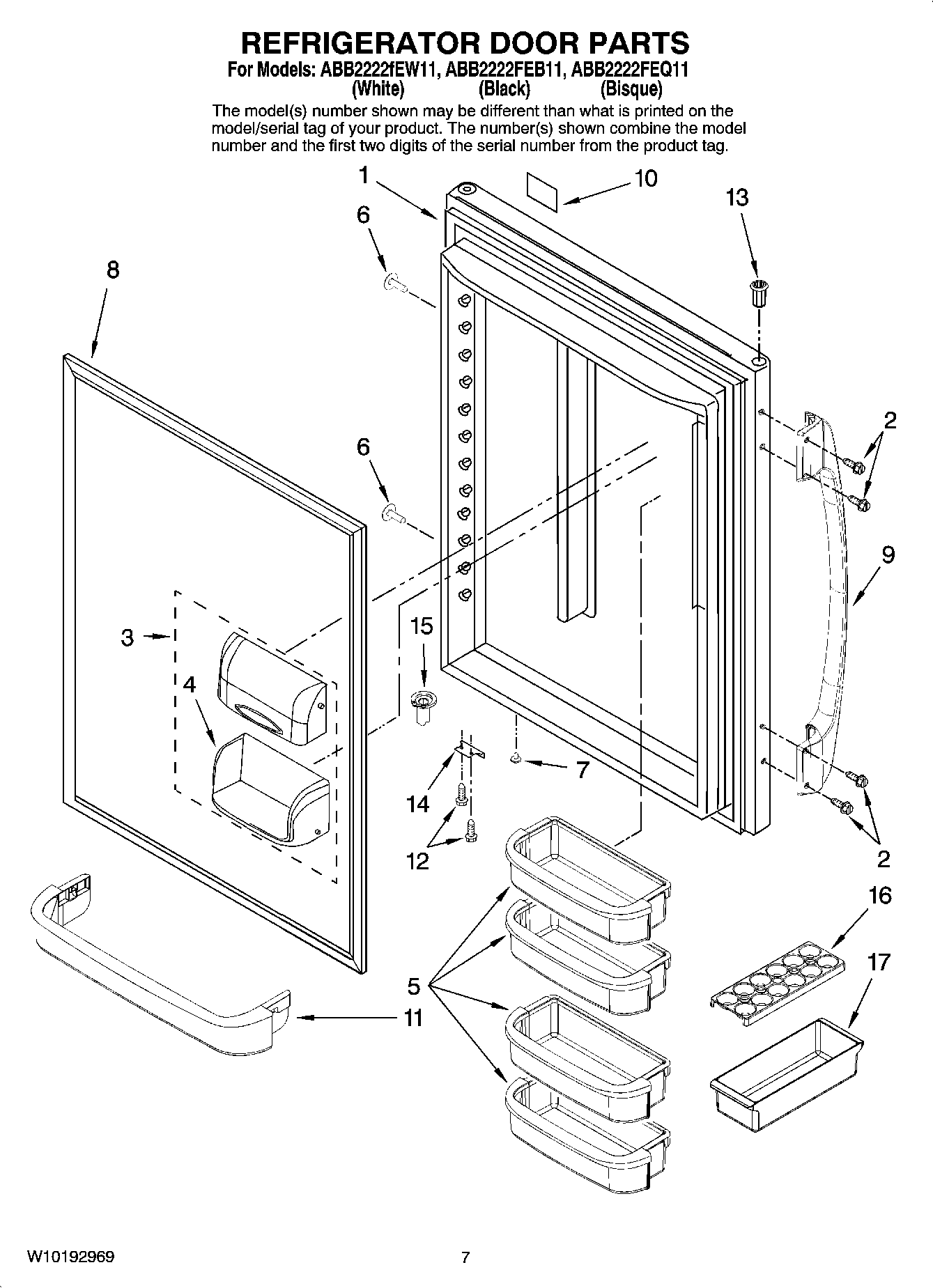

ABB2222FEB11 05 – REFRIGERATOR DOOR PARTS

ABB2222FEB11 05 – REFRIGERATOR DOOR PARTS

Written by

in

ABB2222FEB11 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR ASSY., REF. FOAM (WHT)
1MAY 67004361
1MAY 67004329
3WP12744905 Whirlpool Refrigerator Compressor Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WP67001021 Whirlpool Refrigerator Bucket
6SCREW (BLK)
6MAY 12991103
6MAY 12991104
710712401 Whirlpool Refrigerator Vent Plug (White)
767004838 Whirlpool Refrigerator Button Vent Plug
8GASKET, REF DOOR (BLK)
8GASKET, REF DOOR (WHT)
9MAY 67006804
9MAY 67006721
9HANDLE, SIDE MOUNT (BLK)
10STAINLESS
1167001019 Whirlpool Door Shelf Trim
12WP98165 Whirlpool Screw
13WP67004977 Whirlpool Refrigerator Door Hinge Bushing
1367004978 Whirlpool Refrigerator Black Door Bushing
14W11708403 Whirlpool Door Stop
1467003781 Whirlpool Refrigerator Door Stop (BSQ)
1412968202W Whirlpool Refrigerator Door Stop
15WP67003638 Whirlpool Closing Cam
15WP67003639 Whirlpool Refrigerator Closer
16MAY 10436506
17MAY 10423131
