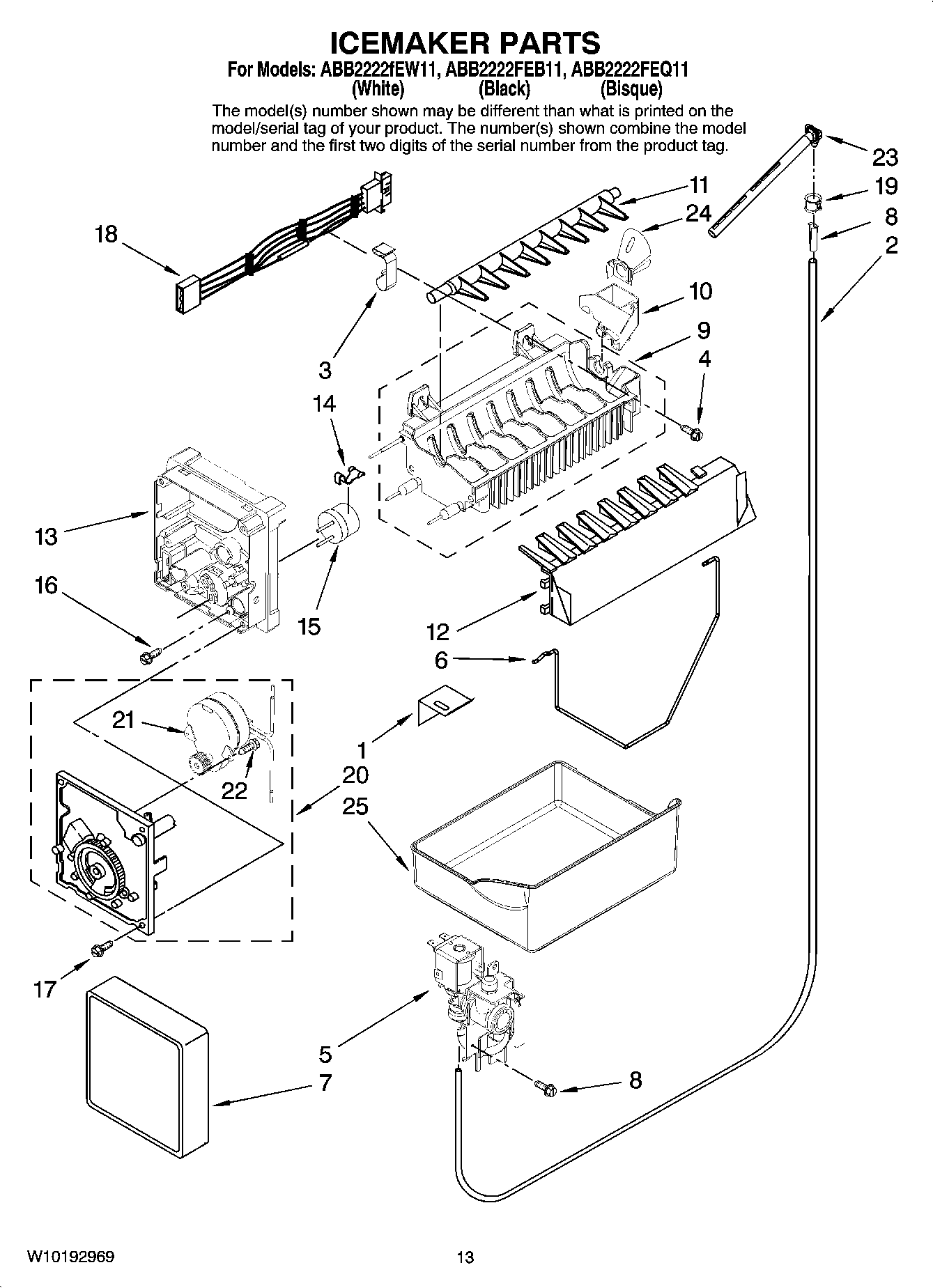

ABB2222FEB11 08 – ICEMAKER PARTS, OPTIONAL PARTSadmin2025-04-26T08:56:19+00:00ABB2222FEB11 08 – ICEMAKER PARTS, OPTIONAL PARTS
Products
| Position | Product |
|---|
| PAINT, PRESSURIZED SPRAY (12OZ. WHITE) |
| Kit, Evaporator Repair (Aluminum Epoxy) |
| MAY 542639 |
| MAY 542638 |
| MAY 505587 |
| MAY 503695 |
| MAY 479502 |
| SEALER, GUM (4 FEET) |
| MAY 1117510 |
| PAINT, SPRAY (WHITE PRIMER) |
| NI | Complete Ice Maker |
| PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) |
| Cleaner, Stainless Steel |
| PAINT, BULK (1 QT. WHITE (UNCUT)) |
| PAINT, TOUCH-UP (1/2OZ. BLACK) |
| PAINT, TOUCH-UP (1/2OZ. WHITE) |
| MAY 833938 |
| 1 | MAY 2256086 |
| 2 | Tubing, Plastic |
| 3 | MAY 67003932 |
| 4 | MAY 489276 |
| 5 | WP67003753 Whirlpool Refrigerator Inlet Valve |
| 6 | ARM-SHUT |
| 7 | WPW10289690 Whirlpool Ice Maker Cover |
| 8 | MAY A3223101 |
| 9 | MAY 6282280 |
| 10 | Cup, Fill |
| 11 | MAY 627843 |
| 12 | MAY 2182124 |
| 13 | MAY 2194712 |
| 14 | MAY 2315522 |
| 15 | Thermostat (Also Order 542369 Cement Alumilastic) |
| 16 | MAY 8533917 |
| 17 | Screw (3) |
| 18 | HARNESS, ICEMAKER |
| 19 | Clip |
| 20 | Module Assembly (Includes Items 21& 22) |
| 21 | MAY 626684 |
| 22 | MAY 489136 |
| 23 | MAY W10137519 |
| 24 | MAY 67005603 |
| 25 | WP67001255 Whirlpool Ice Bucket |
