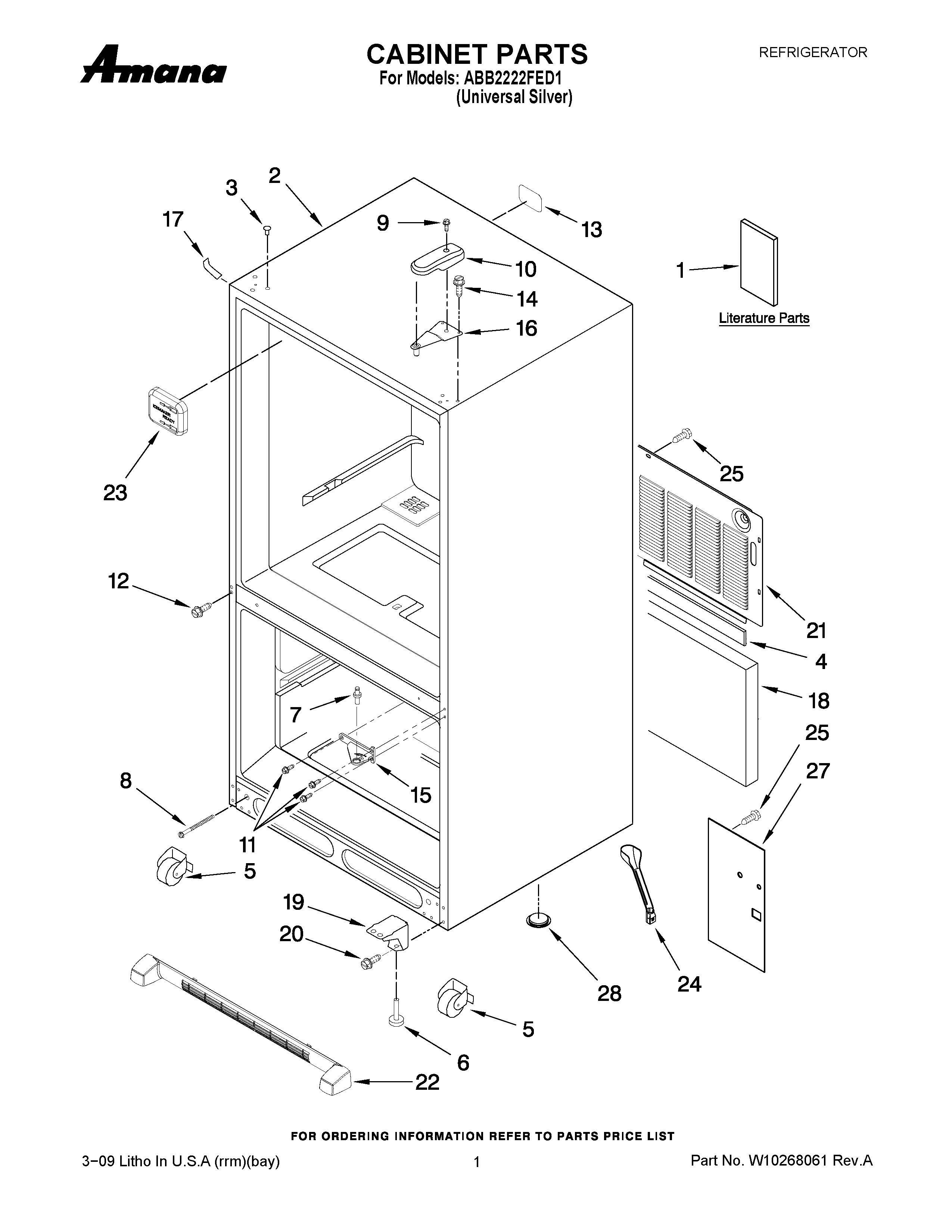

ABB2222FED1 01 – CABINET PARTS

ABB2222FED1 01 – CABINET PARTS

Written by

in

ABB2222FED1 01 – CABINET PARTS

Products

PositionProduct
1MAY W10184250
1MAY W10175445
1MAY W10238840
3WP12246610 Whirlpool Refrigerator Handle Plug
4Gasket
5ROLLER ASSY.(REAR)
6Foot Brake (2)
7MAY 10351006
8Bolt, Adjusting (Rear)
9MAY 12992602
10COVER, HINGE(BLACK)
11MAY 12990101
12SCREW (6)
13LABEL-FILL TUBE
14SCREW (6)
15MAY 12607104ED
16MAY 12566606ED
17COVER, CORNER (BLACK)
18Insulation, Sound
19Bracket, Foot
20Screw (8)
21MAY W10210979
22MAY W10236196
23COVER-FILL TUBE
24MAY W10210988
25SCREW (10)
27MAY W10217701
28A3076901 Whirlpool Refrigerator Plug
