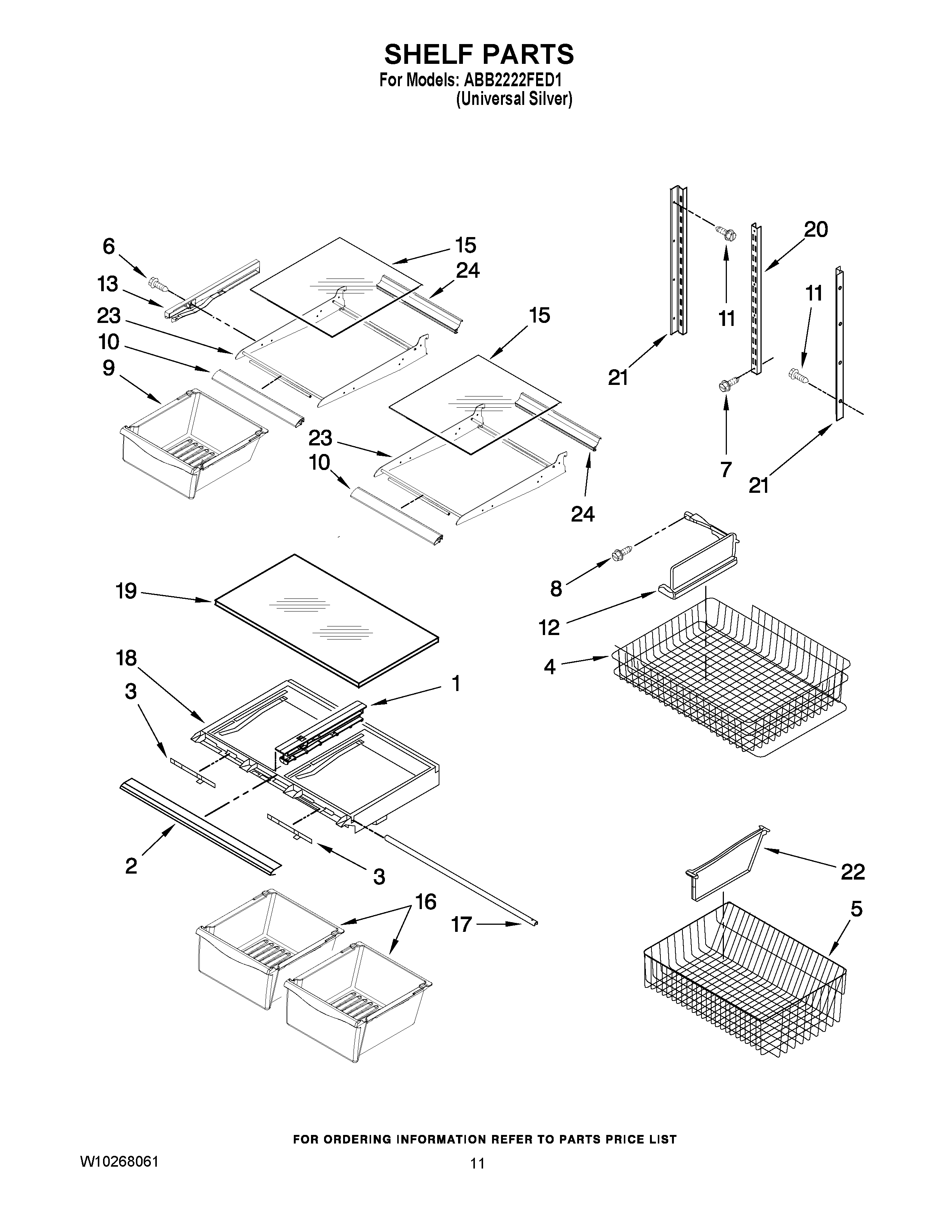

ABB2222FED1 07 – SHELF PARTS

Products

PositionProduct
1Rail, Center Crisper
2MAY W10231341
3MAY 12530805SP
4BASKET, FREEZER UPPER
5MAY W10143561
6SCREW
7MAY 12990515
8MAY 12990601N
9MAY 12656404V
10Trim, Front (4)
11MAY 12990513
12MAY 12693802N
13GLIDE, RIGHT
13GLIDE, LEFT
15Glass, Shelf (4)
16PAN, CRISPER (2)
17BRACE, CRISPER FRAME
18FRAME, CRISPER
19MAY 12204822
20MAY 12435807
21MAY 12710602
22DIVIDER, BASKET LOWER
23Shelf (4)
24Trim, Rear (4)
