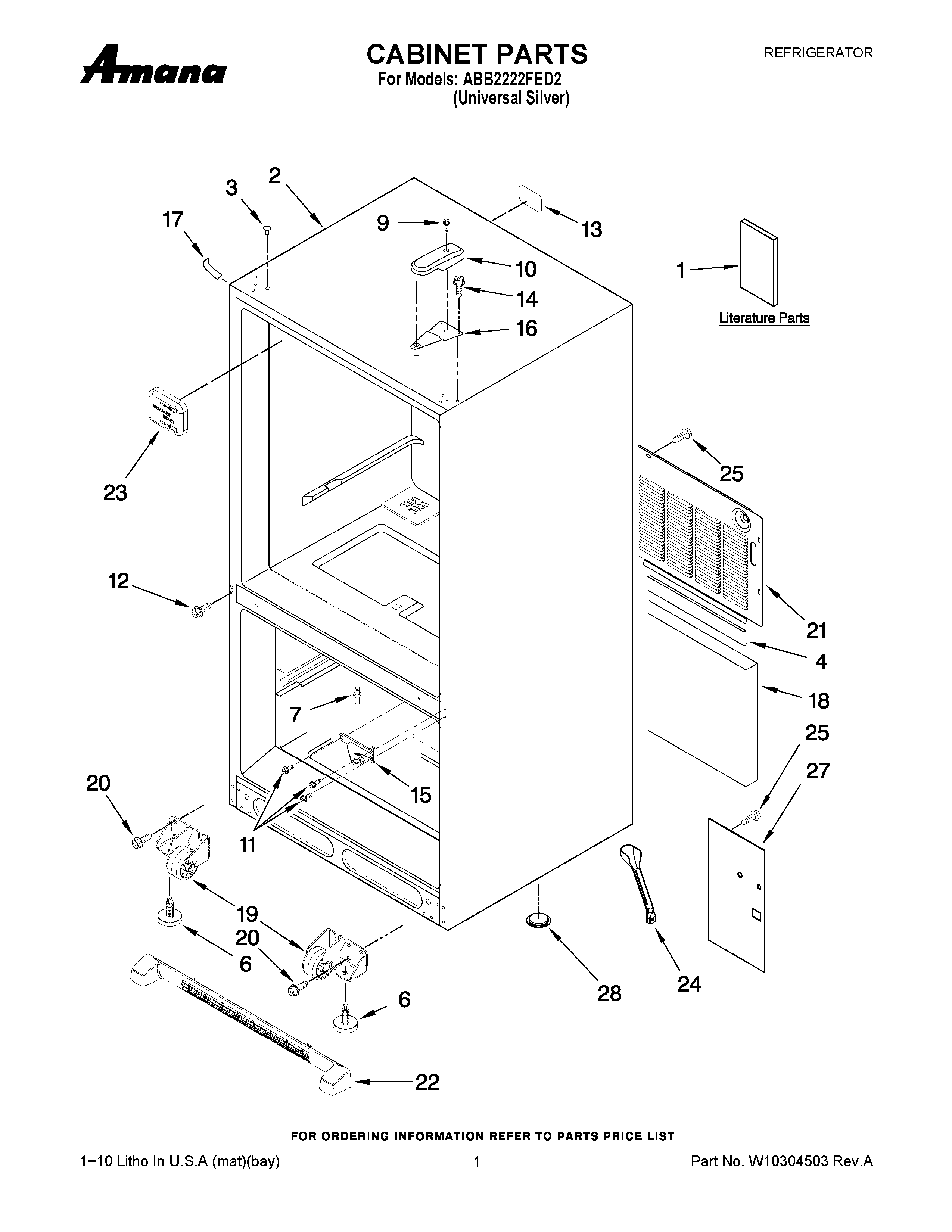

ABB2222FED2 01 – CABINET PARTS

ABB2222FED2 01 – CABINET PARTS

Written by

in

ABB2222FED2 01 – CABINET PARTS

Products

PositionProduct
1MAY W10175445
1MAY W10184250
1MAY W10279329
2LINER (NOT A SERVICEABLE PART)
3WP12246610 Whirlpool Refrigerator Handle Plug
4Gasket
6Brake, Foot
7MAY 10351006
9MAY 12992602
10COVER, HINGE(BLACK)
11MAY 12990101
12SCREW (6)
13LABEL-FILL TUBE
14SCREW (6)
15MAY 12607104ED
16MAY 12566606ED
17COVER, CORNER (BLACK)
18Insulation, Sound
19ROLLER ASSY. (FRONT) (RIGHT)
19ROLLER ASSY. (FRONT) (LEFT)
20Screw (8)
21MAY W10210979
22MAY W10236196
23COVER-FILL TUBE
24MAY W10210988
25SCREW (10)
27MAY W10217701
28A3076901 Whirlpool Refrigerator Plug
