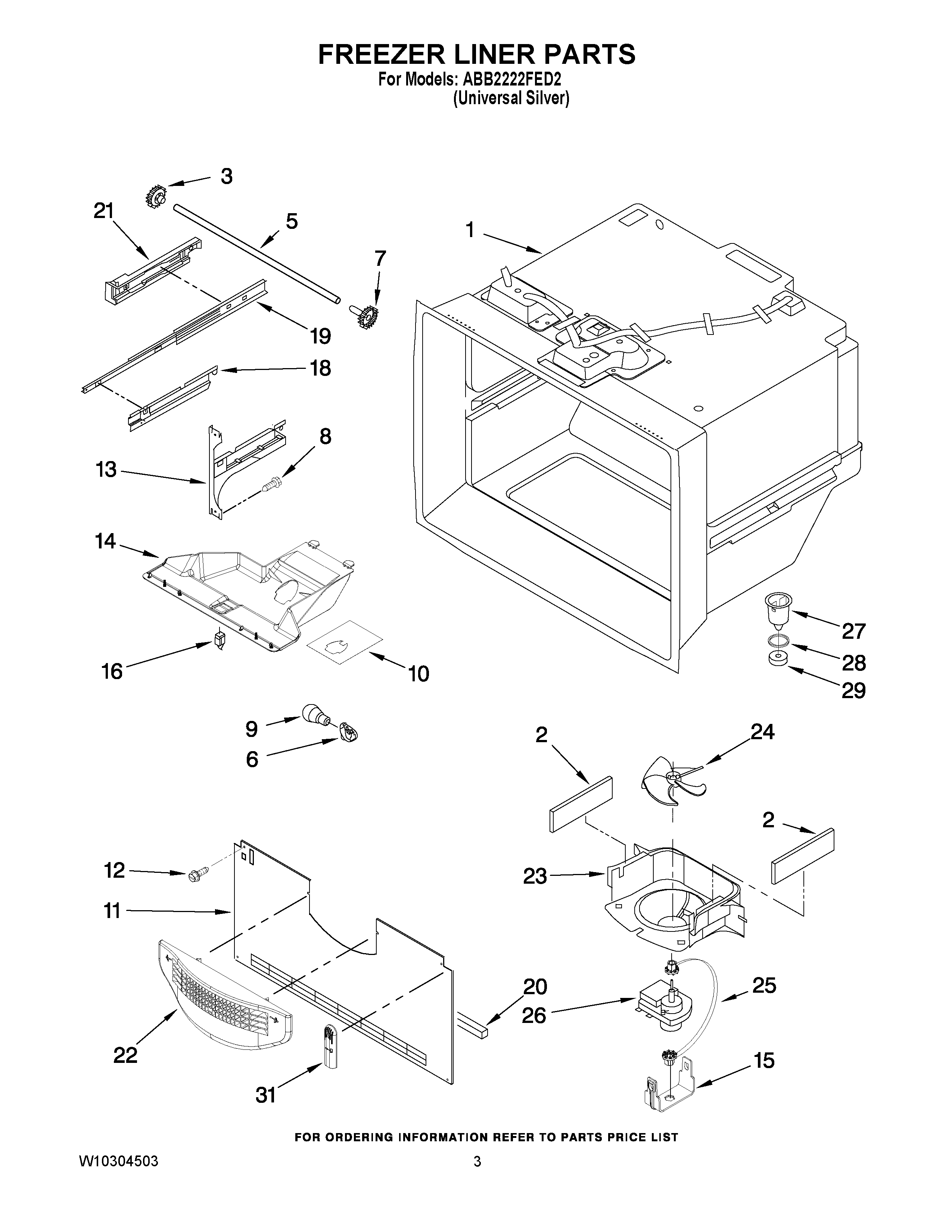

ABB2222FED2 02 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Gasket, Bottom
5MAY 12812902WD
6Socket, Light
712002497 Whirlpool Refrigerator Drawer Gear Kit
8Screw (8)
9Bulb, Light (2)
10FOIL-FZ LIGHT
11MAY 12226111
12SCREW (10)
13BRACKET, DOOR (LEFT)
13BRACKET, DOOR (RIGHT)
14MODULE-FZ LIGHT
15MAY 10623002
16MAY 12466105
18Bracket, Basket (Right)
18Bracket, Basket (Left)
19MAY W10120018
20Gasket, Bottom
21ADAPTER, SIDE (RIGHT)
21ADAPTER, SIDE (LEFT)
22Grille, Fz Air
23SHROUD, EVAP.FAN
24Blade, Fan (Evaporator)
25MAY W10121318
26MAY W10128551
27MAY D7753903
28MAY M0500703
29Gasket
31MAY 12815301
