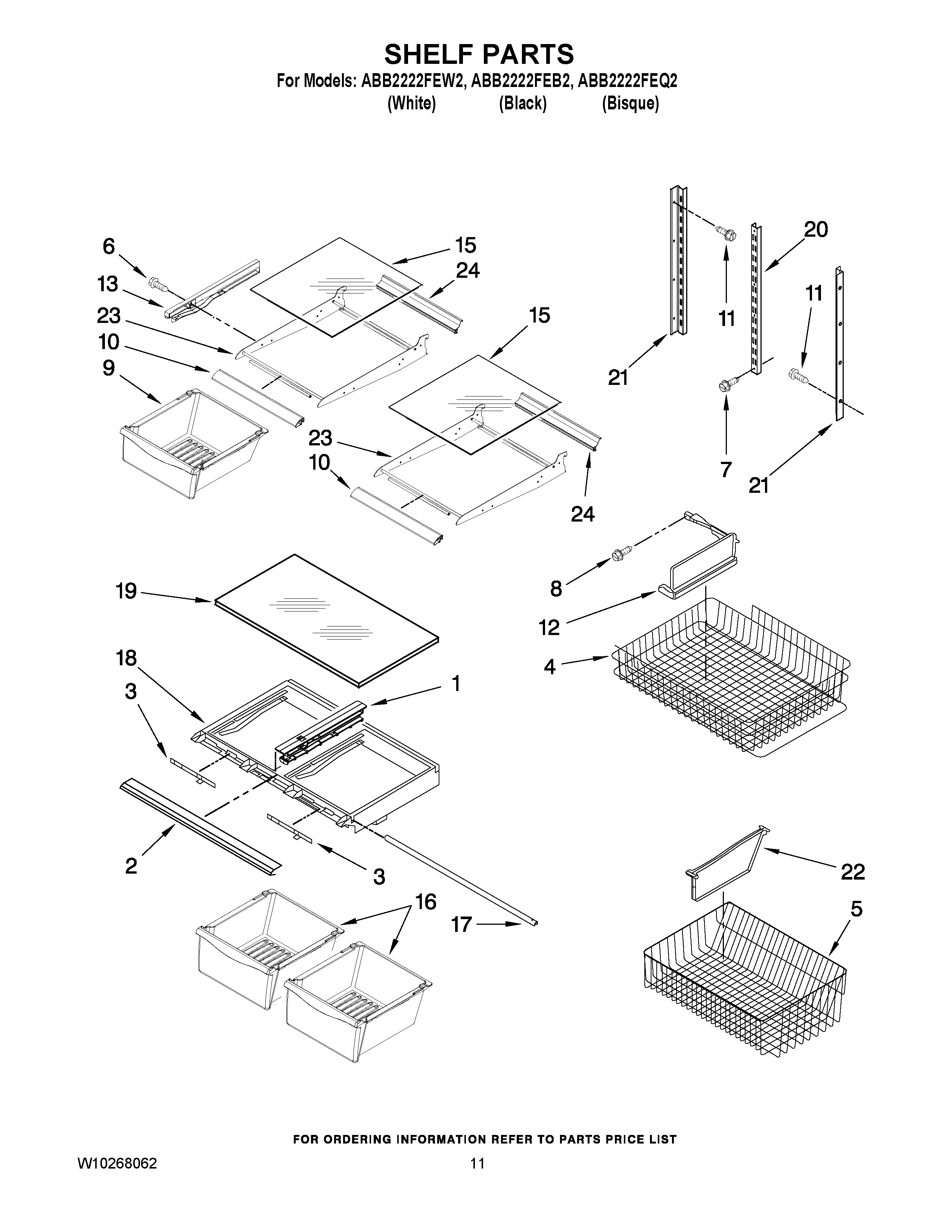

ABB2222FEQ2 07 – SHELF PARTSadmin2025-04-26T08:56:03+00:00ABB2222FEQ2 07 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | Rail, Center Crisper |
| 2 | MAY W10231341 |
| 3 | Slide, Humidity(2) |
| 4 | BASKET, FREEZER UPPER |
| 5 | MAY W10143561 |
| 6 | Screw (4) |
| 7 | MAY 12990515 |
| 8 | MAY 12990601 |
| 9 | MAY 12656404 |
| 10 | Trim, Front (4) |
| 11 | MAY 12990513 |
| 12 | Divider, Upper Basket |
| 13 | GLIDE, RACK (RIGHT) |
| 13 | GLIDE, RACK (LEFT) |
| 15 | Glass, Shelf (4) |
| 16 | PAN, CRISPER (2) |
| 17 | BRACE, CRISPER FRAME |
| 18 | Frame, Crisper |
| 19 | MAY 12204822 |
| 20 | MAY 12435807 |
| 21 | MAY 12710602 |
| 22 | DIVIDER, BASKET LOWER |
| 23 | Shelf (4) |
| 24 | Trim, Rear (4) |
