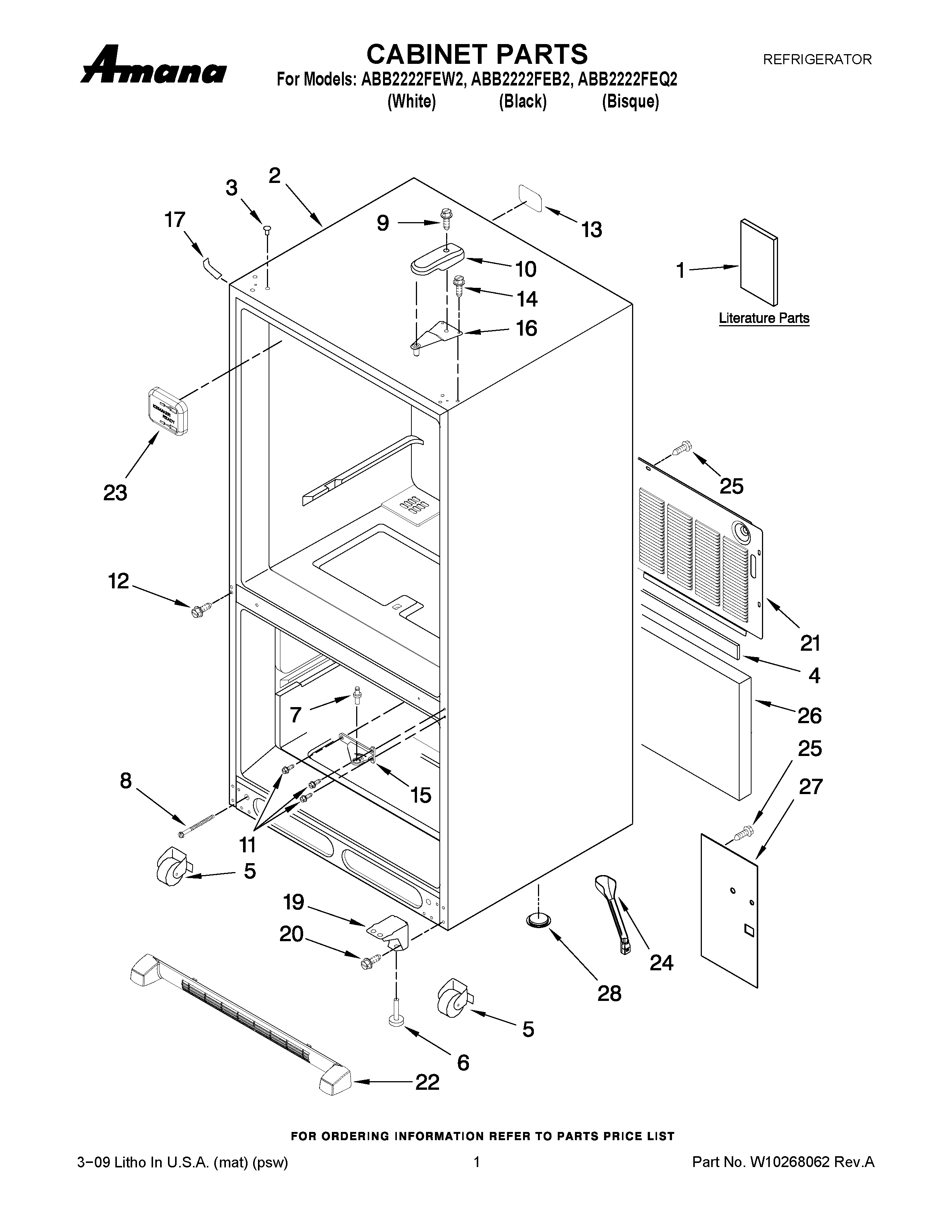

ABB2222FEW2 01 – CABINET PARTS

Products

Position	Product
1	MAY W10175445
1	MAY W10238840
1	MAY W10184250
2	LINER (NOT A SERVICEABLE PART)
3	MAY M0310729
3	MAY M0310731
4	MAY B5759655
5	ROLLER ASSY.(REAR)
6	Foot Brake (2)
7	MAY 10351006
8	Bolt, Adjusting (Rear)
9	MAY 12992602
10	MAY 12477601W
10	MAY 12477601C
10	COVER, HINGE(BLACK)
11	MAY 12990101
12	SCREW (6)
13	LABEL-FILL TUBE
14	SCREW (6)
15	MAY 12607103WD
15	MAY 12607103ED
16	MAY 12566606ED
17	Cover, Corner (2) (White)
17	COVER, CORNER (BLACK)
17	Cover, Corner (Bisque)
19	Hinge, Bottom (White)
20	Screw (8)
21	MAY W10210979
22	MAY W10236195
22	MAY W10236196
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (BISQUE)
23	COVER-FILL TUBE
24	MAY W10210988
25	SCREW (10)
26	Insulation, Sound
27	MAY W10217701
28	A3076901 Whirlpool Refrigerator Plug
