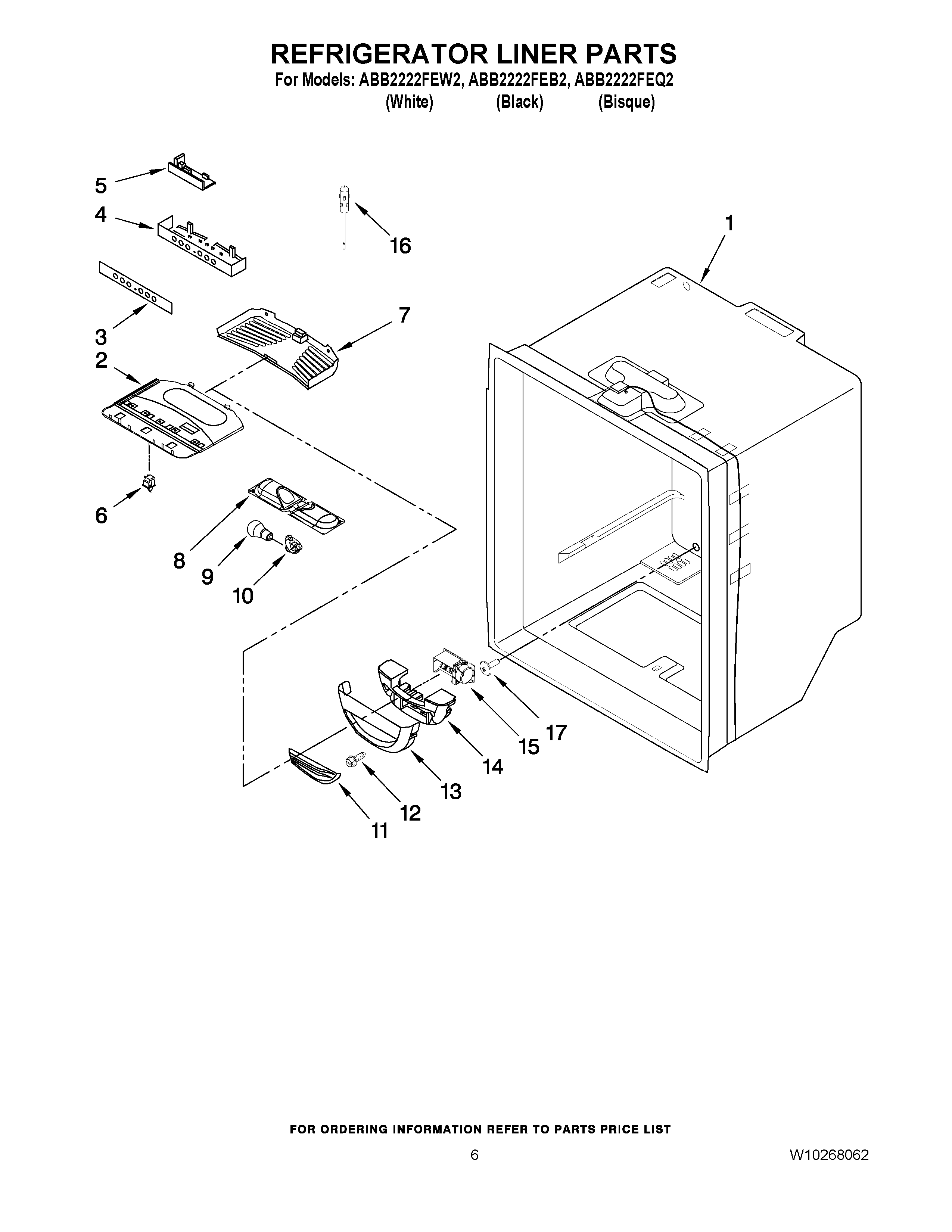

ABB2222FEW2 04 – REFRIGERATOR LINER PARTS

ABB2222FEW2 04 – REFRIGERATOR LINER PARTS

Written by

in

ABB2222FEW2 04 – REFRIGERATOR LINER PARTS

Products

PositionProduct
NIMAY 12868701
1LINER (NOT A SERVICEABLE PART)
2MAY 12806301
3MAY 12816501
4MAY 12806406SP
5MAY 12868513
6Switch, Light (2)
7MAY 12806501
8MAY 12806601
9Bulb, Light (2)
10W11447232 Whirlpool Refrigerator Socket
11MAY 12806801
12MAY 12990604
13MAY 12806701
14INSULATION
15DAMPER, CONTROL
1612002355 Whirlpool Refrigerator Thermistor Kit
17PLUG, BUTTON
