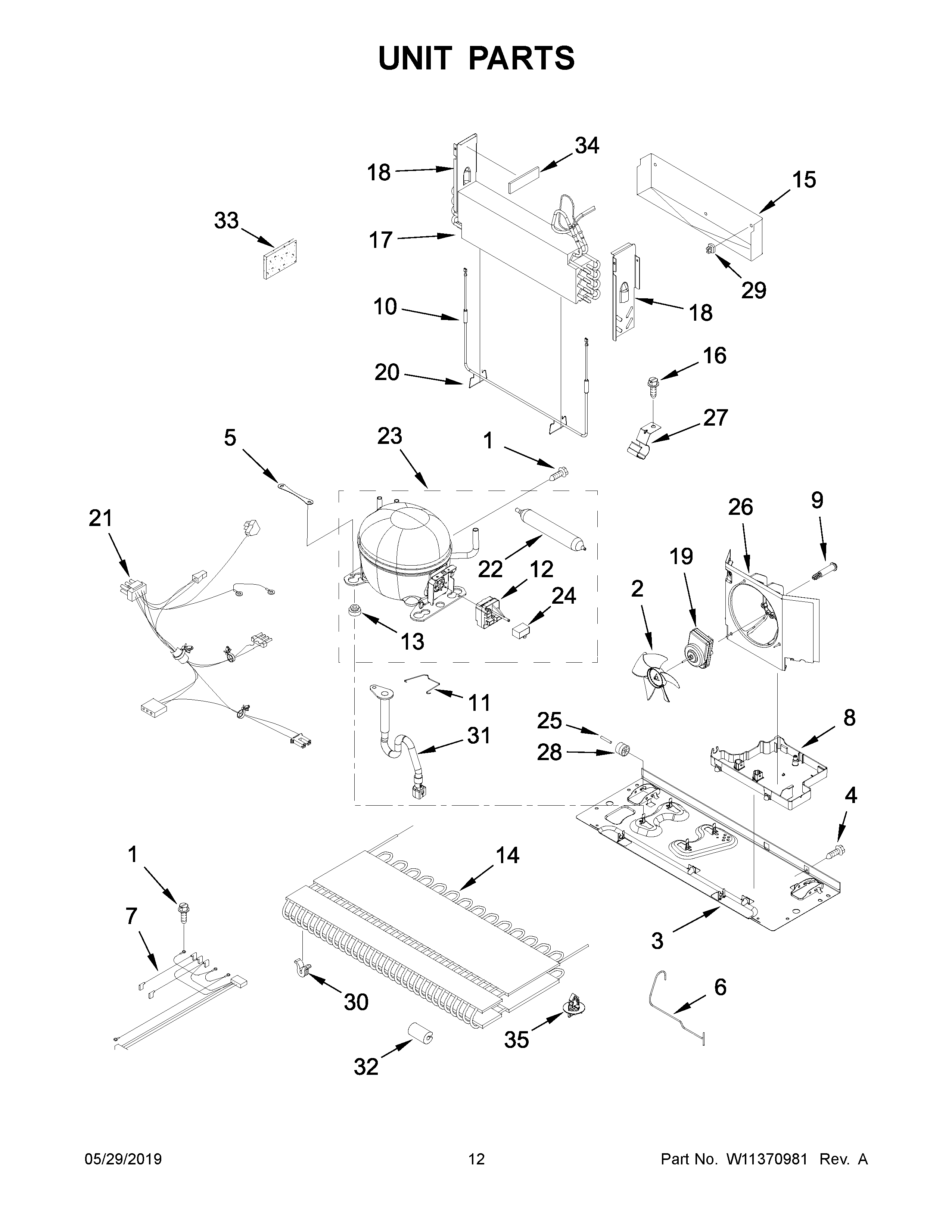

ABB2224BRB01 07 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (5/16“)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	VALVE, ACCESS (3/8“)
NI	LINER (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/4“)
NI	MAY 876764
1	MAY 12992301
2	MAY 12825803
3	MAY W10480110
4	SCREW (10)
5	MAY W10236396
6	MAY W10233570
7	HARNESS, EVAPORATOR (INCLUDES HEATER)
8	MAY W10655367
9	MAY W10622701
10	MAY 12729128
11	MAY W10216075
12	MAY W10796752
13	GROMMET
14	MAY W10346420
15	MAY W10292802
16	MAY 12992101
17	EVAPORATOR
18	DAM (LEFT SIDE)
18A	Dam (Right Side)
19	MOTOR, CONDENSER FAN
20	W11673433 Whirlpool Clip
21	MAY W11218258
22	Drier
23	COMPRESSOR
24	MAY W10350564
25	Axle, Roller (2)
26	SHROUD
27	MAY W10281329
28	Roller (2)
29	MAY 10623002
30	GROMMET, COND (4)
31	EXTENSION, DRAIN TUBE
32	GROMMET, CONDENSER
33	SEALER, INSULATION
34	Gasket, Bottom
35	MAY W10815863
