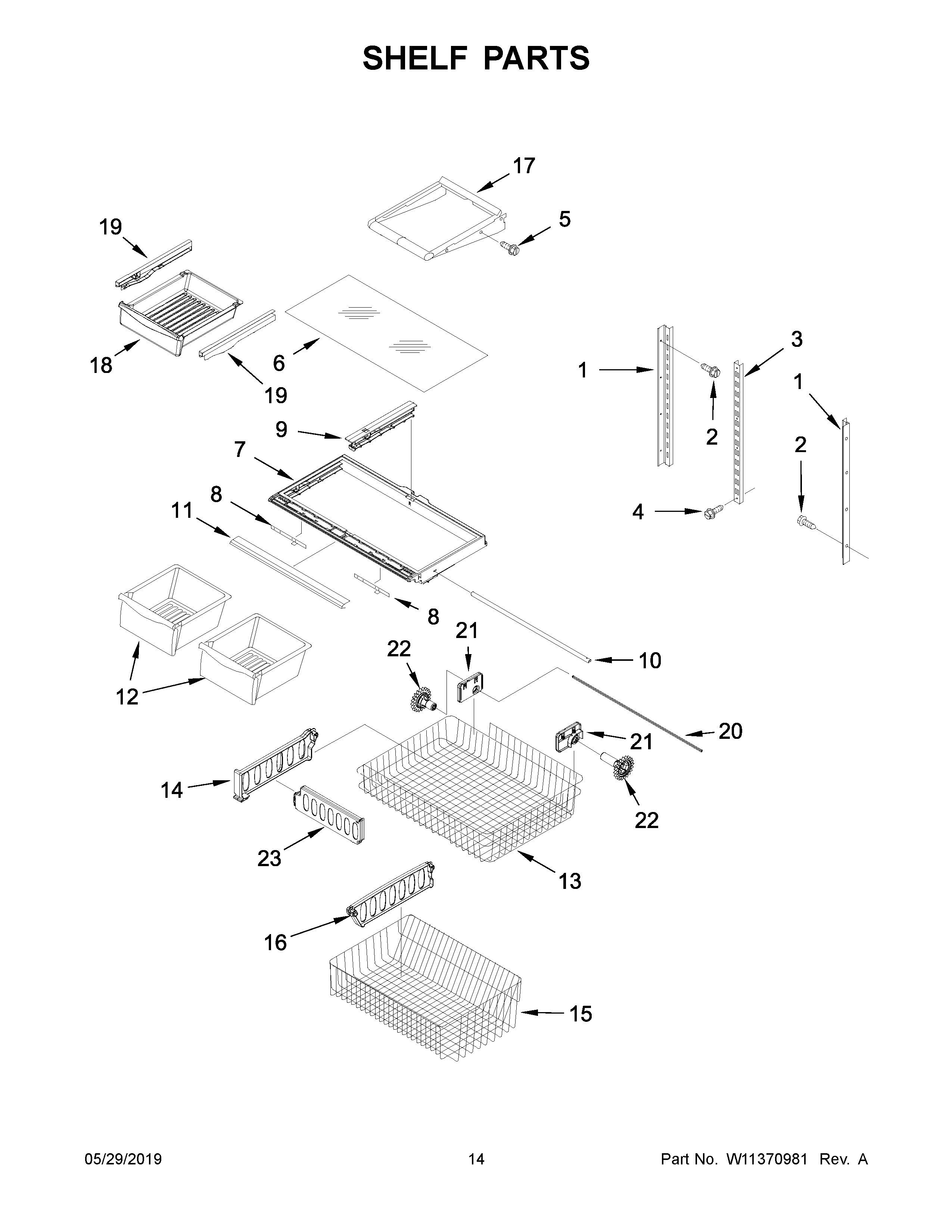

ABB2224BRM01 08 – SHELF PARTS

ABB2224BRM01 08 – SHELF PARTS

Written by

in

ABB2224BRM01 08 – SHELF PARTS

Products

PositionProduct
1MAY W10251969
2MAY 12990513
3MAY W10273463
4MAY W10215666
5MAY 12990302V
6MAY 12204822
7FRAME, CRISPER
8MAY 12530805SP
9MAY W10671238
10BRACE, CRISPER FRAME
11TRIM, CRISPER
12MAY 12530505N
13BASKET, FREEZER (UPPER)
14Divider, Upper Basket
15BASKET, FREEZER (LOWER)
16Divider, Lower Basket
17MAY 12463509
18MAY 12656404V
19AMAY 12656602V
19MAY 12656601V
20SHAFT, RACK
21AMOUNT-GEAR (RIGHT HAND)
21MOUNT-GEAR (LEFT HAND)
22AMAY W10474715
22MAY W10474716
23DIVIDER, UPPER
