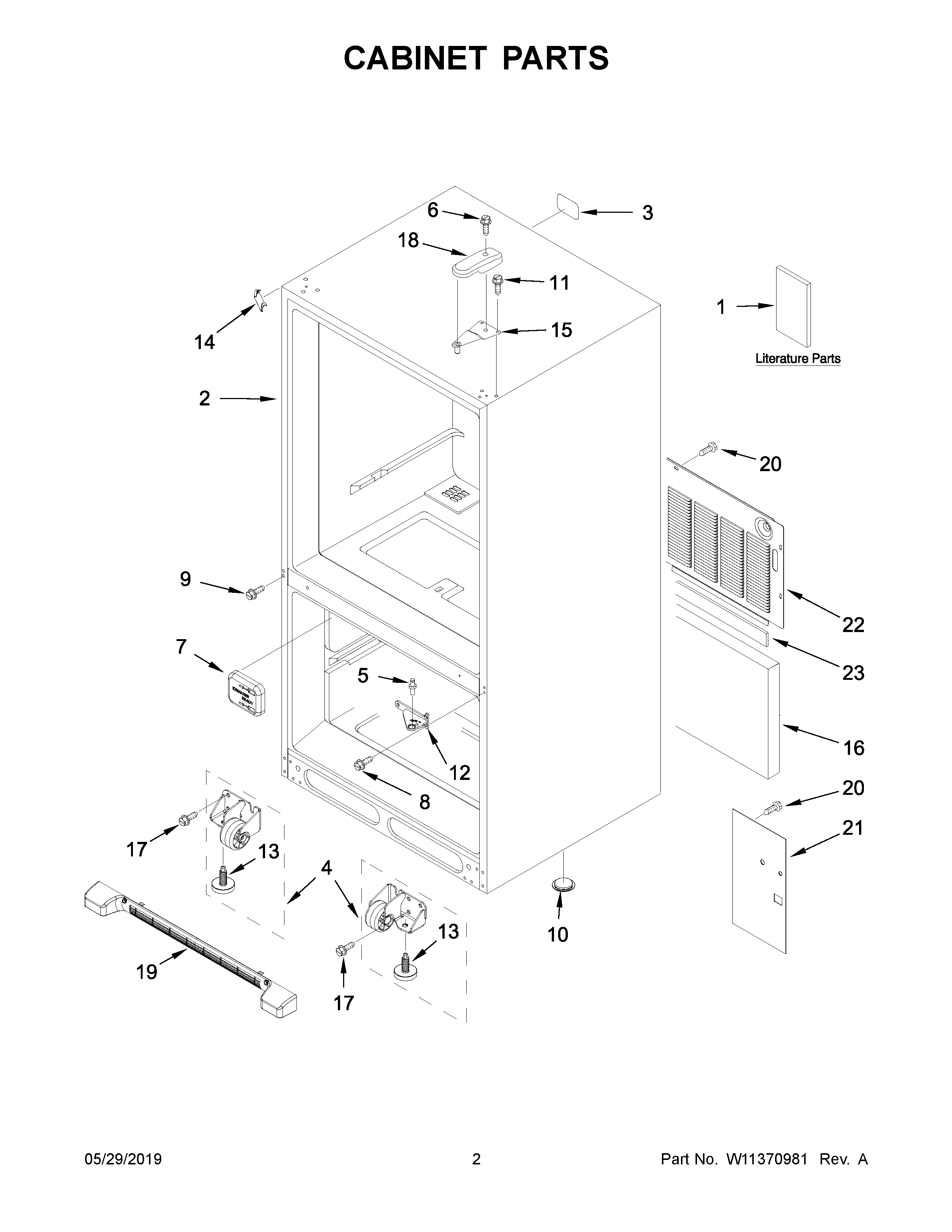

ABB2224BRW01 02 – CABINET PARTS

Products

Position	Product
1B	MAY W11297588
1A	MAY W11306944
1	USE AND CARE GUIDE
2	LINER (NOT A SERVICEABLE PART)
3	LABEL-FILL TUBE
4	ROLLER ASSEMBLY (LEFT HAND)
4A	ROLLER ASSEMBLY (RIGHT HAND)
5	MAY 10351006
6	MAY 12992602
7	COVER, FILL TUBE
8	MAY W10673840
9	Screw (8)
10	A3076901 Whirlpool Refrigerator Plug
11	SCREW (6)
12A	MAY 12607104ED
12B	MAY 12607103AP
12	MAY 12607103WD
13	Brake, Foot
14B	COVER, CORNER (GREY)
14	Cover, Corner (2) (White)
14A	COVER, CORNER (BLACK)
15	MAY 12566606ED
16	Insulation, Sound
17	MAY W10709365
18B	MAY 12477601AP
18A	COVER, HINGE(BLACK)
18	MAY 12477601W
19A	ASSEMBLY, GRILLE (BLACK)
19B	ASSEMBLY, GRILLE (GREY)
19	ASSEMBLY, GRILLE (WHITE)
20	SCREW (10)
21	MAY W10217701
22	MAY W10210979
23	MAY B5759655
