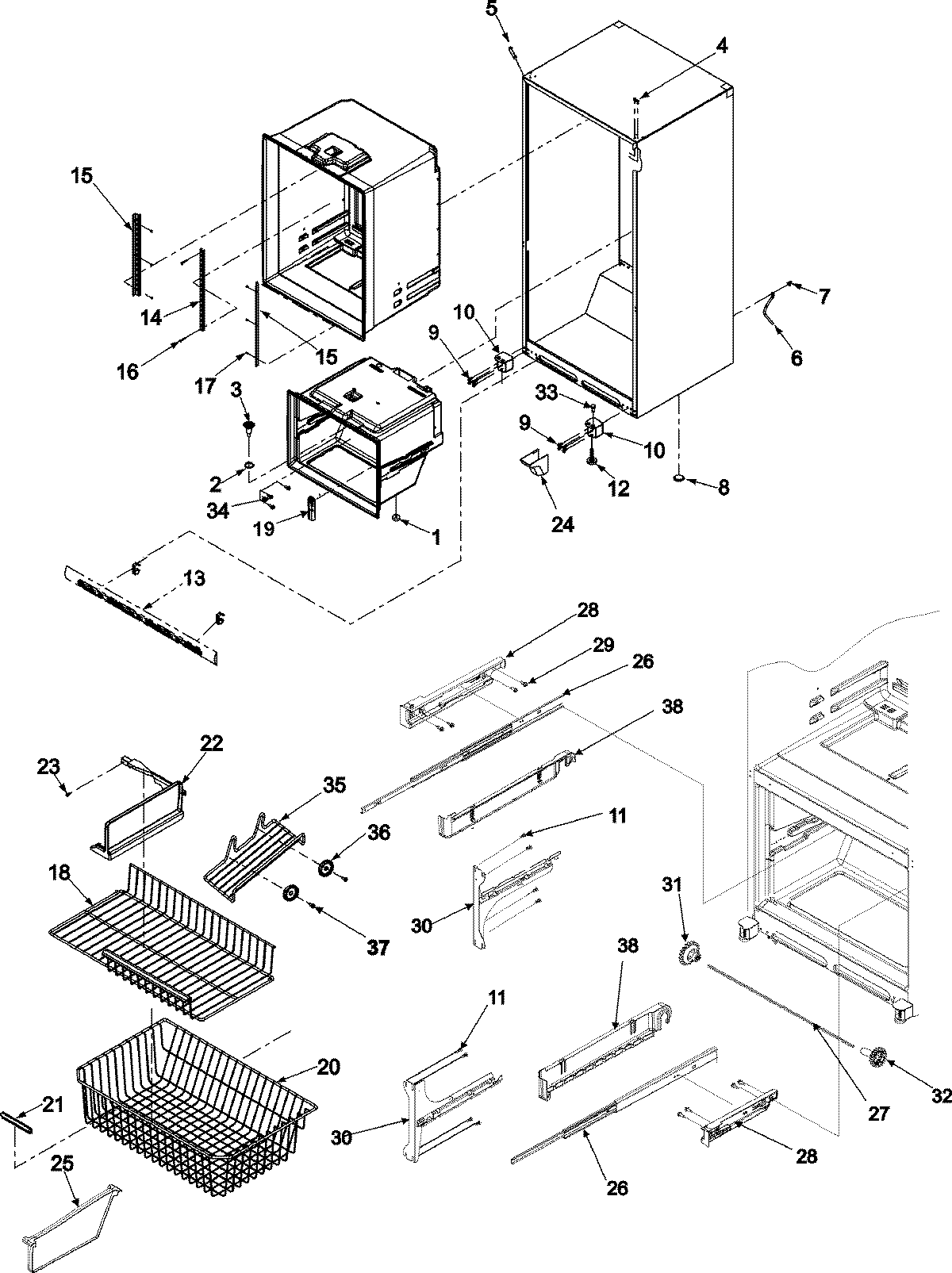

ABB2224DES 06 – INTERIOR CABINET & FREEZER SHELVING

Products

Position	Product
1	Gasket
2	MAY M0500703
3	MAY D7753903
4	MAY A4539607
5	67003485 Whirlpool Refrigerator Corner Cover (Black)
6	MAY 67001066
7	67001067 Whirlpool Refrigerator Drain Tube Clip
8	A3076901 Whirlpool Refrigerator Plug
9	MAY 67003858
10	HINGE, BOTTOM E-CT (BLK)
11	MAY M0211018
12	MAY 10354001
13	Grille Assembly (Includes Clips) (Black)
14	67001073 Whirlpool Refrigerator Center Ladder
15	LADDER, SIDES
16	MAY M0231425
17	SCREW, SM
18	MAY 67002918
19	WP67003924 Whirlpool Refrigerator Cover
20	MAY 67004260
21	HANDLE, BASKET/SHELF
22	Divider, Upper Basket
23	MAY 67001310
24	Cover, Lw Hinge (Black)
25	MAY 67004064
26	MAY 67004065
27	SHAFT, RACK
28A	MAY 67004217
28	MAY 67004218
29	SCREW 1“
30	BRACKET, DRAWER SLIDE (RT)
30	BRACKET, DRAWER SLIDE (LT)
31	MAY 67004215
32	GEAR (RT)
33	PLUG, BUTTON
34	WP489069 Whirlpool Compactor Screw
35	Rack, Ice
36	WP10972101 Whirlpool Refrigerator Spacer
37	MAY M0230919
38	WPW10280613 Whirlpool Refrigerator Bracket
38A	WPW10280608 Whirlpool Refrigerator Bracket
