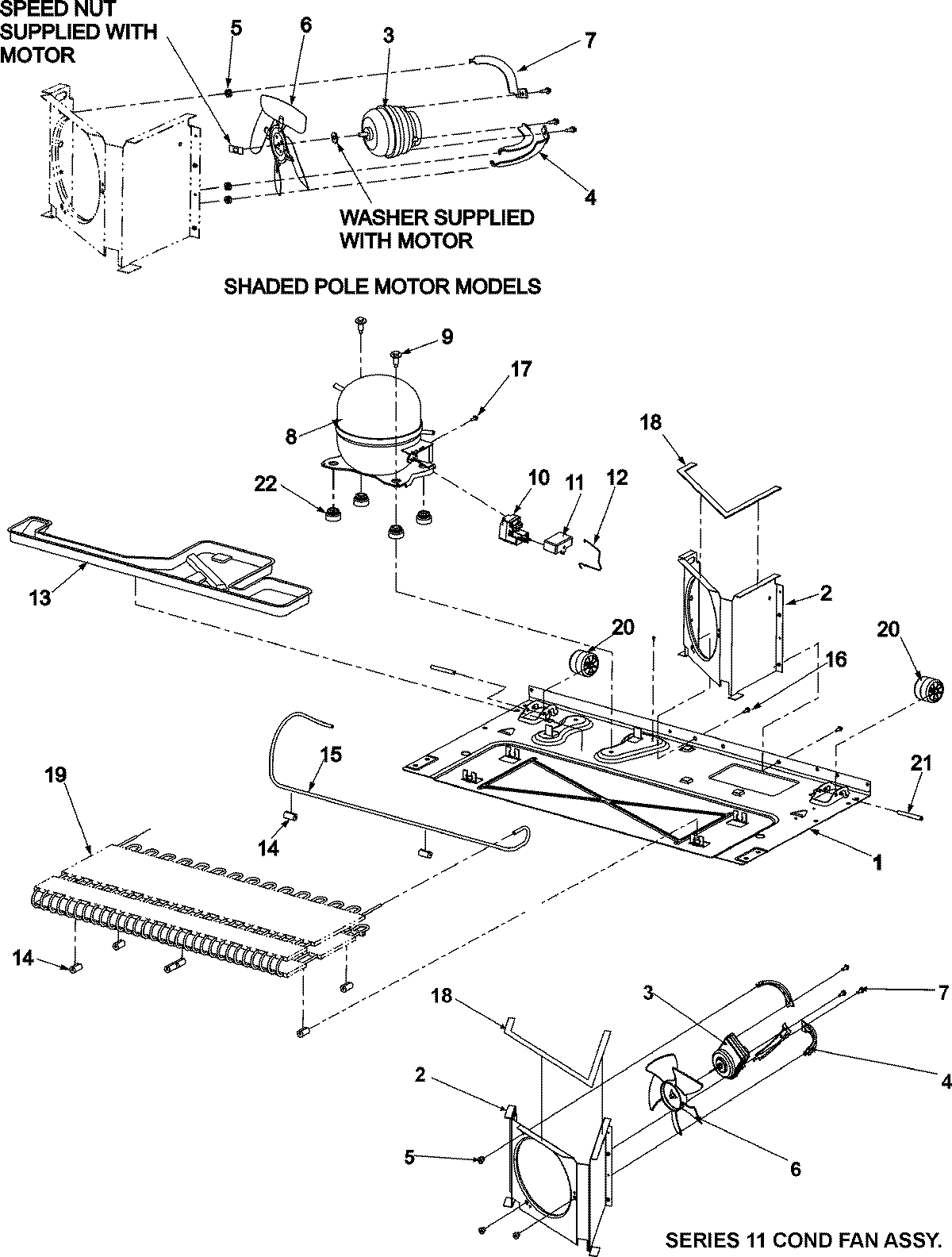

ABB2224DEW 02 – COMPRESSOR

Products

Position	Product
NI	MAY 67003823
1	MAY 67001089
2	SHROUD, CONDENSER FAN
3	833697 Whirlpool Condenser Fan Motor
3	MAY 67004432
4	Bracket, Motor (3)
4	MAY 67004953
5	GROMMET, BRACKET
6	W10156818 Whirlpool Refrigerator Fan Blade
6	WP12587601 Whirlpool Refrigerator Condenser Blade
7	Screw (3)
8	W10160407 Whirlpool Refrigerator Compressor
9	MAY 67003790
10	W10613606 Whirlpool Refrigerator Start Device Relay Overload
11	CAPACITOR
12	MAY 12576801
13	MAY 67001091
14	67005680 Whirlpool Refrigerator Condenser Grommet
15	MAY 67004262
16	MAY M0238616
17	MAY M0231604
18	WP854334 Whirlpool Air Conditioner Sealing Strip
19	MAY 67004263
20	WP67005149 Whirlpool Roller
21	67006434 Whirlpool Axle Pin
22	67003493 Whirlpool Refrigerator Compressor Grommet
