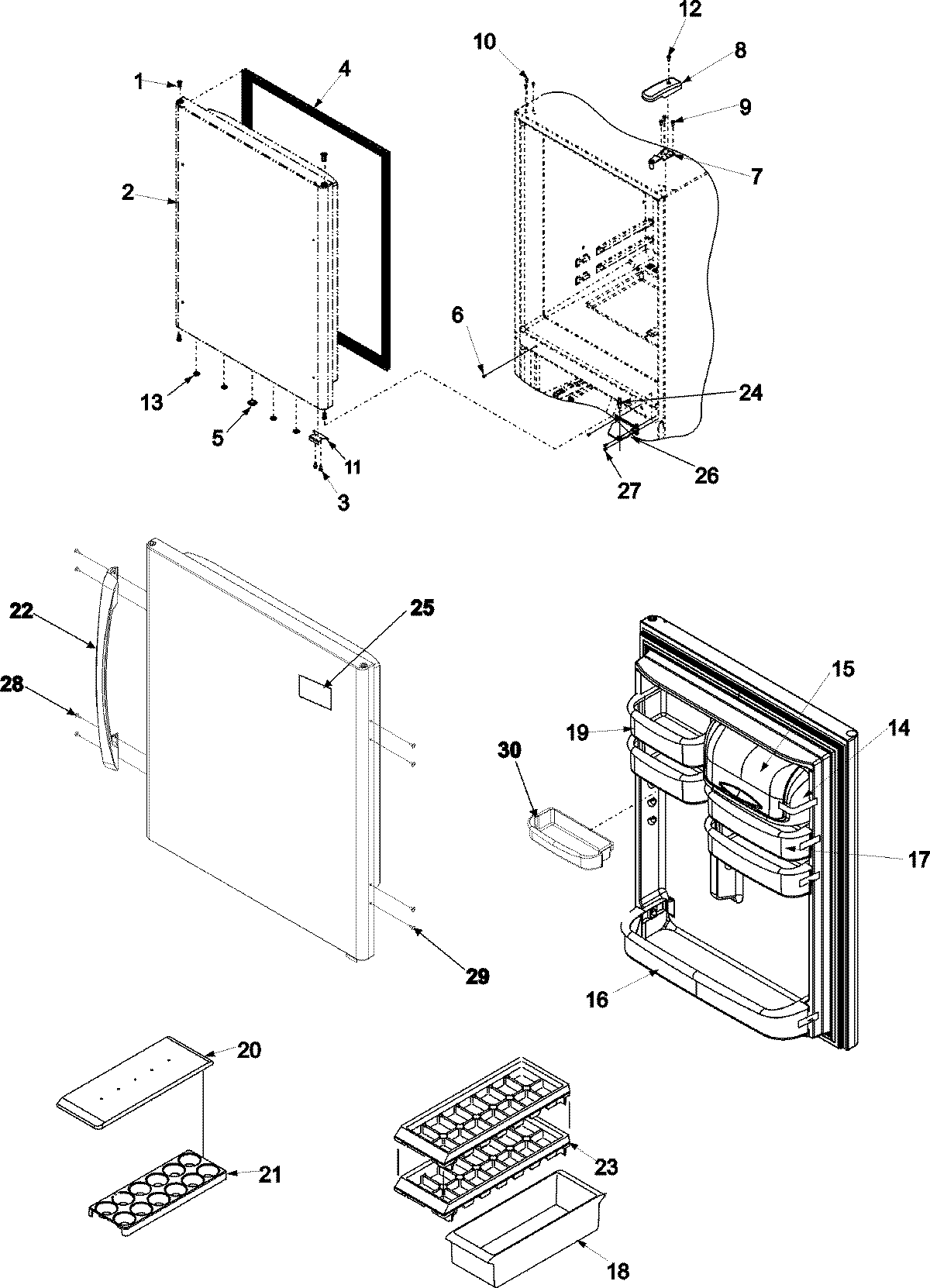

ABB2224DEW 08 – REFRIGERATOR DOOR

Products

PositionProduct
1WP67004977 Whirlpool Refrigerator Door Hinge Bushing
2DOOR ASSY., REF. FOAM (WHT)
3MAY M0211533
4W10443313 Whirlpool Door Gasket
5MAY A3080002
6WP489349 Whirlpool Refrigerator Screw
7WP12566606ED Whirlpool Refrigerator Door Hinge
867001014 Whirlpool Refrigerator Top Hinge Cover White
9MAY M0238731
10MAY M0310729
1112968202W Whirlpool Refrigerator Door Stop
12WP8281196 Whirlpool Screw
1310712401 Whirlpool Refrigerator Vent Plug (White)
14WP67001279 Whirlpool Refrigerator Dairy Tray
15WP12744905 Whirlpool Refrigerator Compressor Door
1667001019 Whirlpool Door Shelf Trim
17WPW10324005 Whirlpool Refrigerator Cantilever Bin
18MAY 10423131
19MAY 67004449
20MAY 10436404
21MAY 10436506
22MAY 67003961
23MAY 67001205
24WP67006642 Whirlpool Refrigerator Pin
25Y12528501 Whirlpool Refrigerator Nameplate
26WP12607104ED Whirlpool Refrigerator Door Hinge
26WP12607103WD Whirlpool Refrigerator Center Hinge
27MAY M0226233
2867006806 Whirlpool Refrigerator Screw HI Torque Black
28WP67004954 Whirlpool Refrigerator Screw
29MAY 12246601
30MAY 67004451
