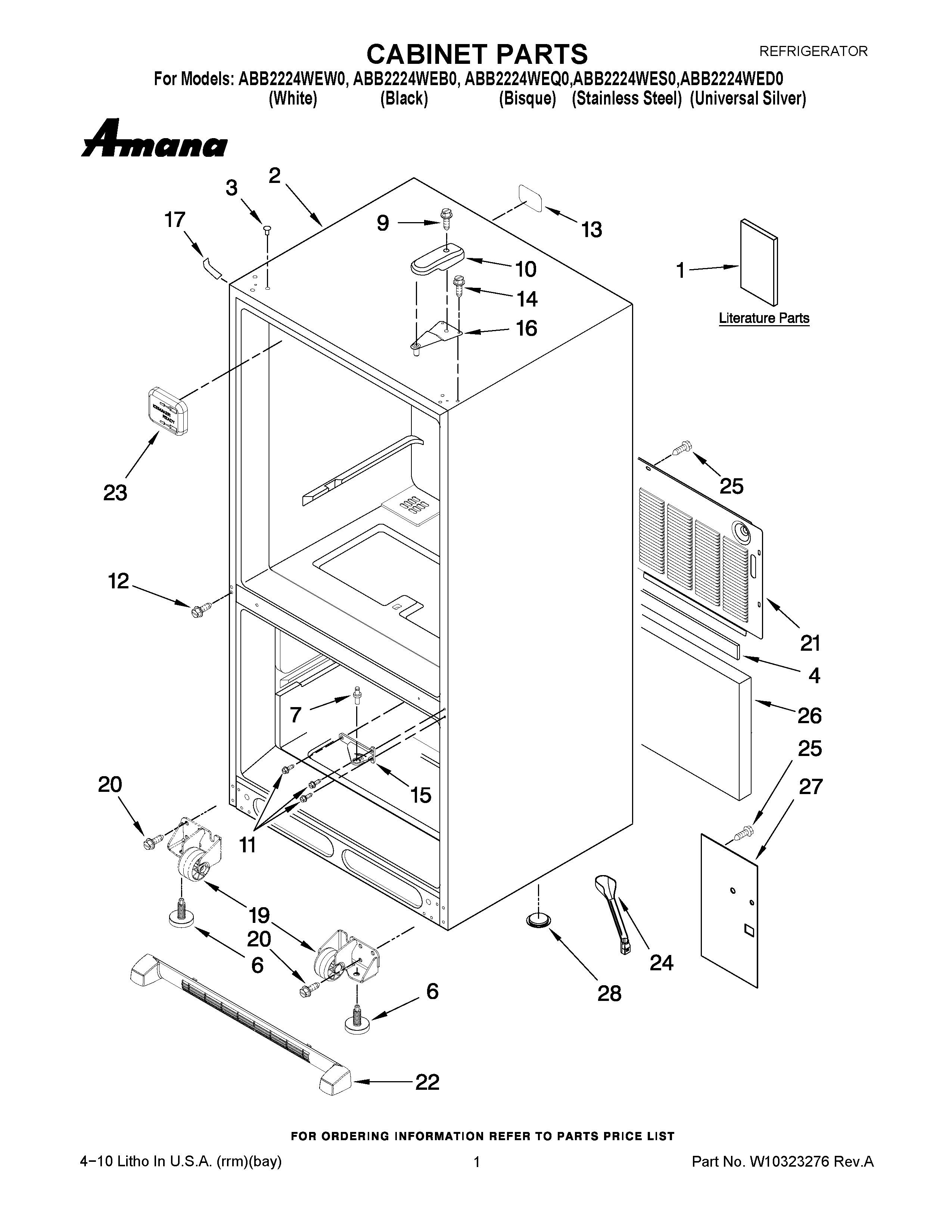

ABB2224WEB0 01 – CABINET PARTS

Products

Position	Product
1	MAY W10297564
1	MAY W10308611
1	MAY W10208785
2	LINER (NOT A SERVICEABLE PART)
3	MAY M0310729
3	MAY M0310731
3	MAY M0310738
4	MAY B5759655
6	Brake, Foot
7	MAY 10351006
9	MAY 12992602
10	MAY 12477601W
10	COVER, HINGE(BLACK)
10	MAY 12477601C
11	MAY 12990101
12	SCREW (6)
13	LABEL-FILL TUBE
14	SCREW (6)
15	MAY 12607104ED
15	MAY 12607103WD
16	MAY 12566606ED
17	COVER, CORNER (BLACK)
17	Cover, Corner (Bisque)
17	Cover, Corner (2) (White)
19	ROLLER ASSY. (FRONT) (RIGHT)
19	ROLLER ASSY. (FRONT) (LEFT)
20	Screw (8)
21	MAY W10210979
22	MAY W10236195
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (BISQUE)
22	MAY W10236196
23	COVER-FILL TUBE
24	MAY W10210988
25	SCREW (10)
26	Insulation, Sound
27	MAY W10217701
28	A3076901 Whirlpool Refrigerator Plug
