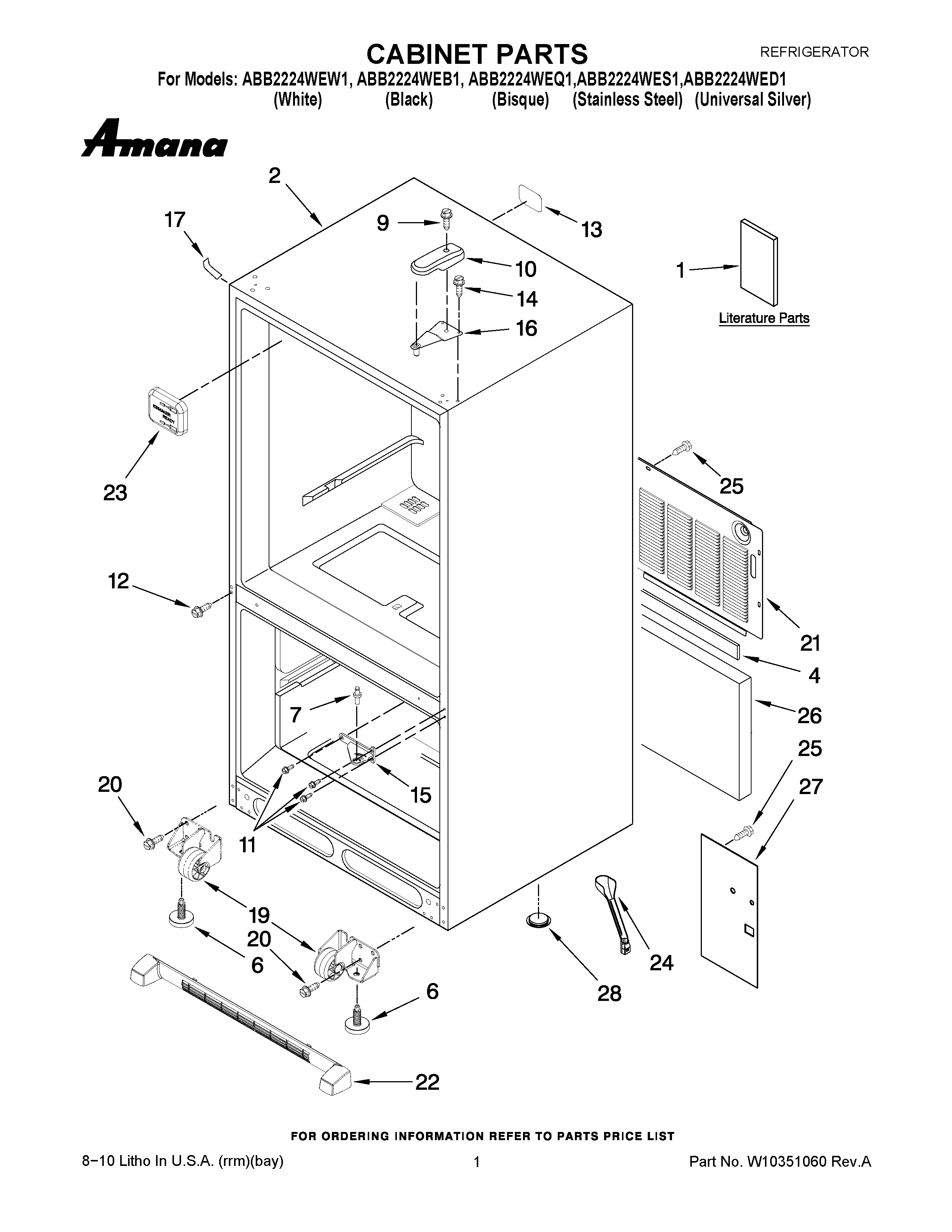

ABB2224WEB1 01 – CABINET PARTS

Products

Position	Product
1	MAY W10208785
1	MAY W10322959
1	MAY W10297564
2	LINER (NOT A SERVICEABLE PART)
4	MAY B5759655
6	Brake, Foot
7	MAY 10351006
9	MAY 12992602
10	MAY 12477601W
10	COVER, HINGE(BLACK)
10	MAY 12477601C
11	MAY 12990101
12	SCREW (6)
13	LABEL-FILL TUBE
14	SCREW (6)
15	MAY 12607103WD
15	MAY 12607104ED
16	MAY 12566606ED
17	COVER, CORNER (BLACK)
17	Cover, Corner (Bisque)
17	Cover, Corner (2) (White)
19	ROLLER ASSY. (FRONT) (RIGHT)
19	ROLLER ASSY. (FRONT) (LEFT)
20	Screw (8)
21	MAY W10210979
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (BISQUE)
22	MAY W10236195
22	MAY W10236196
23	COVER-FILL TUBE
24	MAY W10210988
25	SCREW (10)
26	Insulation, Sound
27	MAY W10217701
28	A3076901 Whirlpool Refrigerator Plug
