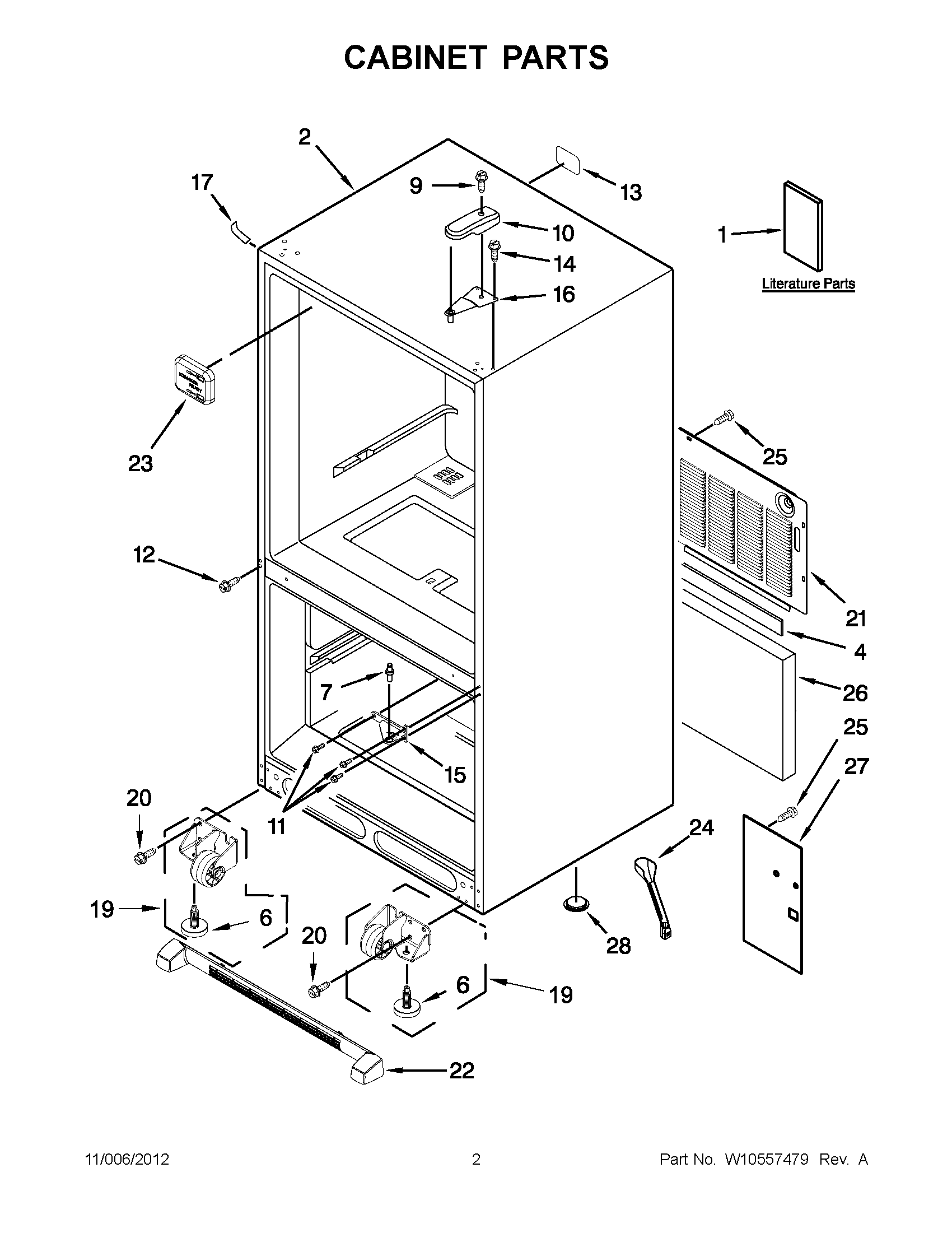

ABB2224WEB3 01 – CABINET PARTS

Products

Position	Product
1	MAY W10517966
1	MAY W10366212SP
1	MAY W10297564
2	LINER (NOT A SERVICEABLE PART)
4	MAY B5759655
6	Brake, Foot
7	MAY 10351006
9	MAY 12992602
10	MAY 12477601W
10	COVER, HINGE(BLACK)
11	MAY 12990101
12	MAY W10339086
13	LABEL-FILL TUBE
14	SCREW (6)
15	MAY 12607104ED
15	MAY 12607103WD
16	MAY 12566606ED
17	Cover, Corner (2) (White)
17	COVER, CORNER (BLACK)
19	ROLLER ASSEMBLY (LEFT HAND)
19	ROLLER ASSEMBLY (RIGHT HAND)
20	Screw (8)
21	MAY W10210979
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (WHITE)
23	COVER-FILL TUBE
24	TUBE-DRAIN
25	SCREW (10)
26	Insulation, Sound
27	MAY W10217701
28	A3076901 Whirlpool Refrigerator Plug
