ABB2224WES2 07 – SHELF PARTS – Aparts

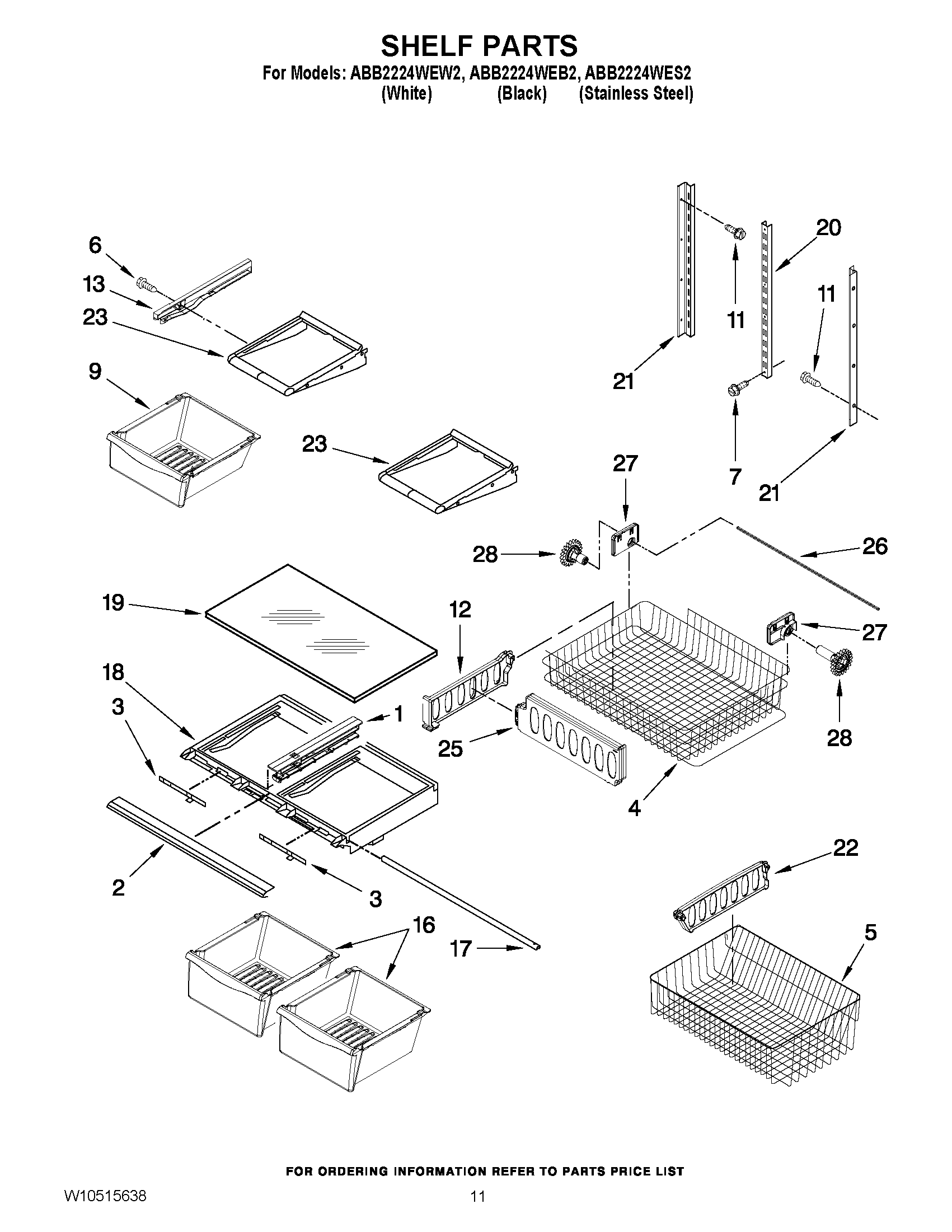

ABB2224WES2 07 – SHELF PARTS

Products

Position	Product
1	MAY 12530701N
2	MAY W10231341
3	MAY 12530805SP
4	BASKET, UPPER
5	MAY W10150038
6	MAY 12990302V
7	MAY W10215666
9	MAY 12656404V
11	MAY 12990513
12	Divider, Upper Basket
13	MAY 12656601V
13	MAY 12656602V
16	MAY 12530505N
17	BRACE, CRISPER FRAME
18	FRAME, CRISPER
19	MAY 12204822N
20	MAY W10273463
21	MAY W10251969
22	Divider, Lower Basket
23	MAY 12463509
25	DIVIDER, UPPER
26	MAY 12812905WD
27	MOUNT-GEAR (LEFT HAND)
27	MOUNT-GEAR (RIGHT HAND)
28	MAY W10474716
28	MAY W10474715
