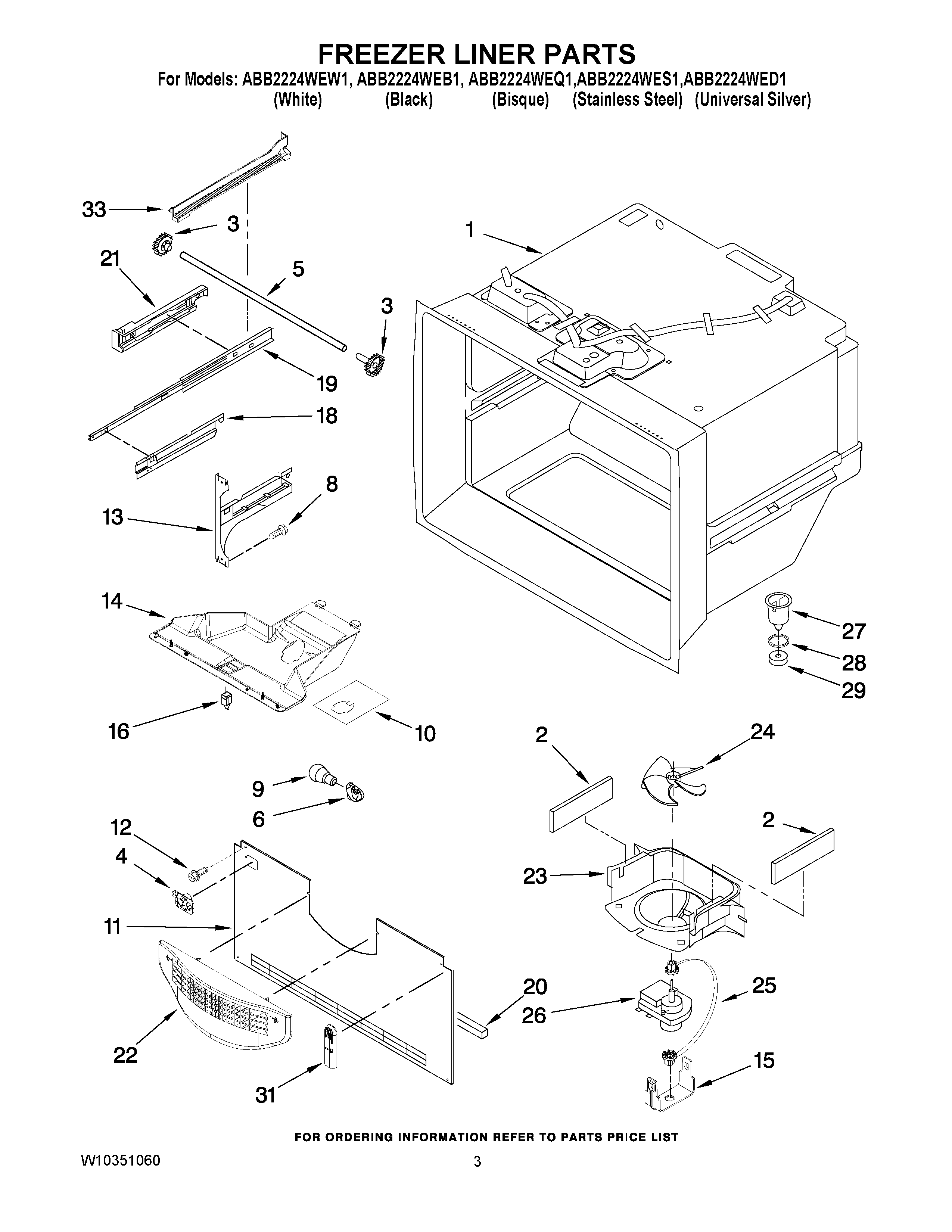

ABB2224WEW1 02 – FREEZER LINER PARTSadmin2025-04-26T08:56:01+00:00ABB2224WEW1 02 – FREEZER LINER PARTS
Products
| Position | Product |
|---|
| 1 | LINER (NOT A SERVICEABLE PART) |
| 2 | Gasket, Bottom |
| 3 | 12002497 Whirlpool Refrigerator Drawer Gear Kit |
| 4 | MAY 12932103 |
| 5 | MAY 12812902WD |
| 6 | Socket, Light |
| 8 | Screw (8) |
| 9 | BULB, LIGHT (2) |
| 10 | FOIL-FZ LIGHT |
| 11 | MAY W10308415 |
| 12 | SCREW (10) |
| 13 | BRACKET, DOOR (LEFT) |
| 13 | BRACKET, DOOR (RIGHT) |
| 14 | MODULE-FZ LIGHT |
| 15 | CLIP, EVAP. MOTOR |
| 16 | MAY 12466105 |
| 18 | CRADLE-BASKET (RIGHT HAND) |
| 18 | CRADLE-BASKET (LEFT HAND) |
| 19 | MAY W10120018 |
| 20 | Gasket, Bottom |
| 21 | ADAPTER, SLIDE (RIGHT HAND) |
| 21 | ADAPTER, SLIDE (LEFT HAND) |
| 22 | Grille, Fz Air |
| 23 | SHROUD, EVAP.FAN |
| 24 | Blade, Fan (Evaporator) |
| 25 | MAY W10121318 |
| 26 | MAY W10128551 |
| 27 | MAY D7753903 |
| 28 | MAY M0500703 |
| 29 | Gasket |
| 31 | MAY 12815301 |
| 33 | RACK-SIDE (RIGHT) |
| 33 | RACK-SIDE (LEFT) |
