ABB2227DEB 03 – CONTROLS

Products

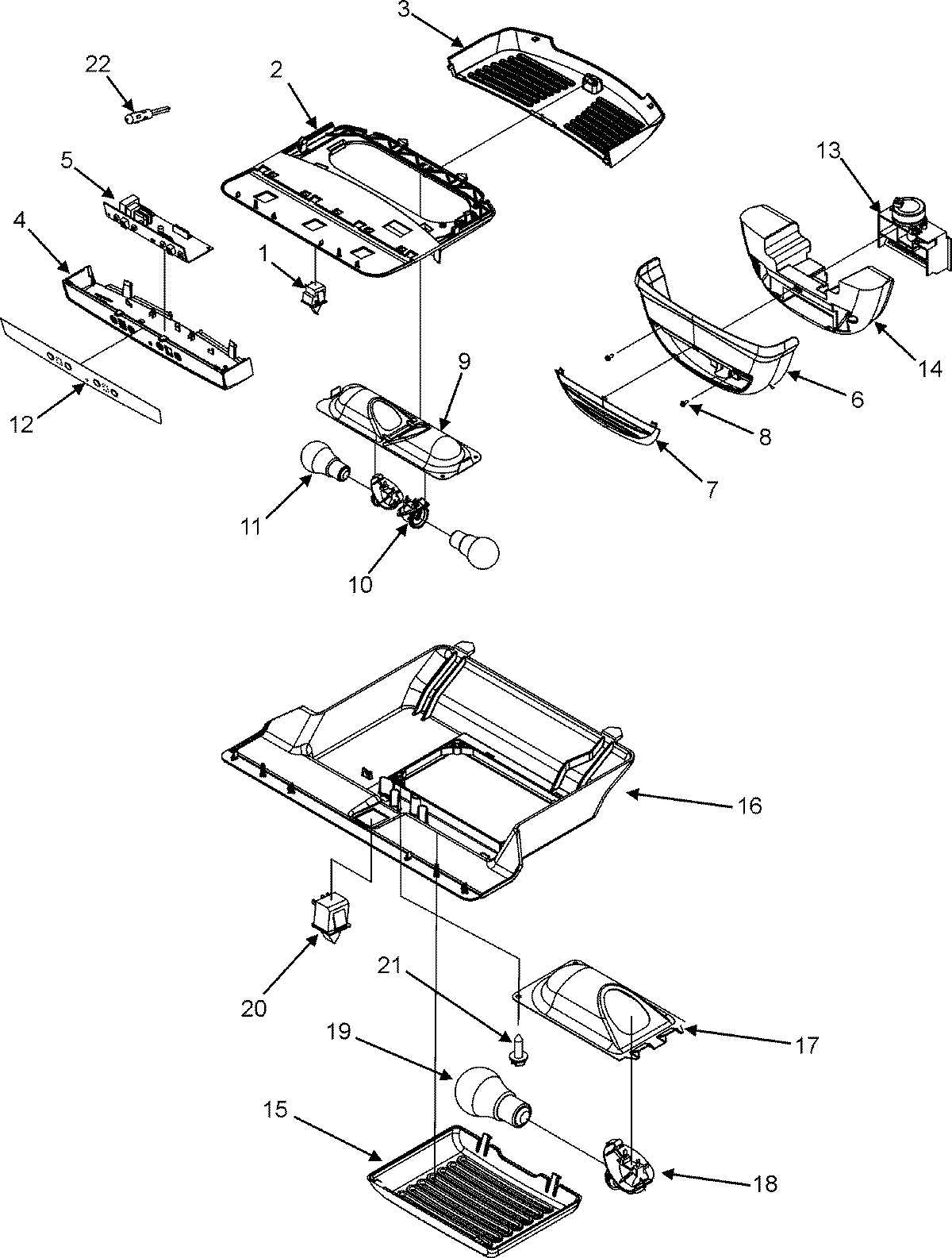

PositionProduct
NIMAY 67006094
NIMAY 67003908
NIW11619328 Whirlpool Wire Harness
1Switch, Light (2)
2MAY Y67003896
3W11284721 Whirlpool Refrigerator Cover
4WPW10464769 Whirlpool Refrigerator Housing
5MAY 12002445
6WP12806701 Whirlpool Refrigerator Box Cover
767003900 Whirlpool Refrigerator Insert Damper Cover
8MAY M0213132
912806601 Whirlpool Refrigerator Light Housing
12Overlay
13WP67003903 Whirlpool Refrigerator Damper Control
13WPW10196393 Whirlpool Control Damper
14WP67003904 Whirlpool Refrigerator Insulation
15MAY 67003905
1667003906 Whirlpool Refrigerator Control Module
17MAY 67001035
18Socket, Light (2)
19RANGE ONLY 40W 120V APPL BULB
20MAY 12466101
21MAY M0226528
2212002355 Whirlpool Refrigerator Thermistor Kit
