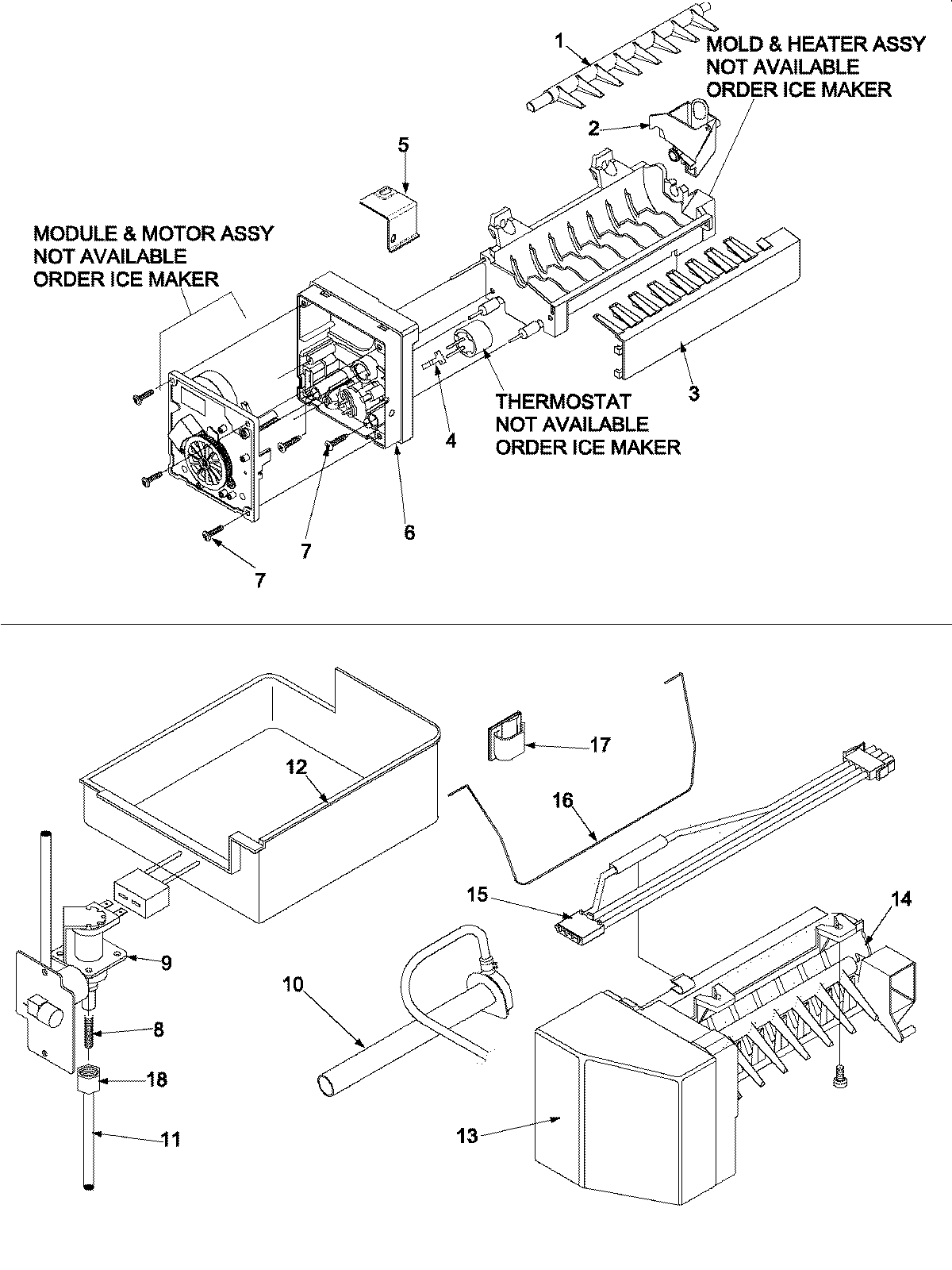

ABB2227DEB 07 – OPTIONAL ICE MAKER KIT IC11B P1328003W

Products

Position	Product
NI	681390 Whirlpool Refrigerator Screw
NI	Clip
NI	MAY A3223101
NI	MAY 67001258
1	WP627843 Whirlpool Refrigerator Ejector Arm
2	WP628356 Whirlpool Refrigerator Fill Cup
3	WP2182124 Whirlpool Refrigerator Stripper Arm
4	WP2315522 Whirlpool Refrigerator Clip
5	BRACKET, MODULE & HEATER
6	WP2195914 Whirlpool Refrigerator Ice Maker Housing
7	SCREW
8	WPM0104106 Whirlpool Refrigerator Clip
9	WP67003753 Whirlpool Refrigerator Inlet Valve
10	ELBOW, FILL TUBE
11	MAY B5705323
12	WP67001255 Whirlpool Ice Bucket
13	WPW10289690 Whirlpool Ice Maker Cover
14	MAY D7824706
15	WPD7813010 Whirlpool Refrigerator Wire Harness
16	ARM-SHUT
17	W10833902 Whirlpool Refrigerator Clamp
18	MAY 95108-1
