ABB2227DEQ 02 – COMPRESSOR

Products

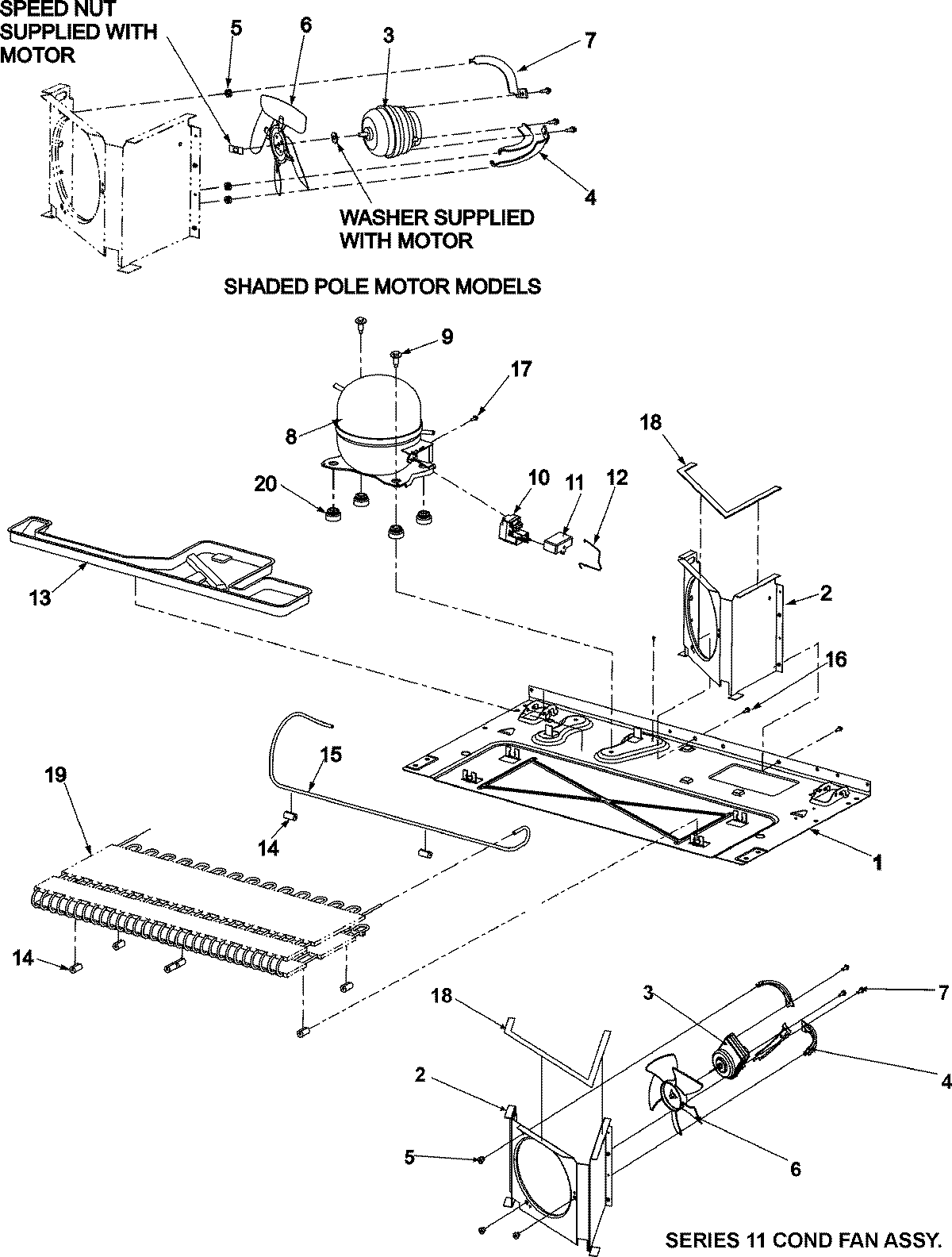

Position	Product
NI	MAY 67003823
1	BASEPAN, MACHINE COMPARTMENT
1	MAY 67001089
2	SHROUD, CONDENSER FAN
3	MAY 67004432
3	833697 Whirlpool Condenser Fan Motor
4	Bracket, Motor (3)
4	MAY 67004953
5	GROMMET, BRACKET
6	W10156818 Whirlpool Refrigerator Fan Blade
6	WP12587601 Whirlpool Refrigerator Condenser Blade
7	WP67004954 Whirlpool Refrigerator Screw
7	Screw (3)
8	W10160407 Whirlpool Refrigerator Compressor
9	MAY M0221523
10	W10613606 Whirlpool Refrigerator Start Device Relay Overload
11	Capacitor
11	CAPACITOR
12	MAY 12576801
12	MAY 67007052
13	MAY 67001091
14	67005680 Whirlpool Refrigerator Condenser Grommet
15	MAY 67004262
16	Screw (10)
16	MAY M0238616
17	MAY M0231604
17	MAY 67006433
18	WP854334 Whirlpool Air Conditioner Sealing Strip
19	MAY 67004263
20	67003493 Whirlpool Refrigerator Compressor Grommet
