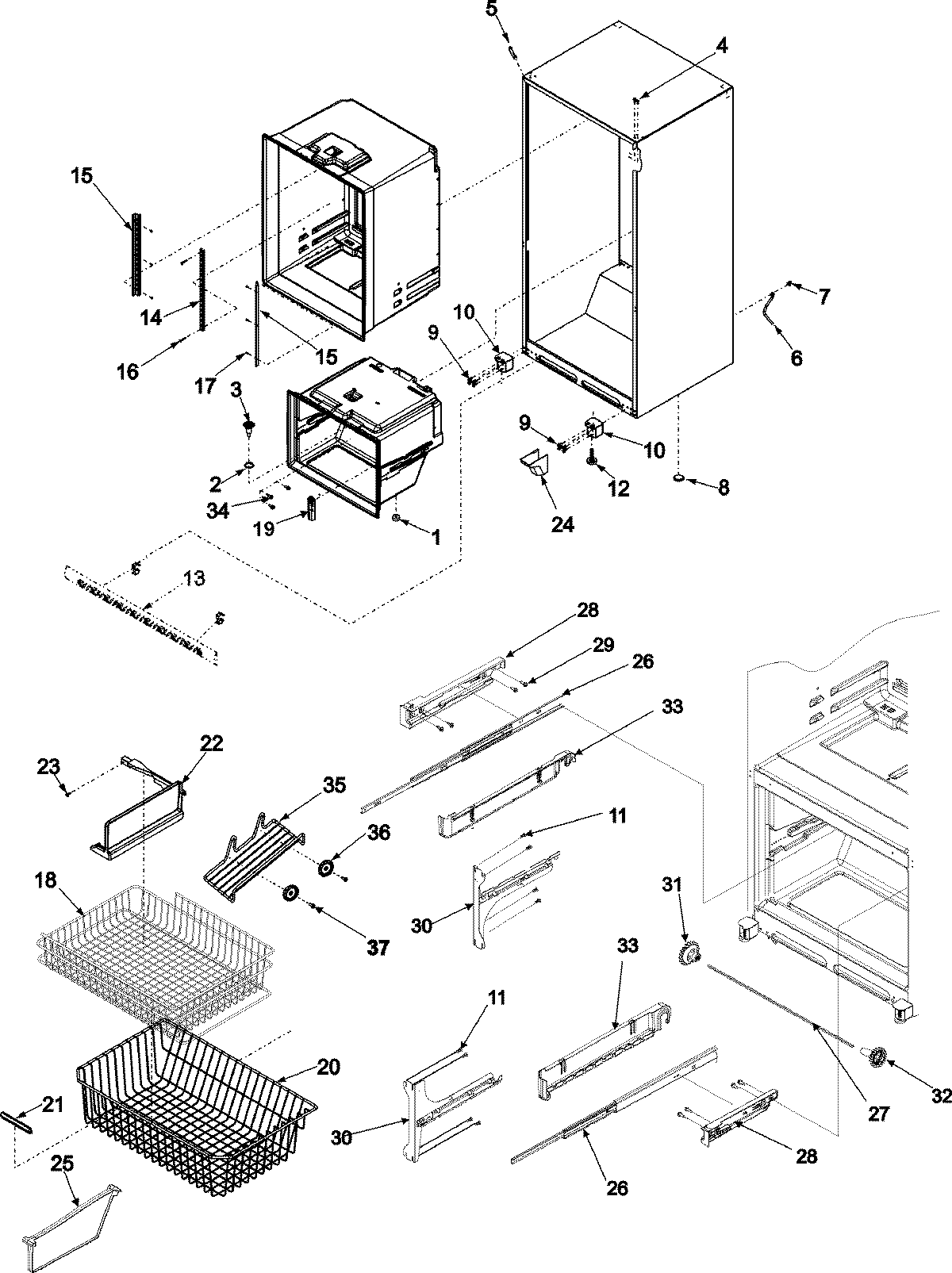

ABB2227DES 06 – INTERIOR CABINET & FREEZER SHELVING

Products

PositionProduct
1Gasket
2MAY M0500703
3MAY D7753903
4MAY A4539607
567003485 Whirlpool Refrigerator Corner Cover (Black)
6MAY 67001066
767001067 Whirlpool Refrigerator Drain Tube Clip
8A3076901 Whirlpool Refrigerator Plug
9MAY 67003858
9MAY 67006564
10HINGE, BOTTOM E-CT (BLK)
1012906303WD Whirlpool Refrigerator Bracket
11MAY M0211018
12MAY 10354001
13Grille Assembly (Includes Clips) (Black)
1467001073 Whirlpool Refrigerator Center Ladder
15LADDER, SIDES
16W10709795 Whirlpool Refrigerator Screw
16MAY M0231425
17SCREW, SM
17MAY 67006400
18MAY 67002918
19WP67003924 Whirlpool Refrigerator Cover
20MAY 67004260
21HANDLE, BASKET/SHELF
22Divider, Upper Basket
23MAY 67001310
24Cover, Lw Hinge (Black)
25MAY 67004064
26W11658402 Whirlpool Drawer Slide Rail
26MAY 67004065
27SHAFT, RACK
28AMAY 67004218
28MAY 67004217
29SCREW 1“
30BRACKET, DRAWER SLIDE (RT)
30BRACKET, DRAWER SLIDE (LT)
31MAY 67004215
32GEAR (RT)
33WPW10280613 Whirlpool Refrigerator Bracket
33AWPW10280608 Whirlpool Refrigerator Bracket
34MAY M0238616
35Rack, Ice
36WP10972101 Whirlpool Refrigerator Spacer
37WP67006908 Whirlpool Refrigerator Screw
37MAY M0230919
