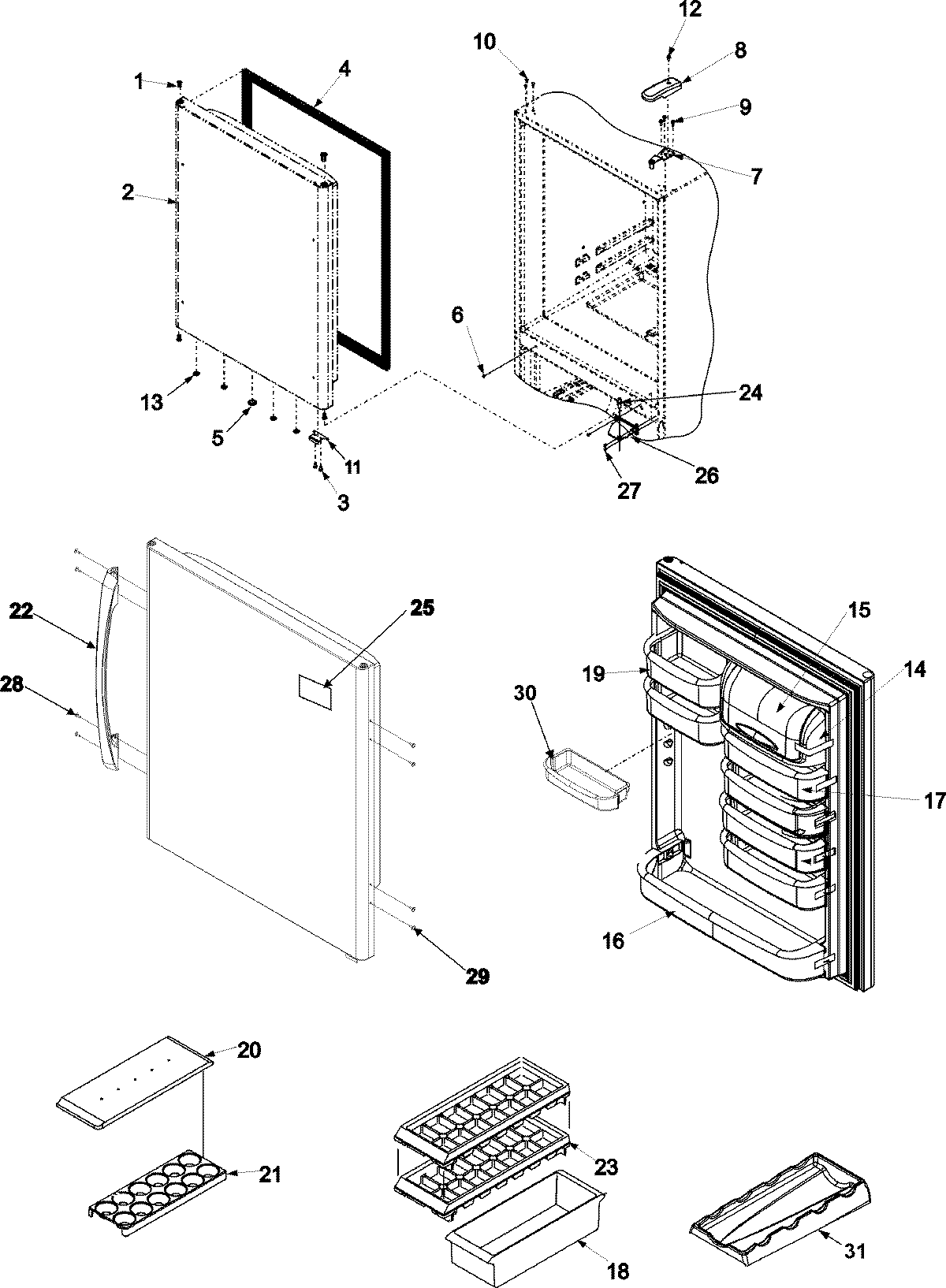

ABB2227DEW 08 – REFRIGERATOR DOOR

Products

Position	Product
1	WP67004977 Whirlpool Refrigerator Door Hinge Bushing
2	DOOR ASSY., REF. FOAM (WHT)
3	WP98165 Whirlpool Screw
3	MAY M0211533
4	W10443313 Whirlpool Door Gasket
5	MAY A3080002
5	10712401 Whirlpool Refrigerator Vent Plug (White)
7	WP12566606ED Whirlpool Refrigerator Door Hinge
8	67001014 Whirlpool Refrigerator Top Hinge Cover White
9	MAY M0238731
9	WP489349 Whirlpool Refrigerator Screw
10	MAY M0310729
11	12968202W Whirlpool Refrigerator Door Stop
12	WP8281196 Whirlpool Screw
14	WP67001279 Whirlpool Refrigerator Dairy Tray
15	WP12744905 Whirlpool Refrigerator Compressor Door
16	67001019 Whirlpool Door Shelf Trim
17	GRIPPER, BUCKET
17	WPW10371193 Whirlpool Refrigerator Door Bin
18	MAY 10423131
19	MAY 67004449
20	MAY 10436404
21	MAY 10436506
22	MAY 67006721
22	MAY 67003961
23	MAY 67001205
24	WP67006642 Whirlpool Refrigerator Pin
25	Y12528501 Whirlpool Refrigerator Nameplate
26	WP12607103WD Whirlpool Refrigerator Center Hinge
27	MAY M0226233
28	MAY 67004708
28	MAY 12990202
29	MAY 12246601
30	MAY 67004469
31	67001656 Whirlpool Refrigerator Bottle Trivet
