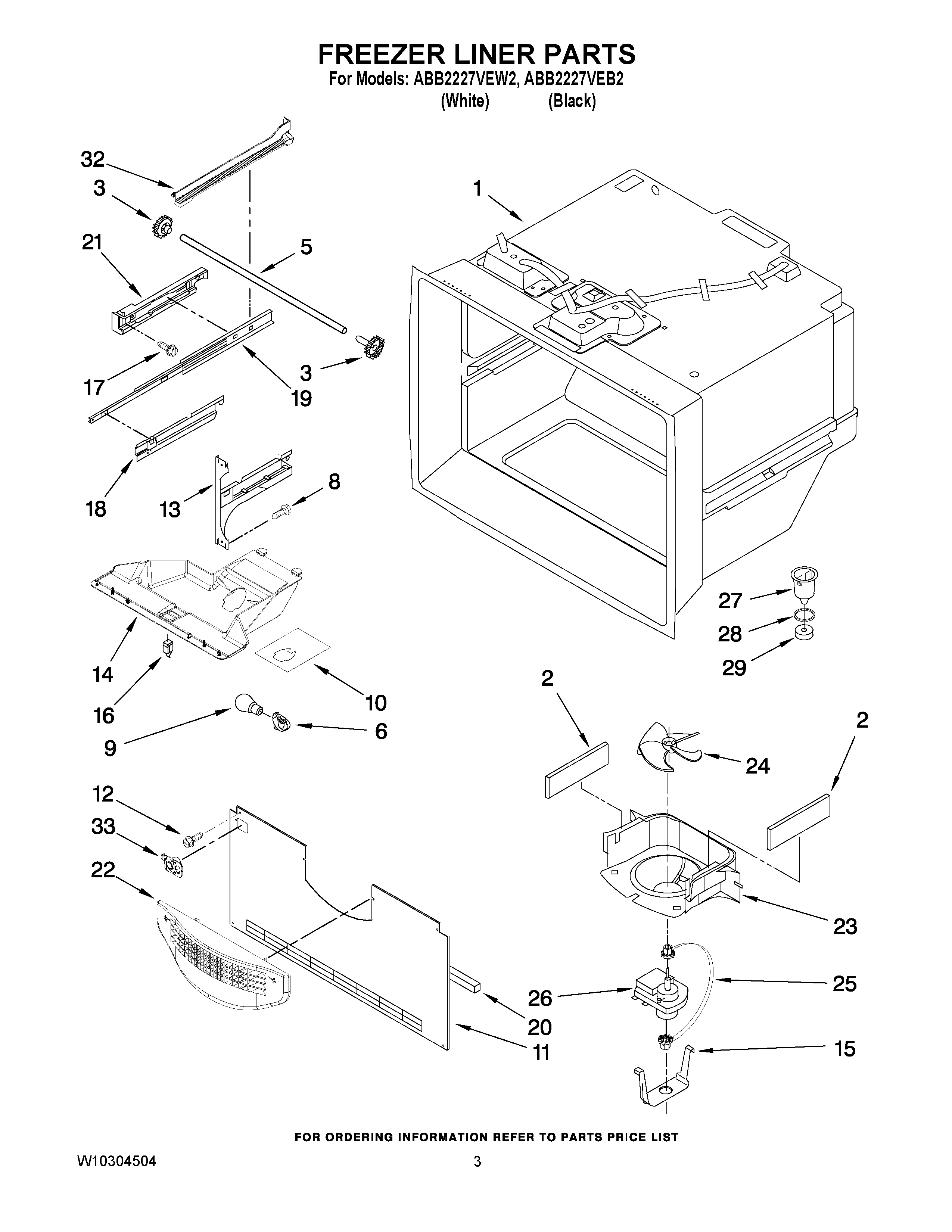

ABB2227VEW2 02 – FREEZER LINER PARTS

ABB2227VEW2 02 – FREEZER LINER PARTS

Written by

in

ABB2227VEW2 02 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Gasket, Bottom
312002497 Whirlpool Refrigerator Drawer Gear Kit
5MAY 12812902WD
6Socket, Light
8Screw (8)
9Bulb, Light (2)
10FOIL-FZ LIGHT
11MAY 12226111
12SCREW (10)
13BRACKET, DOOR (LEFT)
13BRACKET, DOOR (RIGHT)
14MODULE-FZ LIGHT
15MAY 10623002
16MAY 12466105
17Screw (6)
18CRADLE-BASKET (LEFT HAND)
18CRADLE-BASKET (RIGHT HAND)
19MAY W10120018
20MAY A3189395
21MAY W10261204
21MAY W10261203
22Grille, Fz Air
23SHROUD, EVAP.FAN
24Blade, Fan (Evaporator)
25MAY W10121318
26MAY W10128551
27MAY D7753903
28MAY M0500703
29Gasket
32RACK-SIDE (LEFT)
32RACK-SIDE (RIGHT)
33MAY 12932103
