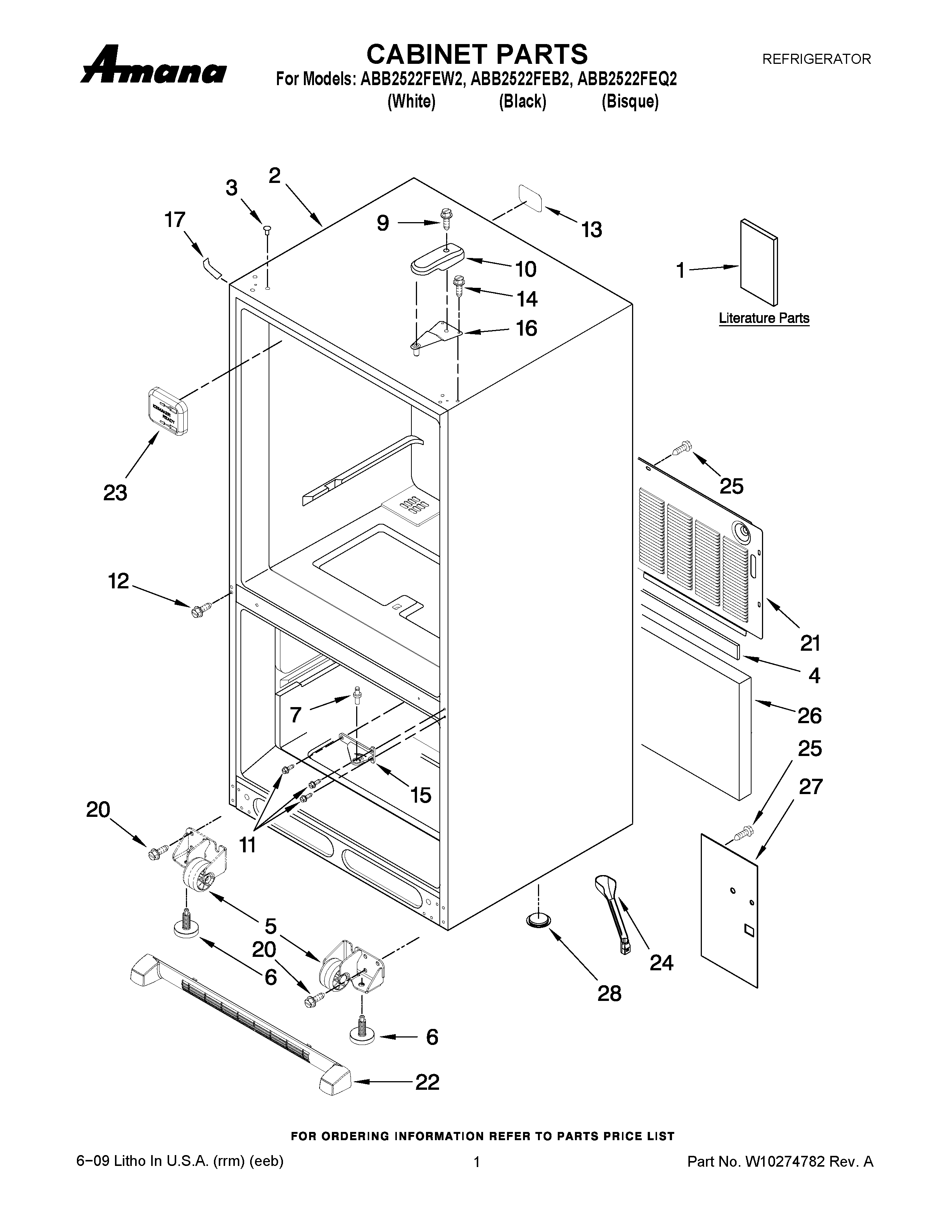

ABB2522FEB2 01 – CABINET PARTS

Products

Position	Product
1	MAY W10238840
1	MAY W10183261
1	MAY W10175445
2	LINER (NOT A SERVICEABLE PART)
3	MAY M0310731
3	MAY M0310729
4	MAY B5759655
5	ROLLER ASSEMBLY (RIGHT SIDE)
5	ROLLER ASSEMBLY (LEFT SIDE)
6	Brake, Foot
7	MAY 10351006
9	MAY 12992602
10	COVER, HINGE(BLACK)
10	MAY 12477601C
10	MAY 12477601W
11	MAY 12990101
12	SCREW (6)
13	LABEL-FILL TUBE
14	SCREW (6)
15	MAY 12607103WD
15	MAY 12607104ED
16	MAY 12566606ED
17	COVER, CORNER (BLACK)
17	Cover, Corner (Bisque)
17	Cover, Corner (2) (White)
20	Screw (8)
21	MAY W10211854
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (WHITE)
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
22	MAY 12880103Q
23	COVER-FILL TUBE
24	MAY W10210988
25	SCREW (10)
26	Insulation, Sound
27	MAY W10217701
28	A3076901 Whirlpool Refrigerator Plug
