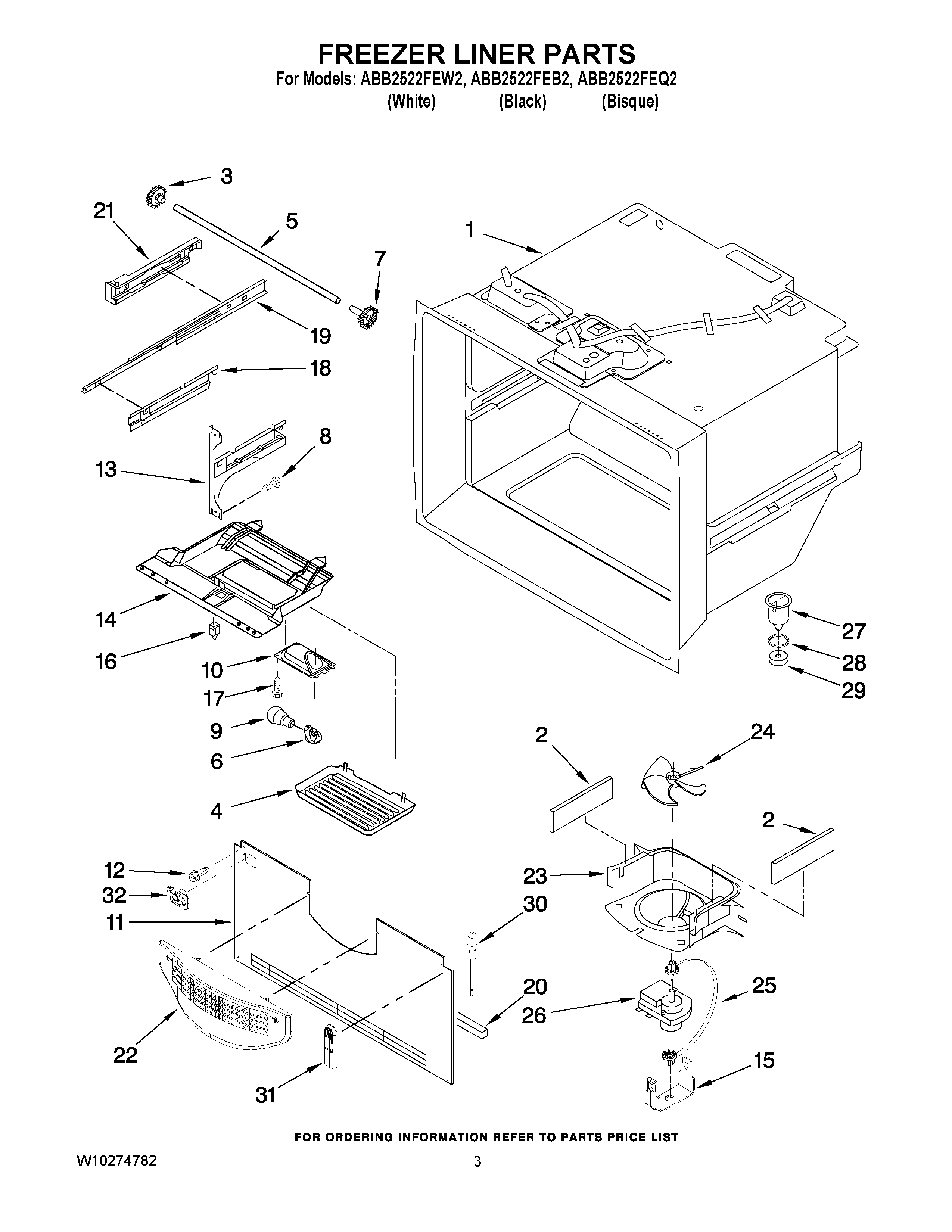

ABB2522FEB2 02 – FREEZER LINER PARTS

ABB2522FEB2 02 – FREEZER LINER PARTS

Written by

in

ABB2522FEB2 02 – FREEZER LINER PARTS

Products

PositionProduct
NIMAY 13014801
1LINER (NOT A SERVICEABLE PART)
2Gasket, Bottom
4MAY 12804901
5MAY 12812902WD
6Socket, Light
712002497 Whirlpool Refrigerator Drawer Gear Kit
8Screw (8)
9Bulb, Light (2)
10MAY 12476401V
11MAY 12226112
12SCREW (10)
13BRACKET, DOOR (RIGHT)
13BRACKET, DOOR (LEFT)
14MODULE, FZ CONTROL
15CLIP, EVAP. MOTOR
16MAY 12466105
17MAY 12991603V
18Bracket, Basket (Right)
18Bracket, Basket (Left)
19MAY W10120018
20GASKET, BOTTOM
21MAY W10128119
21MAY W10128118
22Grille, Fz Air
23SHROUD, EVAP.FAN
24Blade, Fan (Evaporator)
25MAY W10121318
26MAY W10128551
27MAY D7753903
28MAY M0500703
29Gasket
3012002355 Whirlpool Refrigerator Thermistor Kit
31MAY 12815301
32MAY 12932103
