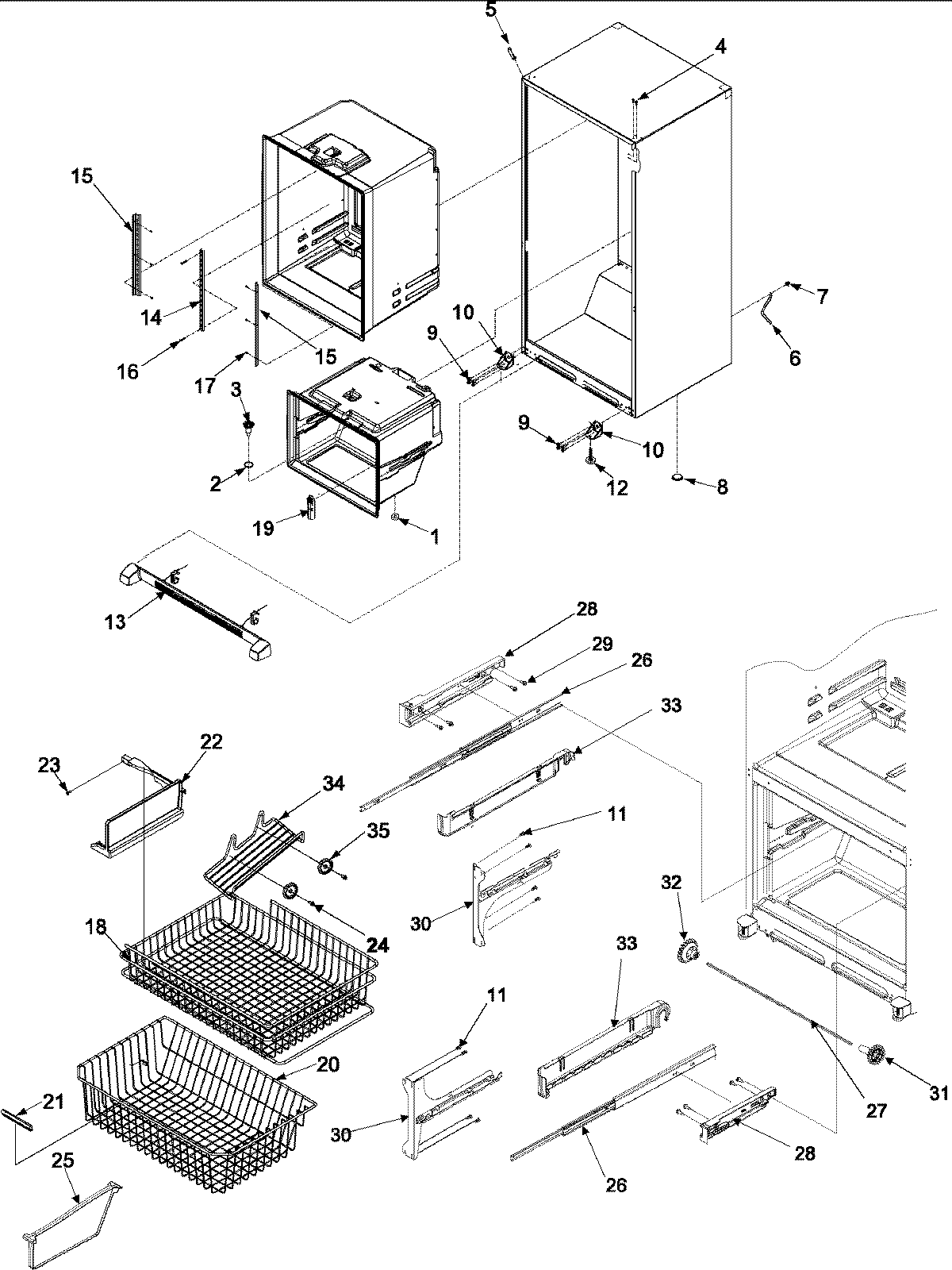

ABB2522FEQ 06 – INTERIOR CABINET & FREEZER SHELVING

Products

Position	Product
1	Gasket
2	MAY M0500703
3	MAY D7753903
4	MAY A4539607
5	MAY 67003486
6	MAY 67001066
7	67001067 Whirlpool Refrigerator Drain Tube Clip
8	A3076901 Whirlpool Refrigerator Plug
9	MAY 67006491
10	12906303WD Whirlpool Refrigerator Bracket
11	Screw (8)
12	W11177593 Whirlpool Leveling Feet
13	Clip, Grille
13	Grille Assembly (Includes Clips) (Bisque)
14	67001073 Whirlpool Refrigerator Center Ladder
15	LADDER, SIDES
16	W10709795 Whirlpool Refrigerator Screw
17	MAY 67006400
18	67004987 Whirlpool Refrigerator Upper Basket
19	WP67003924 Whirlpool Refrigerator Cover
20	WPW10503184 Whirlpool Refrigerator Freezer Basket
21	HANDLE, BASKET/SHELF
22	Divider, Upper Basket
23	MAY 67006608
24	WPW10280613 Whirlpool Refrigerator Bracket
24	WPW10280608 Whirlpool Refrigerator Bracket
25	Divider, Lower Basket
26	W11658402 Whirlpool Drawer Slide Rail
27	W11028221 Whirlpool Refrigerator Shaft
28	MAY 12002500
29	Screw (6)
30	BRACKET, DRAWER SLIDE (LT)
30	BRACKET, DRAWER SLIDE (RT)
31	GEAR (LT)
32	GEAR (RT)
33	MAY M0230919
34	WP10972101 Whirlpool Refrigerator Spacer
35	Rack, Ice
