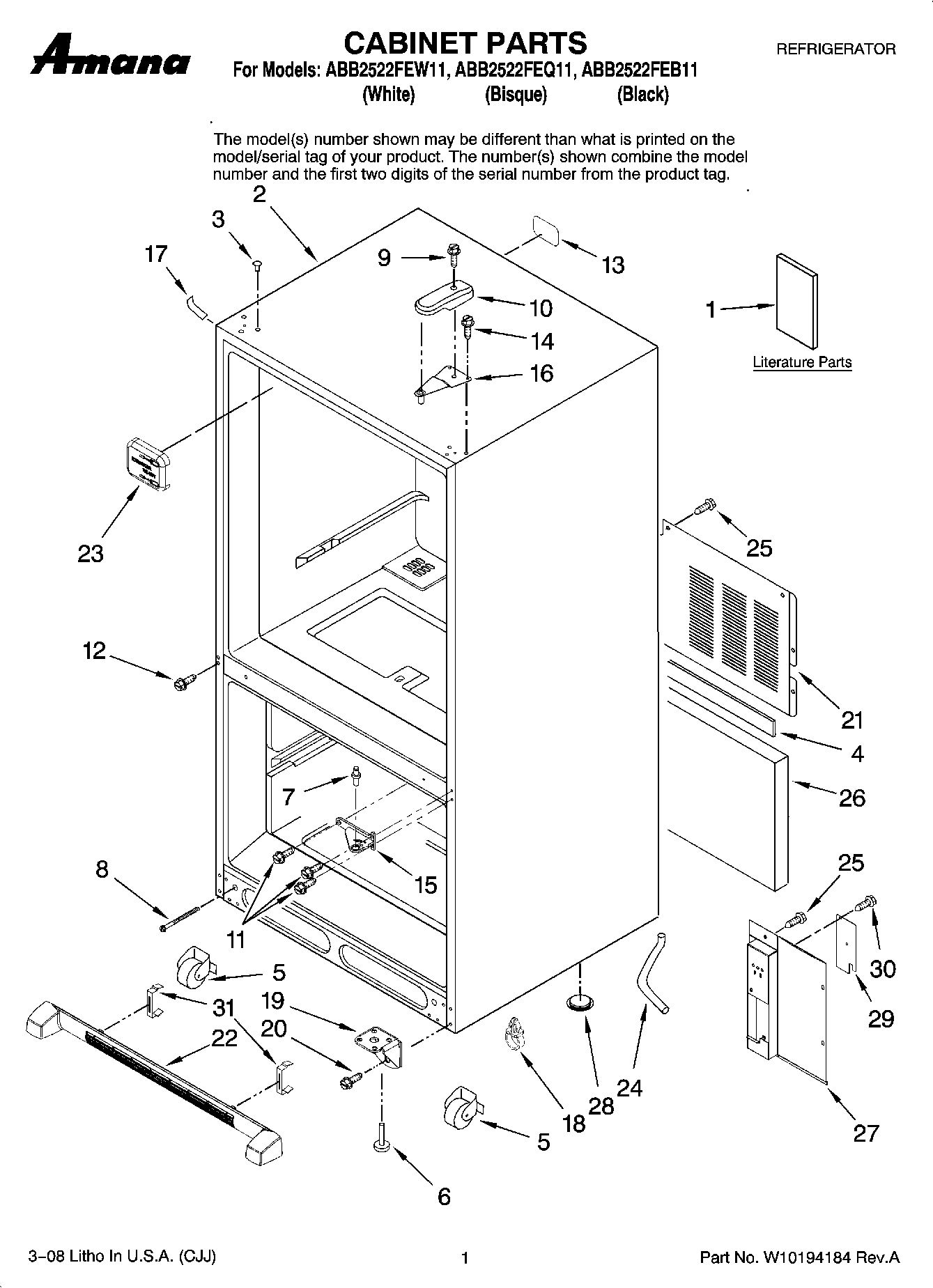

ABB2522FEQ11 01 – CABINET PARTS

Products

Position	Product
	MAY 8170942
1	MAY W10137539
1	SHEET, TECH DATA
1	MAY W10123464
3	WP67001130 Whirlpool Refrigerator White Button Plug
3	WP12246608 Whirlpool Refrigerator Button
3	MAY M0310738
4	Gasket
5	Roller Assy.(Rear)
6	W11177593 Whirlpool Leveling Feet
7	WP67006642 Whirlpool Refrigerator Pin
8	71003131 Whirlpool Oven Screw
9	WP8281196 Whirlpool Screw
10	MAY 67001013
10	67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
10	67001014 Whirlpool Refrigerator Top Hinge Cover White
11	MAY 67005822
12	WP67006380 Whirlpool Screw
13	MAY 67005064
14	WP489349 Whirlpool Refrigerator Screw
15	WP12607104ED Whirlpool Refrigerator Door Hinge
15	WP12607103WD Whirlpool Refrigerator Center Hinge
16	Hinge, Top
17	MAY 67003486
17	67003484 Whirlpool Refrigerator White Corner Cover
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	MAY W10157973
19	12906303WD Whirlpool Refrigerator Bracket
20	MAY 67006564
21	MAY 67006101
22	WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
22	Grille Assembly (Includes Clips) (Bisque)
22	WPW10534154 Whirlpool Refrigerator Front Grille
23	WP67001098 Whirlpool Refrigerator Tube Cover
24	MAY W10164397
25	Screw (10)
26	67003796 Whirlpool Refrigerator Fiber Acoustic
27	MAY 12479803
28	A3076901 Whirlpool Refrigerator Plug
29	MAY 12479901
30	MAY 67006662
31	Clip, Grille
