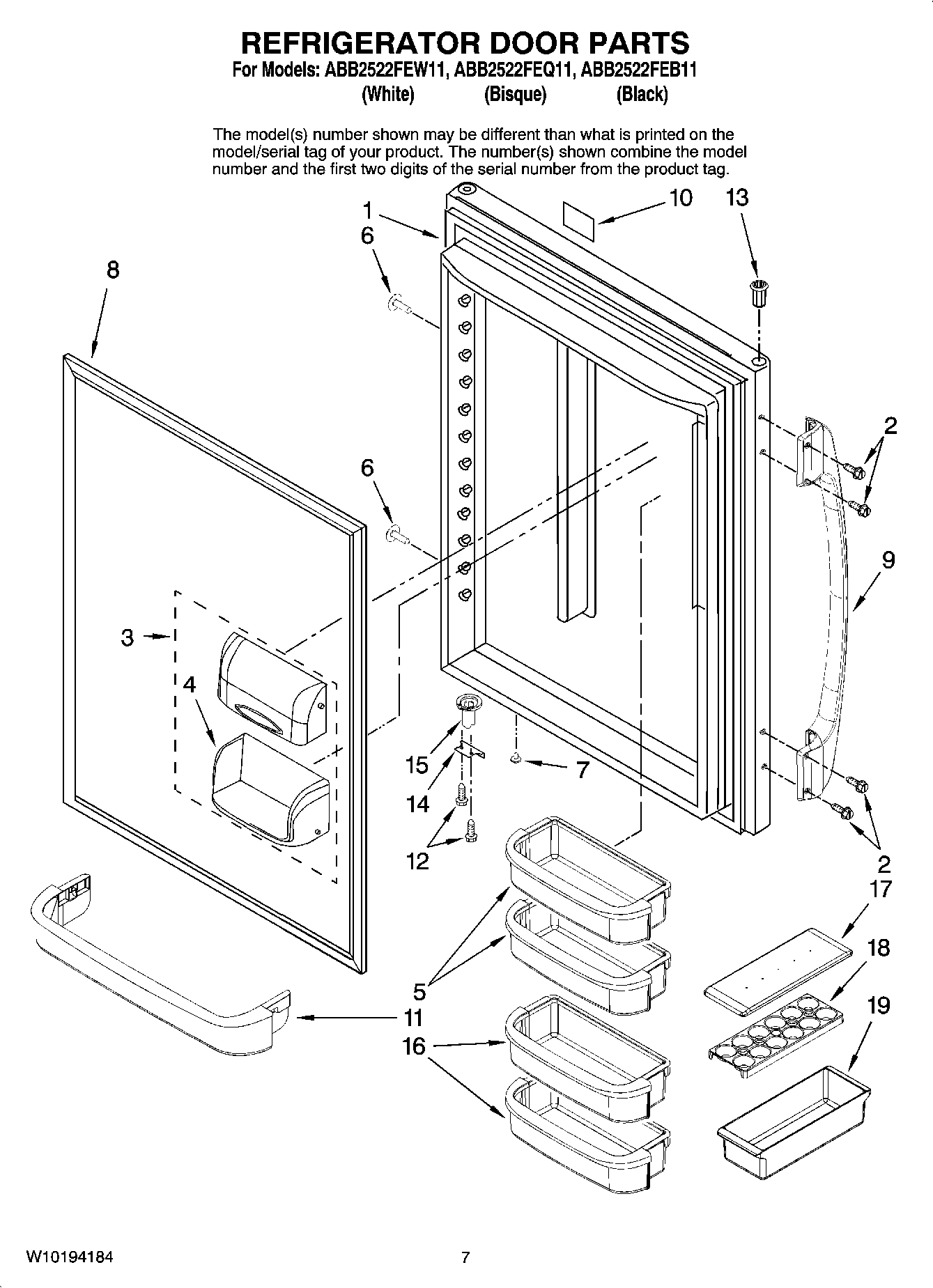

ABB2522FEQ11 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (w/Liner) (Black)
1	MAY 67004415
1	12658531CQ Whirlpool Refrigerator DOR-FIP Board
3	WP12744905 Whirlpool Refrigerator Compressor Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WP67001021 Whirlpool Refrigerator Bucket
6	MAY 12991104
6	MAY 12991103
6	SCREW (BLK)
7	10712401 Whirlpool Refrigerator Vent Plug (White)
7	67004838 Whirlpool Refrigerator Button Vent Plug
8	GASKET, REF DR (WHT)
8	Door Gasket, Magnetic (Black)
9	MAY 67006804
9	MAY 67006721
9	HANDLE, SIDE MOUNT (BLK)
10	STAINLESS
11	Retainer, Ref Door
12	WP98165 Whirlpool Screw
13	67004978 Whirlpool Refrigerator Black Door Bushing
13	WP67004977 Whirlpool Refrigerator Door Hinge Bushing
14	W11708403 Whirlpool Door Stop
14	12968202W Whirlpool Refrigerator Door Stop
14	67003781 Whirlpool Refrigerator Door Stop (BSQ)
15	WP67003638 Whirlpool Closing Cam
15	WP67003639 Whirlpool Refrigerator Closer
16	BUCKET, RC (LARGE-2)
17	MAY 10436404
18	MAY 10436506
19	MAY 10423131
